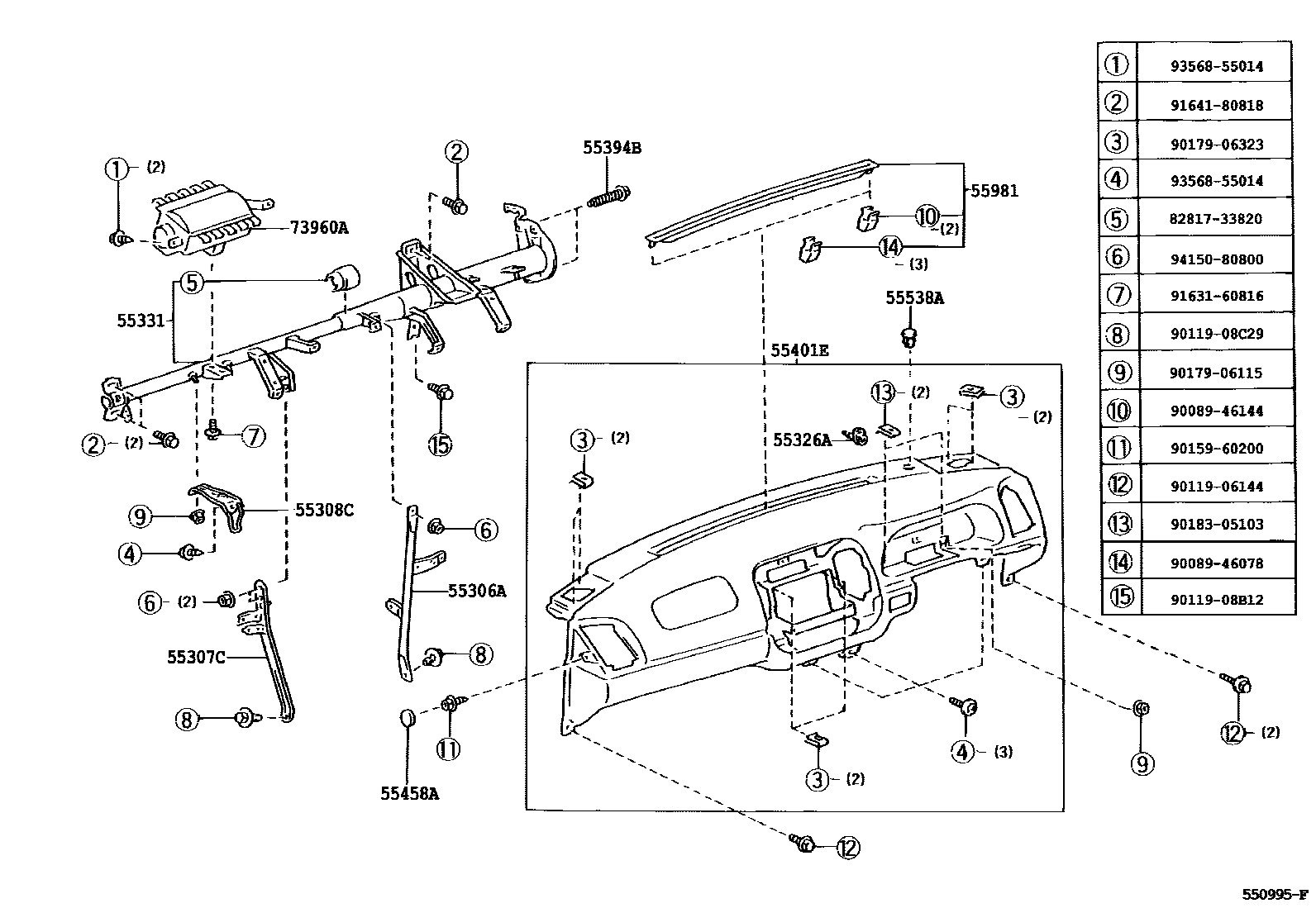

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1DRIVER SIDE 0004 1DRIVER SIDE 0005 1CENTER 0006 1CENTER 0007 1PASSENGER SIDE 0008 1PASSENGER SIDE

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-YC020iACV36,MCV36..GCC200408

main55306-YC030iACV36..ARL;MCV36..ATM..ARL200408

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-YC040iACV36,MCV36..GCC200408

main55307-YC050iMCV36..MTM..ARL200408-200601

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-YC030iACV36,MCV36..GCC200208-200408

main55308-YC040iMCV36..MTM..ARL200408-200601

55326ASTAY, INSTRUMENT PANEL, NO.1

main55328-YC020×2iACV36,MCV36200208-200408

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-YC080iACV36,MCV36..GCC200208-200408

main55330-YC090iMCV36..MTM..ARL200408-200601

55394BBOLT, INSTRUMENT PANEL

main55394-33010×3iMCV36..MTM..ARL200408-200601

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-YC060-B0iACV36,MCV36..ALT,ALTS,ATEVA200208-200408

DK.CHARCOAL/STONE,TRIM1#

main55401-YC060-B1iACV36..SPV;MCV36..MTM..SPV; MCV36..ATM..SPV200208-200408

DK.GRAY/STONE,TRIM1#; DK.GRAY/STONE,TRIM15

main55401-YC060-B2iMCV36..ATM..SPV200408-200606

DK.GRAY/FAWN,TRIM16

main55401-YC060-B3iACV36..SPV;MCV36..MTM..SPV; MCV36..ATM..SPV200408-200606

DK.GRAY,TRIM1#; DK.GRAY,TRIM12

main55401-YC060-E0iACV36,MCV36..ALT,ATEVA200208-200408

SANDAL WOOD/FAWN,TRIM4#

main55401-YC070-B0iACV36,MCV36..GCC200408-200606

W(AIR BAG),DK.CHARCOAL,TRIM1#

main55401-YC070-E0iACV36,MCV36..GCC200208-200408

W(AIR BAG),SANDAL WOOD,TRIM4#

main55401-YC080-B0iACV36,MCV36..GLI,TOU,XLI200208-200408

DK.CHARCOAL,TRIM1#

main55401-YC080-E0iACV36,MCV36..GLI,TOU,XLI200208-200408

SANDAL WOOD,TRIM4#

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-YC040-B0iACV36,MCV36..ALT,ATEVA,GD,GLI,TOU,XLI200408-200606

DK.CHARCOAL,TRIM1#

main55458-YC040-B1iACV36..SPV;MCV36..MTM..SPV; MCV36..ATM..SPV200208-200408

DK.GRAY,TRIM1#; DK.GRAY,TRIM15,16

main55458-YC040-E0iACV36,MCV36..ALT,ATEVA,GD,GLI,TOU,XLI200208-200408

SANDAL WOOD,TRIM4#

55538ACOVER, COOLER SWITCH HOLE

main55538-YC020-B0iACV36,MCV36..ALT,ALTS,ATEVA,GLI,TOU,XLI200208-200408

DK.CHARCOAL,TRIM1#

main55538-YC020-B1iMCV36..ATM..SPV200507-200606

DK.GRAY,TRIM1#

main55538-YC020-E0iACV36,MCV36..ALT,ATEVA,GLI,TOU,XLI200208-200408

SANDAL WOOD,TRIM4#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-YC050-B0iACV36,MCV36..ALT,ATEVA,GD,GLI,TOU,XLI200408-200606

DK.CHARCOAL,TRIM1#

main55981-YC050-B1iACV36..SPV;MCV36..MTM..SPV; MCV36..ATM..SPV200408-200606

DK.GRAY,TRIM1#; DK.GRAY,TRIM12,15,16

main55981-YC050-E0iACV36,MCV36..ALT,ATEVA,GD,GLI,TOU,XLI200208-200408

SANDAL WOOD,TRIM4#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-06070iACV36,MCV36200408

8281733820PROTECTOR, WIRING HARNESS, NO.1

main82817-33820

9008946078

main90089-46078

9008946144

main90089-46144

9011906144

main90119-06144

9011908B12

main90119-08B12

9011908C29

main90119-08C29

9015960200

main90159-60200

9017906115

main90179-06115

9017906323

main90179-06323

9018305103

main90183-05103

9163160816

main91631-60816

9164180818

main91641-80818

9356855014

main93568-55014

9415080800

main94150-80800

25 parts on this diagram · 8 diagrams in section
