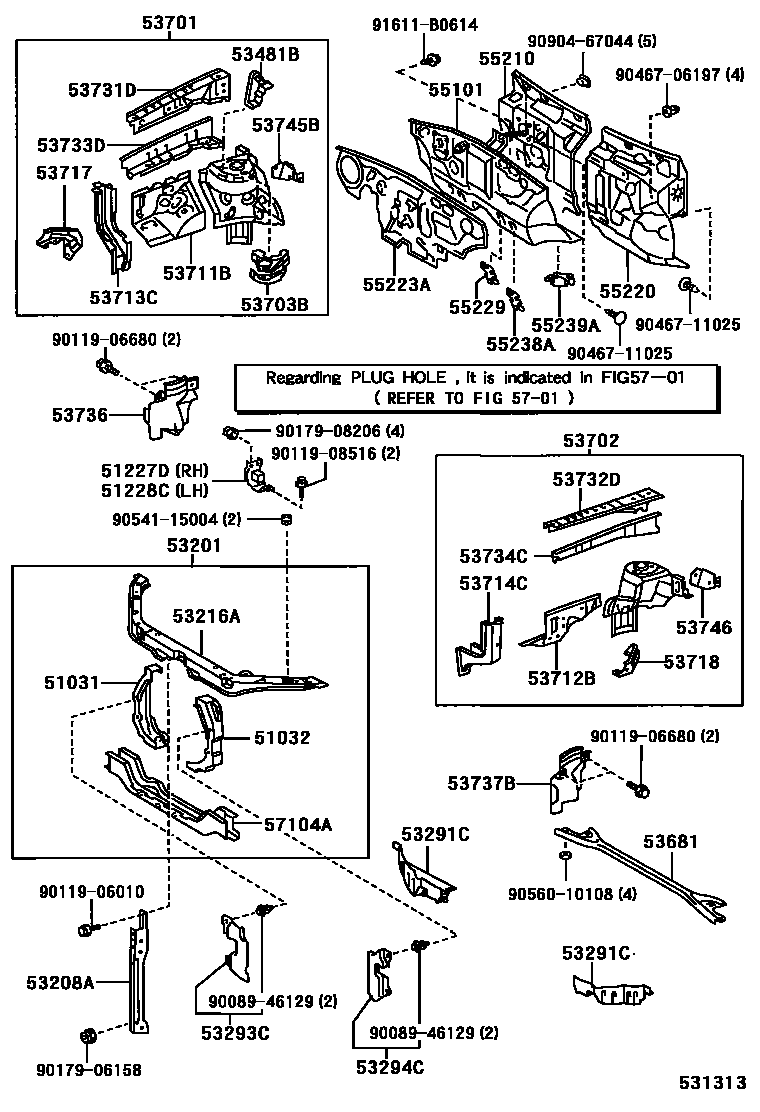

FRONT FENDER APRON & DASH PANEL

51031GUSSET SUB-ASSY, FRONT CROSSMEMBER, RH

main51031-06020iACV36,MCV36200208-200408

51032GUSSET SUB-ASSY, FRONT CROSSMEMBER, LH

main51032-06020iACV36,MCV36200208-200408

51227DWEIGHT, FRONT SUSPENSION MEMBER DAMPER, RH

main51227-33020iMCV36200208-200408

51228CPLATE, FRONT SUSPENSION MEMBER

main51228-33010iMCV36200208-200408

53201SUPPORT SUB-ASSY, RADIATOR

main53201-06900iACV36,MCV36200208-200408

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53215-06041iACV36,MCV36200208-200408

53216ASUPPORT, RADIATOR, UPPER

main53216-06050iACV36,MCV36200208-200408

53291CSEAL, RADIATOR SUPPORT TO FRAME

main53291-YC010iACV36,MCV36200208-200408

RH

main53292-YC020iACV36,MCV36200208-200408

LH

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-YC020iACV36,MCV36200208-200408

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-YC030iACV36,MCV36200208-200408

53481BBRACKET, HOOD SUPPORT, RH

main53481-06020iACV36,MCV36200408

53681BRACE, FRONT SUSPENSION, UPPER CENTER

main53681-33040iACV36,MCV36..ALTS,GD,GLI,SPV,TOU,XLI200208-200408

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-06080iACV36,MCV36200208-200408

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-06070iACV36,MCV36200208-200408

53703BRETAINER SUB-ASSY, FENDER APRON, RH

main53703-33010iACV36,MCV36200208-200408

53711BAPRON, FRONT FENDER, FRONT RH

main53711-06060iACV36,MCV36200208-200408

53712BAPRON, FRONT FENDER, FRONT LH

main53712-06030iACV36,MCV36200208-200408

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-06020iACV36,MCV36200208-200408

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-06020iACV36,MCV36200208-200408

53717PLATE, FENDER APRON, RH

main53717-33040iACV36,MCV36200208-200408

53718PLATE, FENDER APRON, LH

main53718-33030iACV36,MCV36200208-200408

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-06070iACV36,MCV36200208-200408

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-06060iACV36,MCV36200208-200408

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-06030iACV36,MCV36200208-200408

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-06030iACV36,MCV36200208-200408

53736SEAL, FRONT FENDER APRON, RH

main53736-YC020iMCV36..MTM..ARL200408-200601

main53736-YC030iACV36200408

53737BSEAL, FRONT FENDER APRON, LH

main53737-YC010iMCV36200208-200402

main53737-YC011iMCV36..ATM;MCV36..MTM..GCC200408

main53737-YC030iACV36200208-200408

53745BREINFORCEMENT, FRONT FENDER APRON, REAR RH

main53745-06020iACV36,MCV36200208-200408

53746REINFORCEMENT, FRONT FENDER APRON, REAR LH

main53746-06020iACV36,MCV36200208-200408

55101PANEL SUB-ASSY, DASH

main55101-06240iACV36..ATEVA; ACV36..ATM..(ALT,ATEVA)200601-200606

PAPUA NEW GUINEA SPEC OR FIJI SPEC; SOUTH AFLICA SPEC

main55101-06250iACV36..MTM..ALT200601-200606

SOUTH AFLICA SPEC

main55101-06260iACV36,MCV36..ATM..GCC200408-200606

main55101-06270iACV36,MCV36..MTM..GCC200408-200606

main55101-06290iACV36..ATM..ARL200601-200606

main55101-06400iACV36..MTM..ARL200601-200606

55210INSULATOR ASSY, DASH PANEL

main55210-YC040iACV36,MCV36..ARL200208-200408

main55210-YC050iACV36,MCV36..GCC200208-200408

main55210-YC060iACV36..ARL200601

55220INSULATOR ASSY, DASH PANEL, NO.2

main55220-YC010iMCV36..MTM..ARL200408-200601

main55220-YC020iACV36,MCV36..GCC200408

55223AINSULATOR, DASH PANEL, OUTER

main55223-YC020iACV36..MTM..GCC200208-200408

main55223-YC030iACV36..MTM..ARL200208-200408

main55223-YC040iMCV36..GCC;ACV36..ATM..GCC200208-200408

55229PLATE, DASH PANEL INSULATOR, NO.4

main55229-06010iACV36,MCV36200408-200606

55238APLATE, DASH PANEL INSULATOR, NO.2

main55238-06040×3iACV36,MCV36200208-200408

55239APLATE, DASH PANEL INSULATOR, NO.3

main55239-06010×2iACV36,MCV36200208-200408

5701HOLE PLUG

→ Go to FIG 57-01

57104AMEMBER SUB-ASSY, FRONT CROSS

main57161-06020iACV36,MCV36200208-200408

9008946129

main90089-46129

9011906010

main90119-06010

9011906680

main90119-06680

9011908516

main90119-08516

9017906158

main90179-06158

9017908206

main90179-08206

9046706197

main90467-06197

9046711025

main90467-11025

9054115004

main90541-15004

9056010108

main90560-10108

9090467044

main90904-67044

91611B0614

main91611-B0614

50 parts on this diagram · 1 diagram in section
