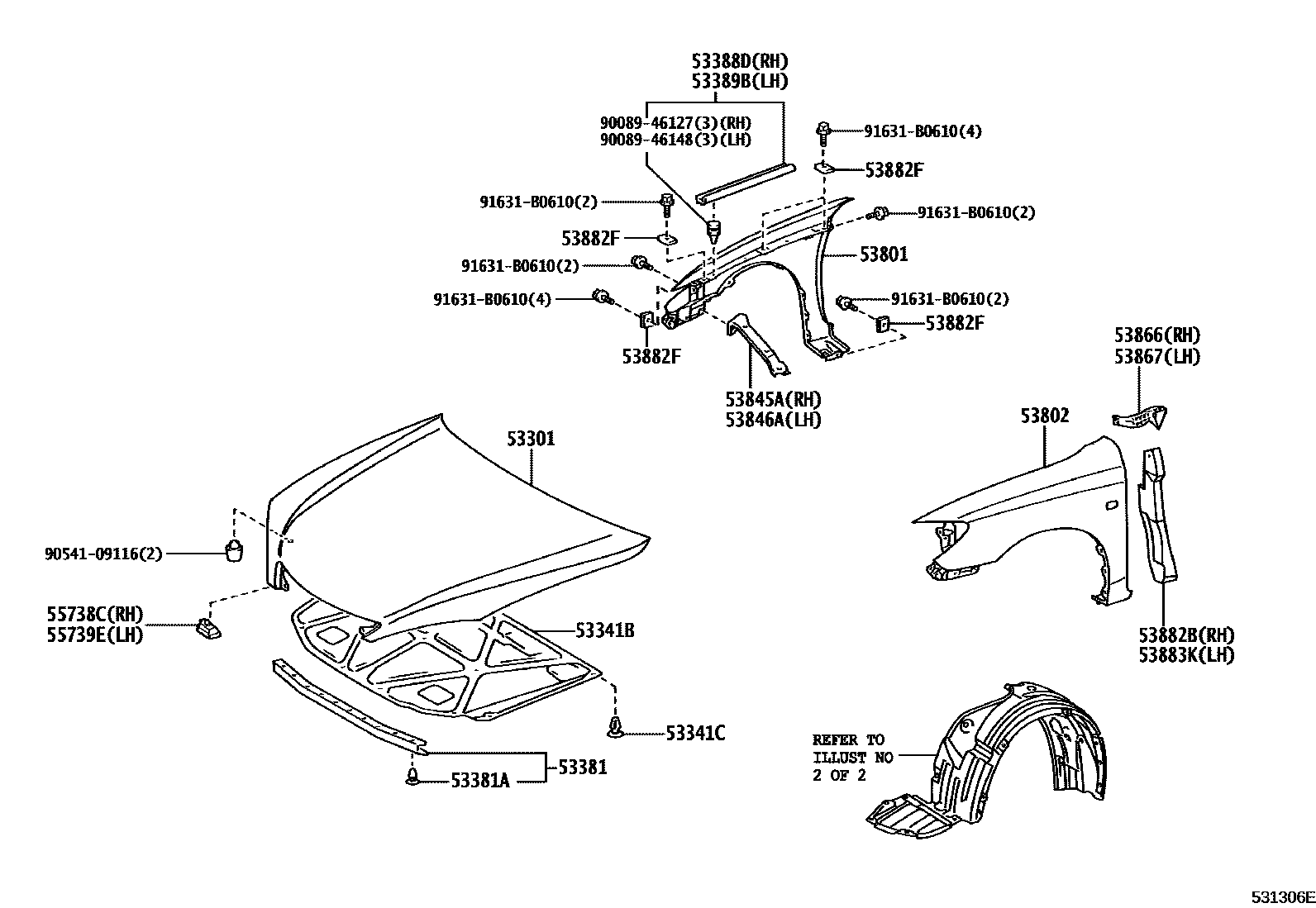

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-06050iACV36,MCV36200208-200408

53341BINSULATOR, HOOD

main53341-YC040iACV36..MTM200408

main53341-YC050iMCV36..MTM..GCC;ACV36,MCV36..ATM200408

53341CCLIP(FOR HOOD INSULATOR)

main90089-46043×13iACV36,MCV36200208-200408

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-YC030iACV36,MCV36200208-200408

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90089-46127×9iACV36;MCV36..ATM;MCV36..MTM..GCC200408

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-YC010iACV36,MCV36200208-200408

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-YC010iACV36,MCV36200208-200408

53801FENDER SUB-ASSY, FRONT RH

main53801-06090iACV36,MCV36200208-200408

53802FENDER SUB-ASSY, FRONT LH

main53802-06090iACV36,MCV36200208-200408

53845ABRACE, FRONT WHEEL OPENING APRON, RH

main53845-06020iACV36,MCV36200208-200408

53846ABRACE, FRONT WHEEL OPENING APRON, LH

main53846-06020iACV36,MCV36200208-200408

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-YC020iACV36,MCV36200208-200408

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-YC020iACV36,MCV36200208-200408

53882BSEAL, FRONT FENDER, RH

main53882-YC010iACV36,MCV36200208-200408

53882FSEAL, FRONT FENDER

main53882-16030×10iACV36,MCV36200208-200408

53883KSEAL, FRONT FENDER, LH

main53883-YC010iACV36,MCV36200208-200408

55738CSTOPPER, HOOD, RH

main55738-33020iACV36,MCV36200208-200408

55739ESTOPPER, HOOD, LH

main55739-33020iACV36,MCV36200208-200408

9008946127

main90089-46127

9008946148

main90089-46148

9054109116

main90541-09116

91631B0610

main91631-B0610

22 parts on this diagram · 2 diagrams in section
