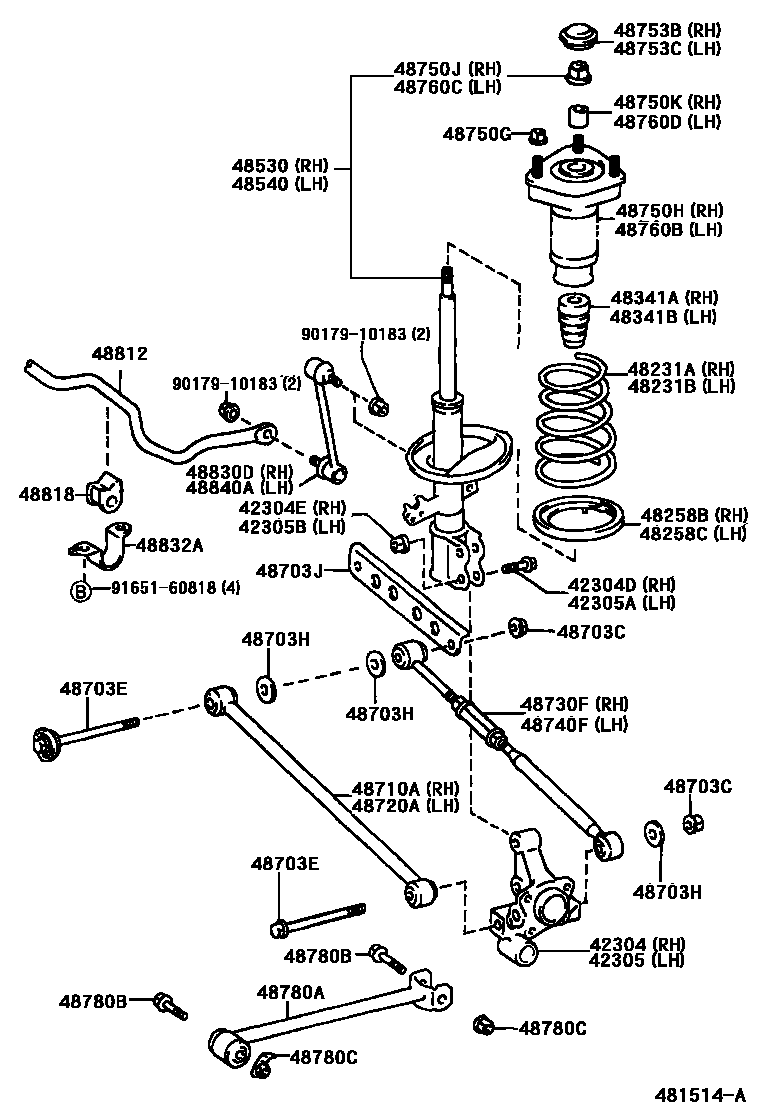

REAR SPRING & SHOCK ABSORBER

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-06030iACV36;MCV36..ALT,ALTS,GD,TOU200208-200408

main42304-06040iACV36;MCV36..ATM;MCV36..MTM..GCC200408

W(ABS)

42304DBOLT (FOR REAR AXLE CARRIER RH)

main90901-05001×2iMCV36..MTM..ARL200408-200601

42304ENUT (FOR REAR AXLE CARRIER RH)

main90178-15001×2iACV36,MCV36200208-200408

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-06030iMCV36..GCC;ACV36..ALT,GLI,SPV,XLI200408

main42305-06040iMCV36..MTM..ARL200408-200601

W(ABS)

42305ABOLT (FOR REAR AXLE CARRIER LH)

main90901-05001×2iACV36,MCV36200208-200408

42305BNUT (FOR REAR AXLE CARRIER LH)

main90178-15001×2iACV36,MCV36200208-200408

48231ASPRING, COIL, REAR RH

main48231-06170iACV36,MCV36..ATEVA200208-200408

main48231-06340iACV36,MCV36..ALT; ACV36,MCV36..ATEVA200208-200408

W(ABS)

main48231-06350iACV36..SPV;MCV36..ATM..SPV200408

main48231-06360iACV36,MCV36..GCC200408

48231BSPRING, COIL, REAR LH

main48231-06170iACV36,MCV36..ATEVA200208-200408

main48231-06340iACV36..ALT,ATEVA;MCV36..ATM..(ALT,ATEVA,GD)..ARL; MCV36..ATM..SPV200408

SOUTH AFRICA SPEC

main48231-06350iACV36,MCV36..ALTS,SPV200208-200408

main48231-06360iACV36,MCV36..GCC200208-200408

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-06020iACV36,MCV36200208-200408

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-06020iACV36,MCV36200208-200408

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-32053iACV36,MCV36200208-200408

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-32053iACV36,MCV36200208-200408

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-09760iACV36,MCV36..(ALT,ATEVA,GD)..ARL200408-200606

MARK 48530-06280

main48530-09770iACV36,MCV36..ALTS,SPV200208-200408

MARK 48530-06290

main48530-09800iACV36..ALT,ATEVA200208-200408

MARK 48530-06300,SOUTH AFRICA SPEC

main48530-09810iMCV36..ATM..SPV200208-200408

MARK 48530-06310,SOUTH AFRICA SPEC

main48530-09A70iACV36,MCV36..GCC200408-200505

MARK 48530-06320

main48530-09G80iACV36,MCV36..GCC200505-200606

MARK 48530-06450

main48530-39875iACV36,MCV36..GCC200208-200401

MARK 48530-30400

48540ABSORBER ASSY, SHOCK, REAR LH

main48540-09420iACV36,MCV36..ALT,ATEVA200208-200401

MARK 48540-06280

main48540-09430iACV36,MCV36..ALTS,SPV200208-200401

MARK 48540-06290

main48540-09440iACV36..ALT,ATEVA200208-200401

MARK 48540-06300,SOUTH AFRICA SPEC

main48540-09450iMCV36..ATM..SPV200208-200401

MARK 48540-06310,SOUTH AFRICA SPEC

main48540-09480iACV36,MCV36..GCC200408-200505

MARK 48540-06320

main48540-09490iACV36,MCV36..ALT,ATEVA200401-200408

MARK 48540-06280

main48540-09500iACV36..ALT,ATEVA200401-200408

MARK 48540-06300

main48540-09510iACV36,MCV36..SPV200408-200606

MARK 48540-06290

main48540-09520iMCV36..ATM..SPV200401-200408

MARK 48540-06310

main48540-09630iACV36,MCV36..GCC200505-200606

MARK 48540-06450

main48540-39435iACV36,MCV36..GCC200208-200401

MARK 48540-33320

48703CNUT(FOR REAR SUSPENSION ARM)

main90179-14019×4iACV36,MCV36200208-200408

48703EBOLT(FOR REAR SUSPENSION ARM)

main90901-09001×2iACV36;MCV36..ATM;MCV36..MTM..GCC200408

*14-1.50PX260-26,BODY SIDE

main90901-19001×2iMCV36..MTM..ARL200408-200601

*14-1.50PX260-26,CARRIER SIDE

48703HWASHER, NO.1(FOR REAR SUSPENSION ARM)

main90201-14017×6iACV36,MCV36200208-200408

48703JWASHER, NO.2(FOR REAR SUSPENSION ARM)

main48715-06020iACV36,MCV36200208-200408

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-06030iACV36,MCV36200208-200408

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-06030iMCV36..MTM..ARL200408-200601

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-06030iACV36,MCV36200208-200408

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48740-06020iACV36,MCV36200208-200408

48750GNUT(FOR REAR SUSPENSION SUPPORT)

main90178-08007×6iACV36,MCV36200208-200408

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-06080iACV36,MCV36200208-200408

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main94182-11400iACV36,MCV36200208-200408

48750KCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90387-15027iACV36,MCV36200208-200408

48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH

main48753-06020iACV36,MCV36200208-200408

48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH

main48753-06020iACV36,MCV36200208-200408

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48760-06080iMCV36..MTM..ARL200408-200601

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main94182-11400iACV36,MCV36200208-200408

48760DCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90387-15027iACV36,MCV36200208-200408

48780AROD ASSY, STRUT, REAR

main48780-YC010×2iMCV36..MTM..ARL200408-200601

48780BBOLT(FOR STRUT ROD)

main90119-12131×4iACV36;MCV36..ATM;MCV36..MTM..GCC200408

48780CNUT(FOR STRUT ROD)

main90179-12063×2iACV36;MCV36..ATM;MCV36..MTM..GCC200408

BODY SIDE

main90179-12091×2iACV36;MCV36..ATM;MCV36..MTM..GCC200408

CARRIER SIDE

48812BAR, STABILIZER, REAR

main48812-AA010iACV36,MCV36..GCC200408

PINK PAINTED

main48812-YC041iACV36,MCV36..GCC200303-200408

WHITE PAINTED

main48812-YC051iMCV36..MTM..ARL200408-200601

48818BUSH, STABILIZER, REAR

main48818-06100×2iACV36,MCV36..GCC200208-200408

main48818-06110×2iACV36..ARL;MCV36..ATM..ARL200408

48830DLINK ASSY, REAR STABILIZER, RH

main48830-33010iACV36,MCV36200208-200408

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-06040×2iACV36,MCV36200208-200408

48840ALINK ASSY, REAR STABILIZER, LH

main48830-33010iACV36,MCV36200208-200408

9017910183

main90179-10183

9165160818

main91651-60818

41 parts on this diagram · 1 diagram in section
