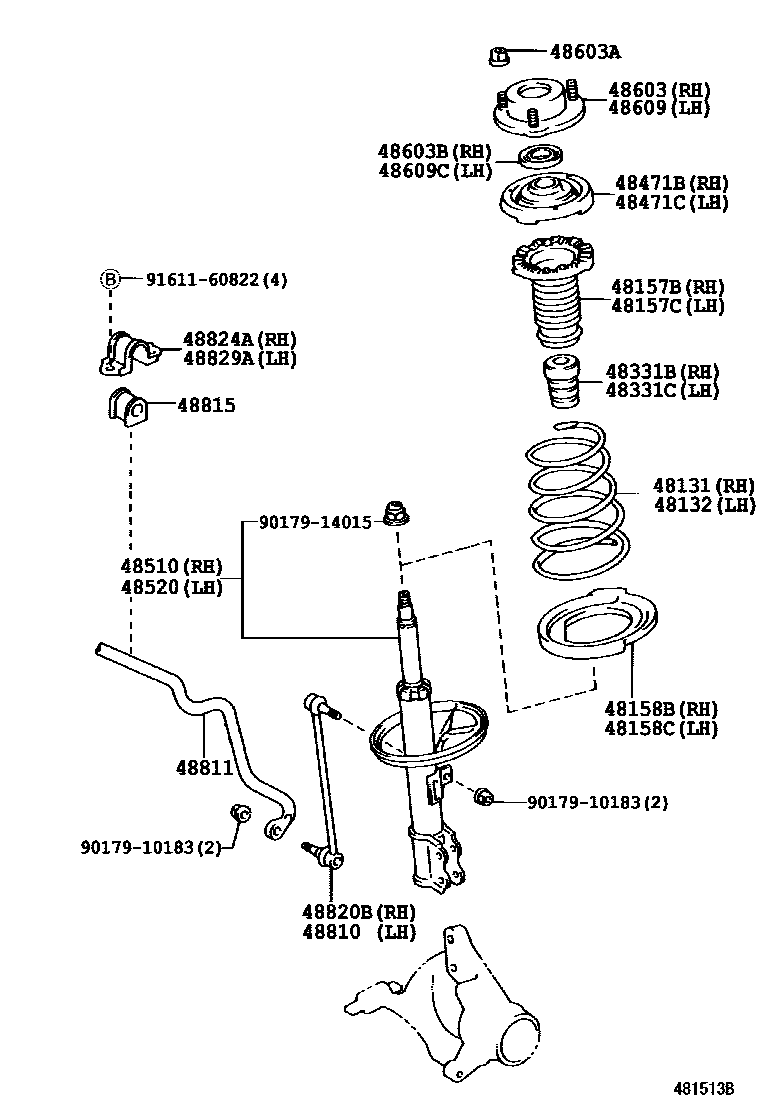

FRONT SPRING & SHOCK ABSORBER

48131SPRING, FRONT COIL, RH

main48131-06450iACV36..ATM..(ALT,ATEVA)200408

main48131-06460iMCV36..MTM..ALT200408-200601

main48131-06490iACV36..ATEVA; MCV36..ATM..(ALT,ATEVA,GD)..ARL; MCV36..ATM..SPV200408

PAPUA NEW GUINEA SPEC OR FIJI SPEC; SOUTH AFRICA SPEC

main48131-06590iMCV36..MTM..GCC200208-200408

main48131-06600iMCV36..ATM..GCC200208-200408

main48131-06640iMCV36..ATEVA200408

PAPUA NEW GUINEA SPEC OR FIJI SPEC

main48131-06680iACV36..MTM..GCC200408

main48131-06690iACV36..ATM..GCC200208-200408

main48131-06820iACV36..MTM..ALT200408

main48131-06840iACV36..SPV200408

main48131-06850iMCV36..ATM..SPV200408

48132SPRING, FRONT COIL, LH

main48131-06450iACV36..ATM..(ALT,ATEVA)200208-200408

L=370

main48131-06460iMCV36..MTM..ALT200408-200601

main48131-06490iACV36..ATEVA; MCV36..ATM..(ALT,ATEVA,GD)..ARL; MCV36..ATM..SPV200408

PAPUA NEW GUINEA SPEC OR FIJI SPEC; SOUTH AFRICA SPEC

main48131-06590iMCV36..MTM..GCC200208-200408

main48131-06600iMCV36..ATM..GCC200408

main48131-06640iMCV36..ATEVA200208-200408

L=382

main48131-06680iACV36..MTM..GCC200408

main48131-06690iACV36..ATM..GCC200408

main48131-06820iACV36..MTM..ALT200408

main48131-06840iACV36..SPV200408

main48131-06850iMCV36..ATM..SPV200408

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-06070iACV36;MCV36..ATM;MCV36..MTM..GCC200408

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-06070iACV36,MCV36200208-200408

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-06040iACV36,MCV36200208-200408

main48158-06060iACV36;MCV36..ATM;MCV36..MTM..GCC200601

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-06040iACV36,MCV36200208-200408

main48158-06060iACV36;MCV36..ATM;MCV36..MTM..GCC200601

48331BBUMPER, FRONT SPRING, RH

main48331-33020iMCV36..GD..GCC;ACV36,MCV36..ALT,ALTS,ATEVA,GLI,SPV,TOU,XLI200208-200305

main48331-33021iACV36,MCV36200305-200408

48331CBUMPER, FRONT SPRING, LH

main48331-33020iMCV36..GD..GCC;ACV36,MCV36..ALT,ALTS,ATEVA,GLI,SPV,TOU,XLI200208-200305

main48331-33021iACV36,MCV36200305-200408

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48471-06020iACV36,MCV36200208-200408

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48471-06020iACV36,MCV36200208-200408

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-09870iACV36,MCV36..ALT,ATEVA200208-200408

MARK 48510-06360

main48510-09880iACV36,MCV36..ALTS,SPV200208-200408

MARK 48510-06370

main48510-09B10iACV36,MCV36..GCC200408-200505

MARK 48510-06380

main48510-09M20iACV36,MCV36..GCC200505-200606

MARK 4851006570

main48510-80080iACV36,MCV36..GCC200208-200401

MARK 48510-33460

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-09720iACV36,MCV36..ALT,ATEVA200208-200408

MARK 48520-06360

main48520-09730iACV36,MCV36..SPV200408-200606

MARK 48520-06370

main48520-09A40iACV36,MCV36..GCC200408-200505

MARK 48520-06380

main48520-09E70iACV36,MCV36..GCC200505-200606

MARK 48520-06570

main48520-39515iACV36,MCV36..GCC200208-200401

MARK 48520-33460

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48603-06040iACV36,MCV36..GCC200208-200304

main48603-06041iACV36,MCV36200304-200408

main48603-33050iACV36,MCV36..ARL200208-200304

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10008×6iMCV36..MTM..ALT200408-200601

main90179-10095×6iACV36,MCV36..ALTS,SPV; ACV36,MCV36..GCC200208-200408

48603BBEARING(FOR FRONT SUSPENSION SUPPORT RH)

main90903-63014iACV36,MCV36200208-200408

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-06110iACV36,MCV36..GCC200208-200304

main48609-06111iACV36;MCV36..ATM;MCV36..MTM..GCC200408

main48609-33180iACV36,MCV36..ARL200208-200304

48609CBEARING(FOR FRONT SUSPENSION SUPPORT LH)

main90903-63014iACV36,MCV36200208-200408

48810LINK ASSY, FRONT STABILIZER, LH

main48810-33010iACV36,MCV36200208-200408

48811BAR, STABILIZER, FRONT

main48811-06130iACV36,MCV36200208-200408

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-06070×2iACV36,MCV36200208-200408

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-33020iACV36,MCV36200208-200408

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-06050iACV36,MCV36200208-200408

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-06050iMCV36..MTM..ARL200408-200601

9017910183

main90179-10183

9017914015

main90179-14015

9161160822

main91611-60822

26 parts on this diagram · 1 diagram in section
