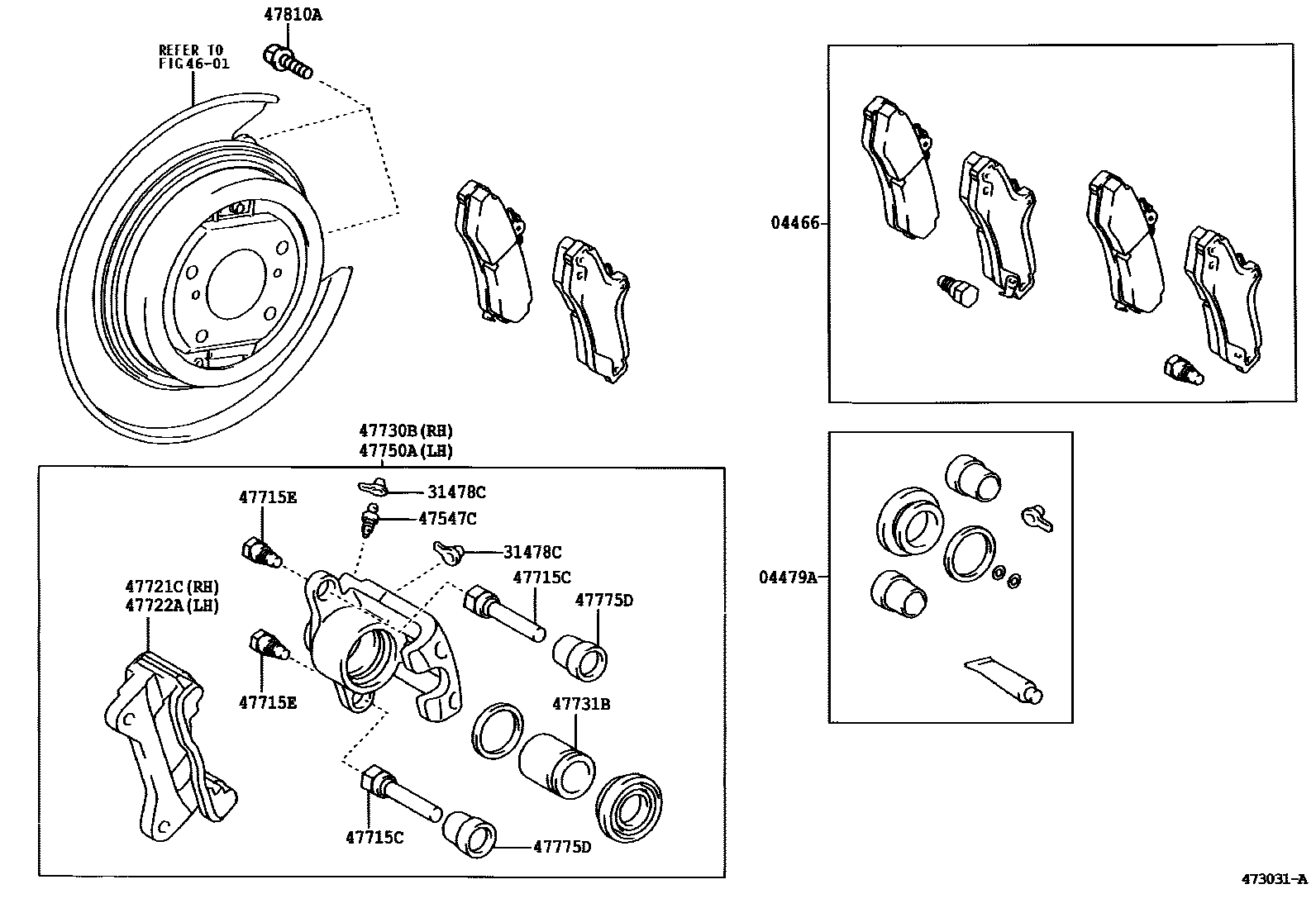

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1 0003 1SOUTH AFRICA SPEC

04466PAD KIT, DISC BRAKE, REAR

main04466-06020iACV36,MCV36..ARL200408-200606

main04466-32030iACV36,MCV36..GCC; MCV36..ATM..SPV;ACV36..ALT,ATEVA200208-200408

MARK AK PA544; MARK AK PA544,SOUTH AFRICA SPEC

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-06121iACV36,MCV36..ARL200408-200606

main04479-33200iACV36,MCV36..GCC; MCV36..ATM..SPV;ACV36..ALT,ATEVA200408-200606

SOUTH AFRICA SPEC

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010×2iACV36,MCV36..GCC; MCV36..ATM..SPV;ACV36..ALT,ATEVA200408

SOUTH AFRICA SPEC

main47548-06020×4iACV36,MCV36..ARL200208-200408

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-06030×2iACV36,MCV36..ARL200208-200408

main47547-20010×2iACV36,MCV36..GCC; MCV36..ATM..SPV;ACV36..ALT,ATEVA200208-200408

SOUTH AFRICA SPEC

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-06140×4iACV36,MCV36..ARL200408

main47715-32020×2iACV36,MCV36..GCC; MCV36..ATM..SPV;ACV36..ALT,ATEVA200208-200408

SOUTH AFRICA SPEC,SUB; SUB

main47715-32030×2iACV36,MCV36..GCC; MCV36..ATM..SPV;ACV36..ALT,ATEVA200408-200606

MAIN; SOUTH AFRICA SPEC,MAIN

47715EBOLT(FOR REAR DISC BRAKE CYLINDER SLIDE)

main47715-06150×4iACV36,MCV36..ARL200408

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-06130iACV36,MCV36..ARL200408

main47721-33110iACV36,MCV36..GCC; MCV36..ATM..SPV;ACV36..ALT,ATEVA200208-200408

SOUTH AFRICA SPEC

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-06130iACV36,MCV36..ARL200408

main47722-33110iACV36,MCV36..GCC; MCV36..ATM..SPV;ACV36..ALT,ATEVA200408

SOUTH AFRICA SPEC

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-06130iACV36,MCV36..ARL200208-200408

main47730-33160iACV36,MCV36..GCC; MCV36..ATM..SPV;ACV36..ALT,ATEVA200208-200408

SOUTH AFRICA SPEC

47731BPISTON, REAR DISC BRAKE

main47731-06070×2iACV36,MCV36..ARL200208-200408

main47731-33040×2iACV36,MCV36..GCC; MCV36..ATM..SPV;ACV36..ALT,ATEVA200208-200408

SOUTH AFRICA SPEC

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-06130iACV36,MCV36..ARL200408

main47750-33160iACV36,MCV36..GCC; MCV36..ATM..SPV;ACV36..ALT,ATEVA200208-200408

SOUTH AFRICA SPEC

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-06050×4iACV36,MCV36..ARL200208-200408

main47775-32050×2iACV36,MCV36..GCC; MCV36..ATM..SPV;ACV36..ALT,ATEVA200208-200408

SOUTH AFRICA SPEC

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-10445×4iACV36,MCV36..ARL200408-200606

main90119-10939×4iACV36,MCV36..GCC; MCV36..ATM..SPV;ACV36..ALT,ATEVA200408-200606

SOUTH AFRICA SPEC

14 parts on this diagram · 3 diagrams in section
