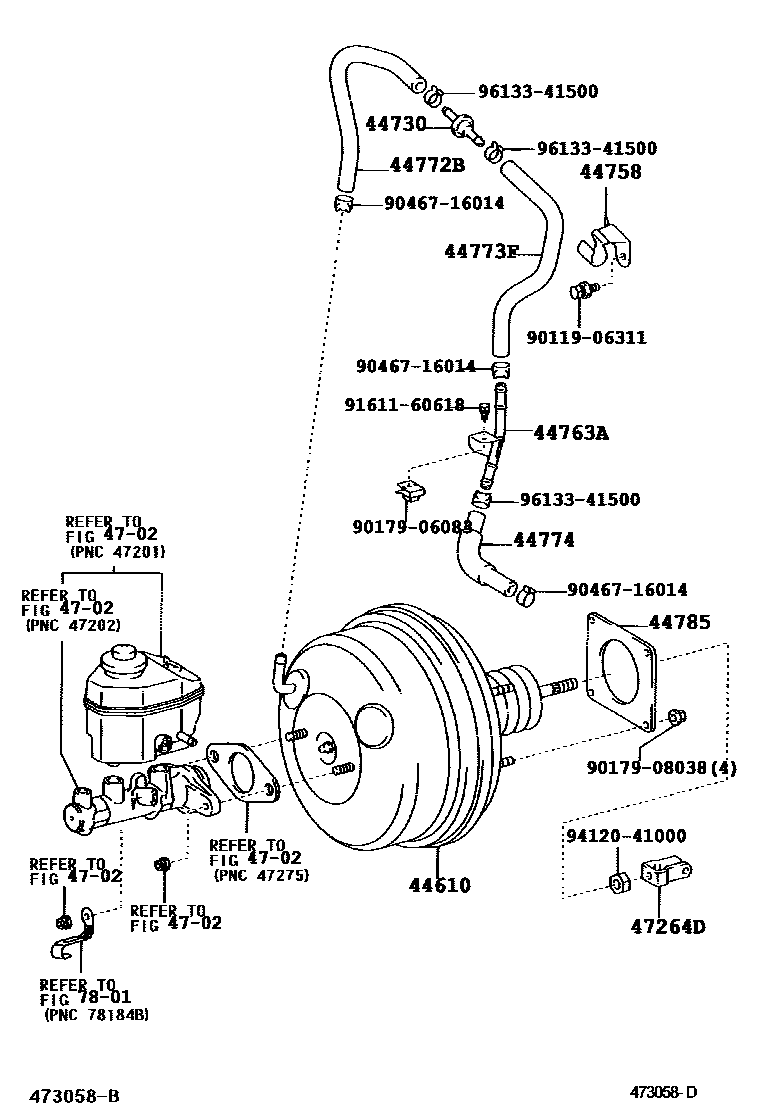

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1

44610BOOSTER ASSY, BRAKE

main44610-06220iACV36,MCV36..GCC200208-200408

main44610-06250iMCV36..MTM..ARL200509-200601

main44610-06270iMCV36..ATM..SPV;ACV36..ALT,ATEVA200408

SOUTH AFRICA SPEC & W(ABS)

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10010iACV36,MCV36200408

44758BRACKET, VACUUM CHECK VALVE

main44758-33130iACV36,MCV36..ARL200208-200408

44763ATUBE, HOSE TO HOSE, NO.1

main44763-06050iACV36..ARL200208-200408

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-06110iACV36..GCC200208-200408

44772BHOSE, CHECK VALVE TO BRAKE BOOSTER

main44772-06080iACV36,MCV36..GCC200408

main44772-06090iACV36,MCV36..ARL200208-200408

44773FHOSE, UNION TO CHECK VALVE

main44773-06050iMCV36..GCC200408

main44773-06060iMCV36..ARL200408

main44773-06070iACV36..ARL200208-200408

44774HOSE, UNION TO CONNECTOR TUBE

main44774-06050iACV36..GCC200408

main44774-06060iACV36..ARL200408

44785GASKET, BRAKE BOOSTER

main44785-YA020iACV36,MCV36200408

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-12060iACV36,MCV36..GCC200208-200408

main47264-63020iACV36,MCV36..ARL200208-200408

7801ACCELERATOR LINK

→ Go to FIG 78-01

9011906311

main90119-06311

9017906083

main90179-06083

9017908038

main90179-08038

9046716014

main90467-16014

9161160618

main91611-60618

9412041000

main94120-41000

9613341500

main96133-41500
