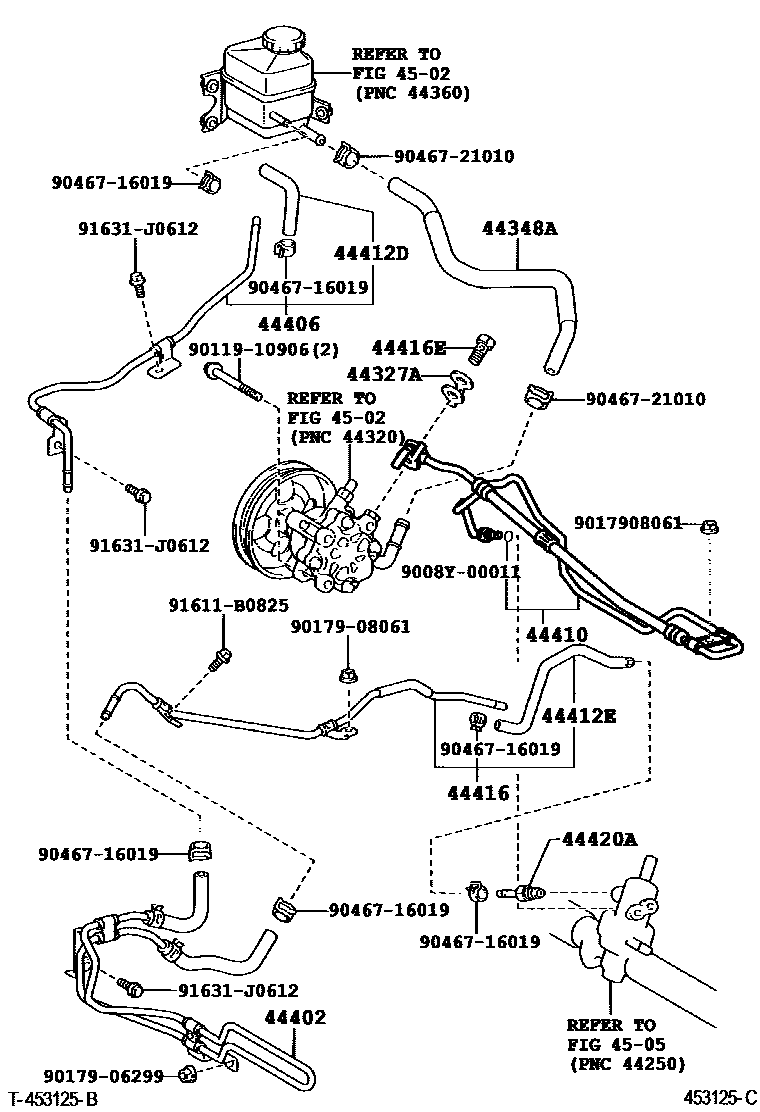

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iMCV36..MTM..ARL200408-200601

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-06210iACV36..ARL200408

main44348-06220iACV36..GCC200408

main44348-06230iMCV36..MTM..ARL200408-200601

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-06060iACV36,MCV36200208-200408

44406TUBE SUB-ASSY, RETURN

main44406-06140iACV36,MCV36200208-200408

44410TUBE ASSY, PRESSURE FEED

main44410-06180iACV36..ARL200208-200408

main44410-06190iACV36..GCC200208-200408

main44410-06200iMCV36..ARL200208-200408

main44410-06210iMCV36..GCC200208-200408

44412DHOSE, RETURN, NO.1

main44412-8Y005iACV36;MCV36..ATM;MCV36..MTM..GCC200408

44412EHOSE, RETURN, NO.2

main44412-8Y001iMCV36..GCC200408

main44412-8Y002iMCV36..ARL200208-200408

main44412-8Y003iACV36..ARL200208-200408

main44412-8Y004iACV36..GCC200408

44416TUBE, RETURN(FOR STEERING GEAR OUTLET)

main44416-06090iMCV36..GCC200408

main44416-06110iACV36..ARL200208-200408

main44416-06140iACV36..GCC200208-200408

main44416-07050iMCV36..ATM..ARL200408

44416EBOLT, UNION(FOR RETURN TUBE)

main96341-41603iACV36200408

44420ATUBE ASSY, RETURN

main44420-06010iACV36,MCV36..ARL200208-200408

4502VANE PUMP & RESERVOIR (POWER STEERING)

→ Go to FIG 45-02

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

9008Y00011

main9008Y-00011

9011910906

main90119-10906

9017906299

main90179-06299

9017908061

main90179-08061

9046716019

main90467-16019

9046721010

main90467-21010

91611B0825

main91611-B0825

91631J0612

main91631-J0612

20 parts on this diagram · 4 diagrams in section
