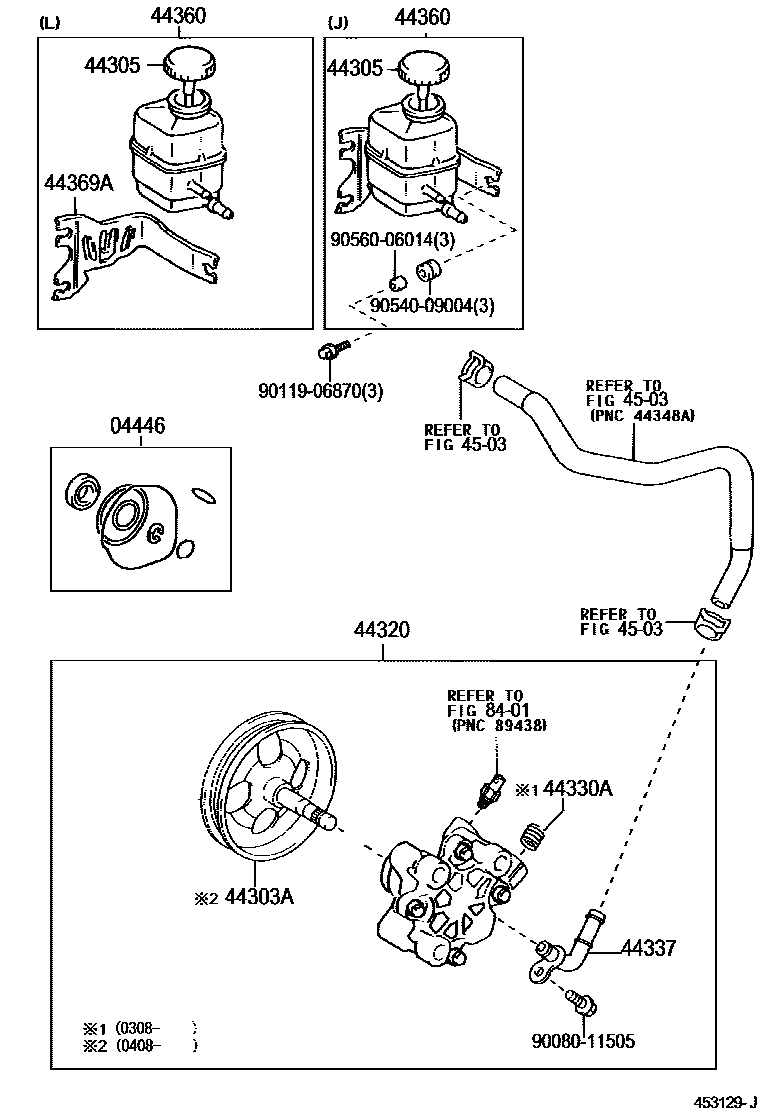

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-06060iACV36200408-200606

main04446-06070iMCV36200208-200311

main04446-0B030iMCV36200311-200408

44303ASHAFT SUB-ASSY, W/PULLEY

main44303-06040iACV36200408

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-06030iACV36;MCV36..ATM;MCV36..MTM..GCC200408

(L)

sub44305-06050

main44305-32020iACV36;MCV36..ATM;MCV36..MTM..GCC200408

(J)

sub44305-32040

44320PUMP ASSY, VANE

main44310-06130iACV36200208-200408

main44320-06080iMCV36200208-200408

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-T0001iACV36200408

44337UNION, POWER STEERING SUCTION PORT

main44337-06030iMCV36..MTM..ARL200408-200601

main44337-06060iACV36200208-200408

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-06010iACV36,MCV36200208-200408

(L)

main44360-33020iACV36,MCV36200208-200408

(J)

44369ABRACKET, OIL RESERVOIR, NO.1

main44390-06010iACV36,MCV36200208-200408

4503

8401

9008011505

main90080-11505

9011906870

main90119-06870

9054009004

main90540-09004

9056006014

main90560-06014

14 parts on this diagram · 2 diagrams in section
