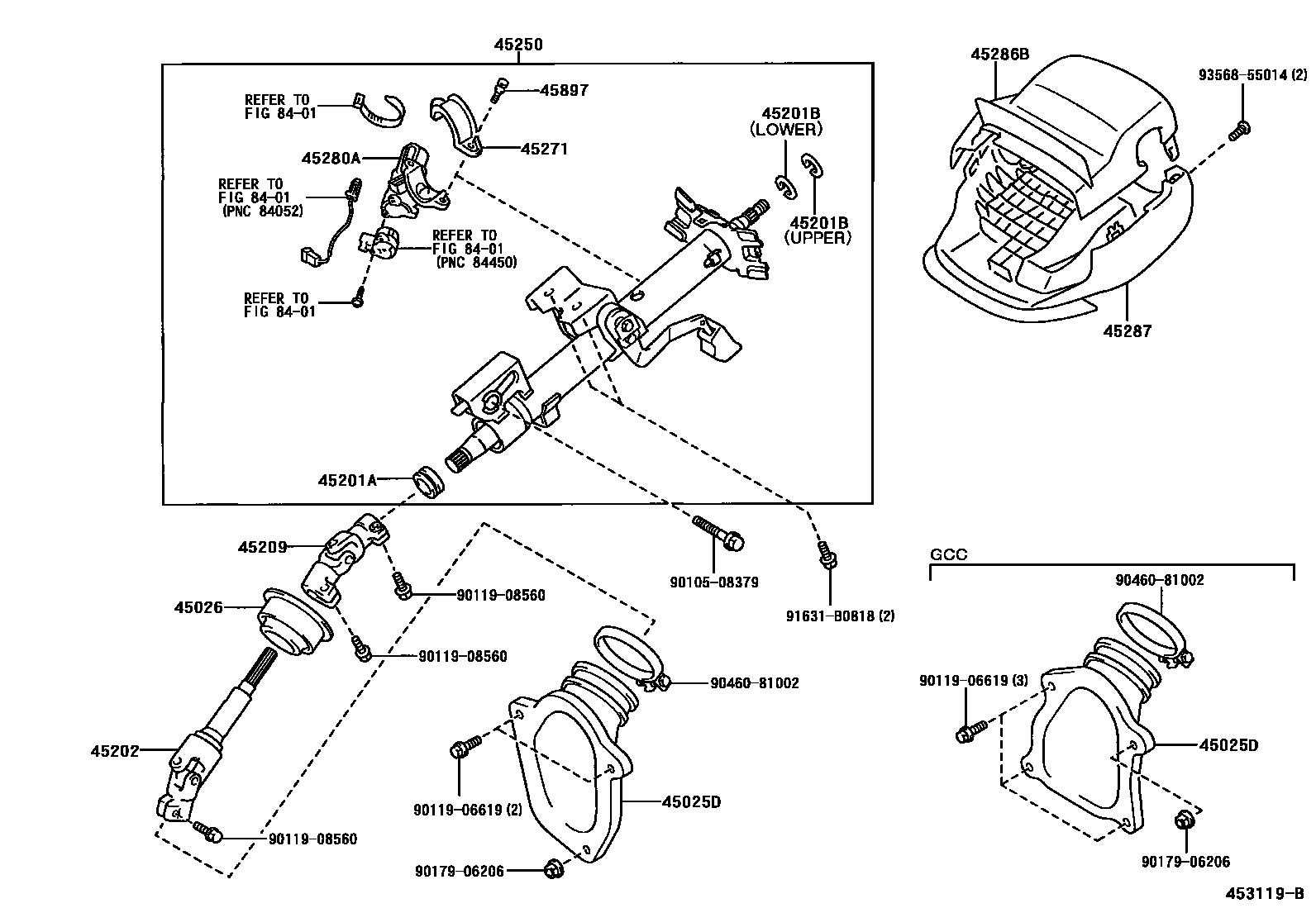

STEERING COLUMN & SHAFT

0001 1 0002 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-06030iACV36..ARL;MCV36..ATM..ARL200408

main45025-06040iACV36,MCV36..GCC200208-200408

45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2

main45026-06040iACV36;MCV36..ATM;MCV36..MTM..GCC200408

main45026-33050iACV36,MCV36200208-200403

45201ABEARING(FOR STEERING MAIN SHAFT)

main45274-33040iACV36,MCV36200208-200303

main45274-42010iACV36;MCV36..ATM;MCV36..MTM..GCC200408

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iACV36;MCV36..ATM;MCV36..MTM..GCC200408

T=1.20,LOWER

main90520-17269iMCV36..MTM..ARL200408-200601

T=1.20,UPPER

45202SHAFT SUB-ASSY, STEERING INTERMEDIATE

main45202-06020iACV36,MCV36..GCC200408

main45202-06030iMCV36..MTM..ARL200408-200601

main45202-33120iACV36,MCV36..GCC200208-200402

main45202-33130iACV36,MCV36..ARL200208-200402

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-33020iACV36,MCV36..GCC200408

main45209-33030iACV36,MCV36..ARL200208-200408

45250COLUMN ASSY, STEERING

main45250-06370iACV36,MCV36200208-200408

main45250-33590iMCV36..MTM..ARL200501-200601

45271CLAMP, STEERING COLUMN, UPPER

main45271-16020iACV36;MCV36..ATM;MCV36..MTM..GCC200408

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-06040iACV36,MCV36200208-200408

45286BCOVER, STEERING COLUMN, UPR

main45286-06100-B0iACV36,MCV36..ALT,ATEVA,GD,GLI,TOU,XLI; MCV36..ALTS200208-200408

DK.CHARCOAL,TRIM1#; DK.CHARCOAL,TRIM12

main45286-06100-B1iACV36..SPV;MCV36..MTM..SPV; MCV36..ALTS; MCV36..ATM..SPV200208-200408

DK.GRAY,TRIM1#; DK.GRAY,TRIM12; DK.GRAY,TRIM15,16

main45286-06100-E0iACV36,MCV36..ALT,ATEVA,GD,GLI,TOU,XLI200408-200606

SANDAL WOOD,TRIM4#

45287COVER, STEERING COLUMN, LWR

main45287-06100-B0iACV36,MCV36..ALT,ATEVA,GD,GLI,TOU,XLI; MCV36..ALTS200208-200408

DK.CHARCOAL,TRIM1#; DK.CHARCOAL,TRIM12

main45287-06100-B1iACV36..SPV;MCV36..MTM..SPV; MCV36..ALTS; MCV36..ATM..SPV200208-200408

DK.GRAY,TRIM1#; DK.GRAY,TRIM12; DK.GRAY,TRIM15,16

main45287-06100-E0iACV36,MCV36..ALT,ATEVA,GD,GLI,TOU,XLI200208-200408

SANDAL WOOD,TRIM4#

45897BOLT, STEERING LOCK SET

main45897-12020×2iACV36,MCV36200208-200408

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010508379

main90105-08379

9011906619

main90119-06619

9011908560

main90119-08560

9017906206

main90179-06206

9046081002

main90460-81002

91631B0818

main91631-B0818

9356855014

main93568-55014

20 parts on this diagram · 2 diagrams in section
