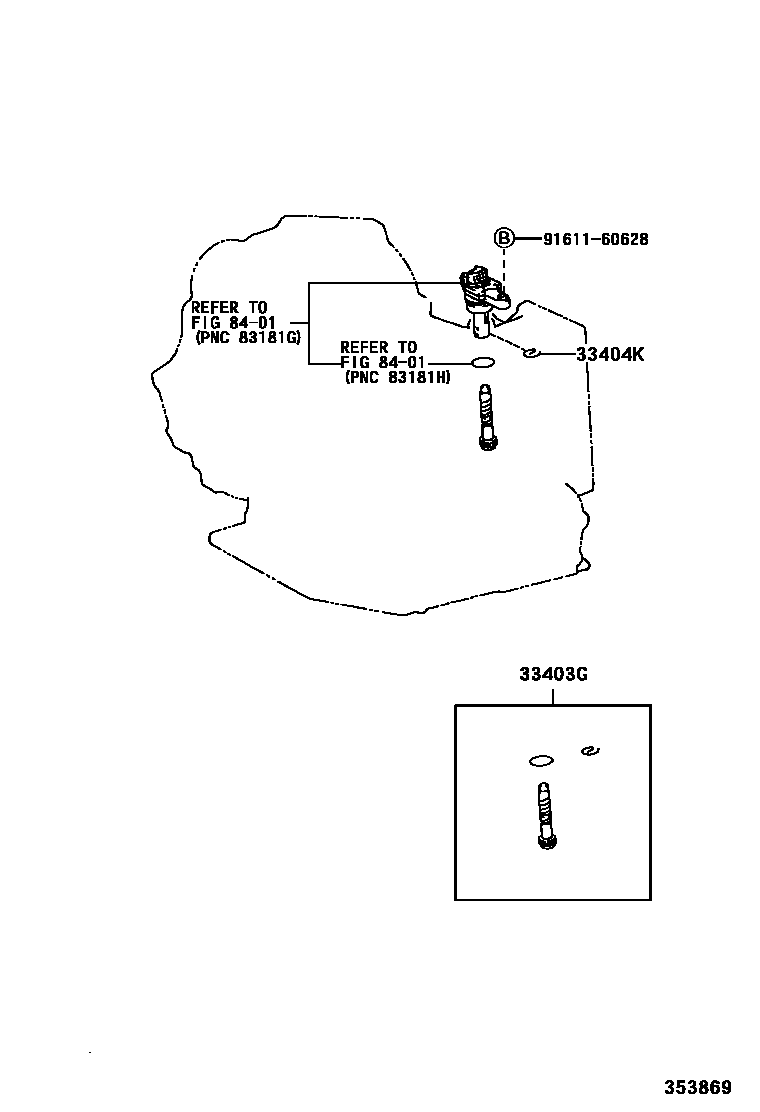

SPEEDOMETER DRIVEN GEAR (ATM)

0001 1U241E 0002 1A541E

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33403-39275iACV36..ATM200208-200408

N=22,MARK 22:27

main33403-39475iMCV36..ATM200208-200408

N=24,MARK 24:30

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iACV36,MCV36..ATM200208-200408

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9161160628

main91611-60628

4 parts on this diagram · 2 diagrams in section
