TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

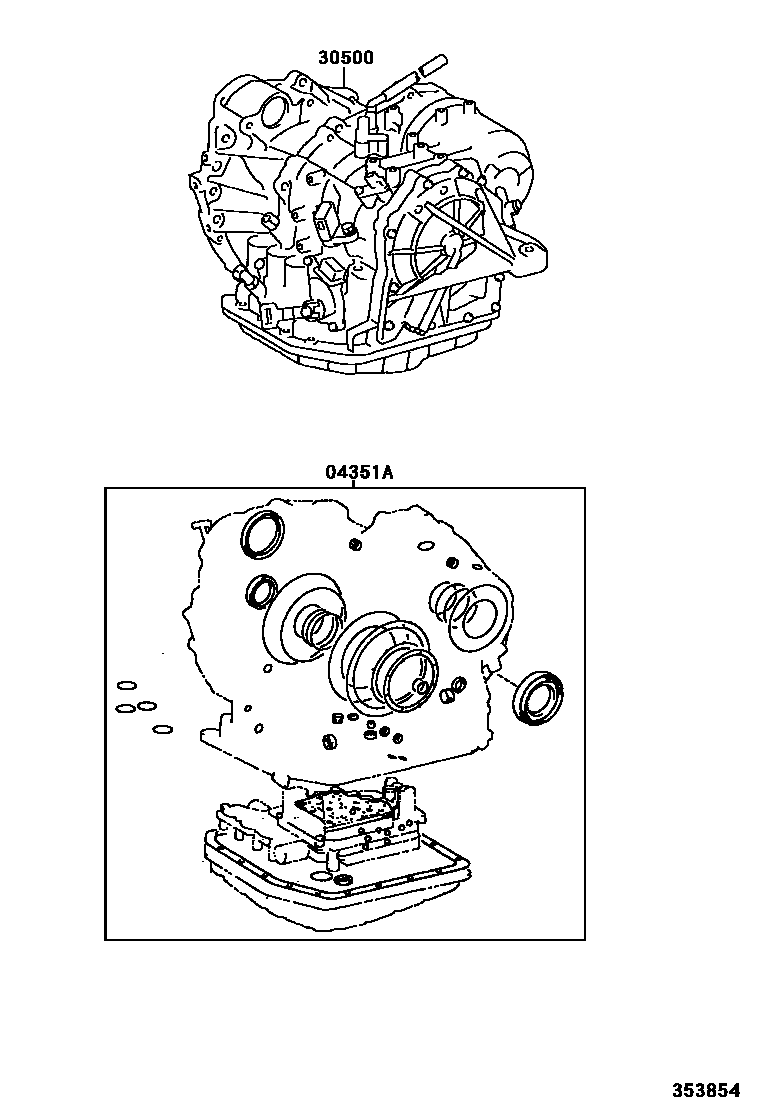

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-33032i200208-200211

main04351-33033i200211-200408

main04351-33190i200408-200606

main04351-33330i200408-200606

main04351-44010i200208-200408

30500TRANSAXLE ASSY, AUTOMATIC

main30500-33360i200208-200310

U241E

main30500-33370i200310-200408

U241E

main30500-33371i200408

U241E

main30500-33430i200208-200408

2 parts on this diagram · 2 diagrams in section
