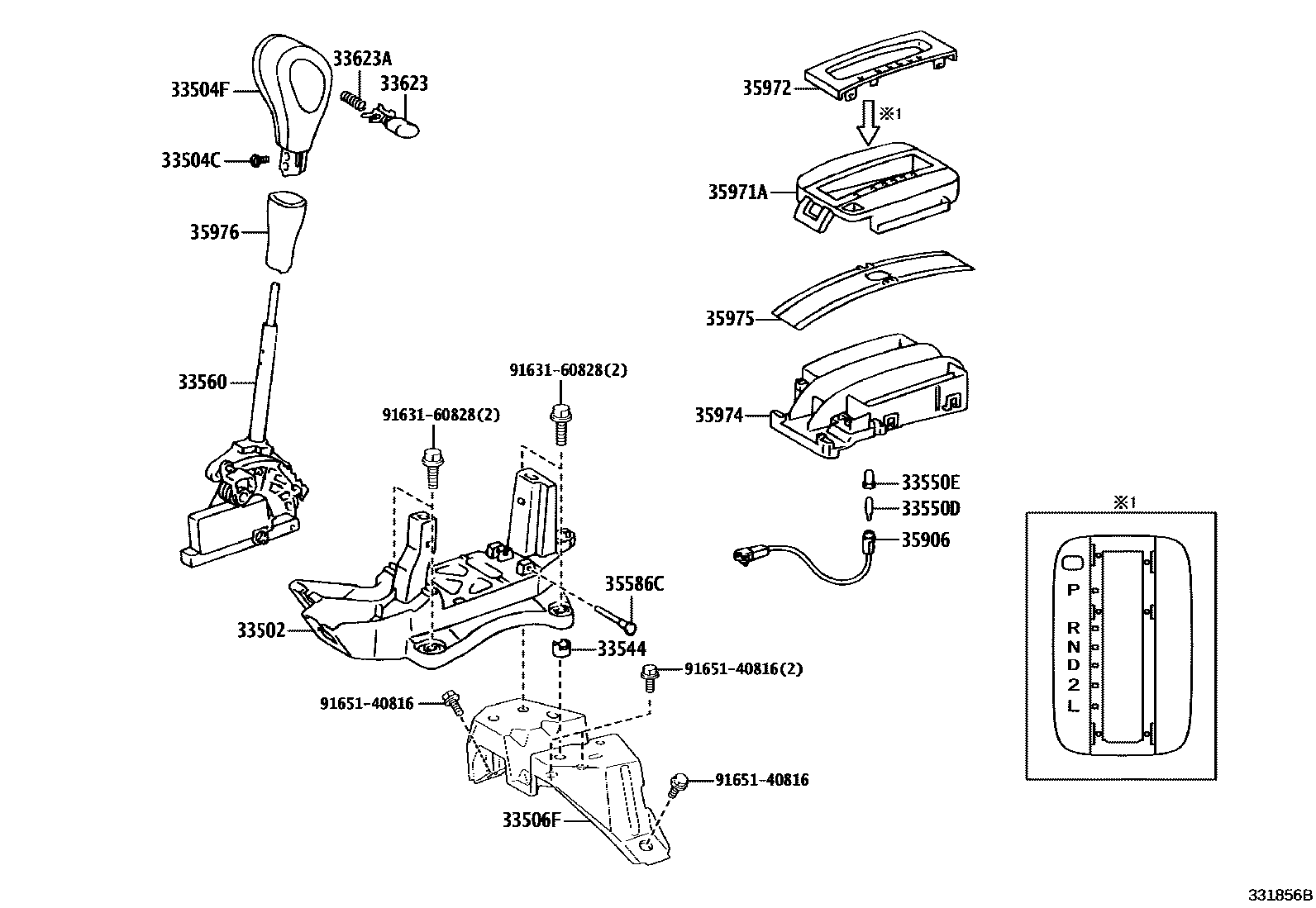

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

33502PLATE SUB-ASSY, SHIFT LEVER

main33521-33050iACV36,MCV36..ATM..GCC200208-200408

33504CSCREW (FOR SHIFT LEVER KNOB SETTING)

main90159-40238iACV36,MCV36..ATM..GCC200208-200408

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12200-B3iACV36..MTM..GLI200208-200606

DK.GRAY,TRIM1#

sub33504-12200

sub33504-22140

main33504-12200-B4iMCV36..MTM..GD200208-200606

DK.CHARCOAL,TRIM1#

sub33504-12200

sub33504-22140

main33504-12200-E5iMCV36..MTM..GD200208-200606

SANDAL WOOD,TRIM4#

sub33504-12200

sub33504-22140

main33504-YC010-B1iACV36,MCV36..MTM..(ALT,GLI,TOU,XLI)200208-200606

DK.CHARCOAL,TRIM1#

sub33504-12180

main33504-YC010-E1iACV36,MCV36..MTM..(ALT,GLI,TOU,XLI)200208-200606

SANDAL WOOD,TRIM4#

sub33504-12180

main33542-33150-B0iACV36,MCV36..ATM..(GLI,TOU,XLI)200208-200606

DK.CHARCOAL,TRIM1#

sub33542-33150

main33542-33150-E0iACV36,MCV36..ATM..(GLI,TOU,XLI)200208-200606

SANDAL WOOD,TRIM4#

sub33542-33150

main33542-33160-B0iMCV36..ATM..GD200208-200606

DK.CHARCOAL,TRIM1#

sub33542-33160

main33542-33160-B1iACV36..ATM..GLI200508-200606

DK.GRAY,TRIM1#

sub33542-33160

main33542-33160-E0iMCV36..ATM..GD..GCC200208-200606

SANDAL WOOD,TRIM4#

sub33542-33160

main33542-8Y001iMCV36..ATEVA200408-200606

main33542-8Y002iACV36,MCV36..ATM..(GD,SPV)..ARL200408-200606

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33571-06010iACV36,MCV36200208-200408

33544INSERT, SHIFT LEVER, NO.1

main33544-33010iACV36,MCV36..ATM..GCC200208-200408

33550DBULB, POSITION INDICATOR LAMP

main90981-11014iACV36,MCV36..ATM..GCC200208-200408

14V 1.4W

33550ECAP, POSITION INDICATOR LAMP

main90339-04049iACV36,MCV36..ATM..GCC200208-200408

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-33090iACV36,MCV36..ATM..GCC200208-200408

33623BUTTON, SHIFT LEVER KNOB

main33623-33100iACV36,MCV36..ATM..(GD,GLI)200208-200606

main33623-33110-B0iACV36,MCV36..ATM..(TOU,XLI)200208-200606

DK.CHARCOAL,TRIM1#

sub33623-33110

main33623-33110-E0iACV36,MCV36..ATM..(TOU,XLI)200208-200606

SANDAL WOOD,TRIM4#

sub33623-33110

main33623-8Y001iMCV36..ATEVA200408-200606

main33623-8Y002iACV36,MCV36..ATM..(GD,SPV)..ARL200408-200606

33623ASPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON)

main90501-07116iACV36,MCV36..ATM..GCC200208-200408

35586CPIN, TOGGLE LEVER SUPPORT

main35586-33010iACV36,MCV36..ATM..GCC200208-200408

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-33070iACV36,MCV36..ATM..GCC200208-200408

35971AHOUSING, POSITION INDICATOR, UPPER

main35971-33160iACV36,MCV36..ATM..GCC200208-200408

35972COVER, POSITION INDICATOR HOUSING

main35972-06010iACV36,MCV36..ATM..GCC200208-200408

35974HOUSING, POSITION INDICATOR, LOWER

main35974-33100iACV36,MCV36..ATM..GCC200208-200408

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-33050iACV36,MCV36..ATM..GCC200208-200408

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main33622-8Y001iMCV36..ATEVA200408-200606

main33622-8Y002iMCV36..ATEVA200408-200606

main35976-06030iACV36,MCV36..ATM..(GD,GLI)..GCC200208-200606

main35976-33060-B0iACV36,MCV36..ATM..(TOU,XLI)200208-200606

DK.CHARCOAL,TRIM1#

sub35976-33060

main35976-33060-E0iACV36,MCV36..ATM..(TOU,XLI)200208-200606

SANDAL WOOD,TRIM4#

sub35976-33060

9163160828

main91631-60828

9165140816

main91651-40816

19 parts on this diagram · 3 diagrams in section
