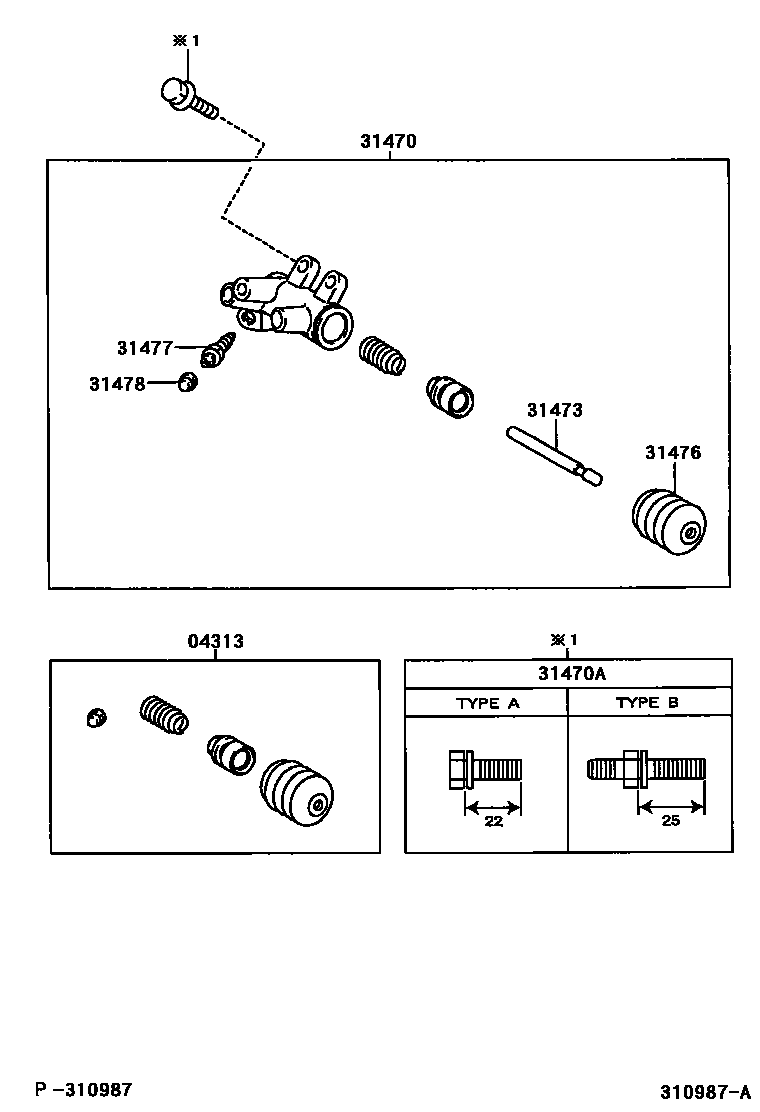

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17010iACV36,MCV36..MTM200208-200408

main04313-52020iACV36,MCV36..MTM200408-200606

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-28080iACV36..MTM200208-200308

TYPE A:REFER TO ILLUSTRATION, (PNC31470A)

sub31470-28081

main31470-33051iMCV36..MTM200208-200403

sub31470-33060

main31470-33060iMCV36..MTM200403-200408

main31470-42030iACV36..MTM200308-200407

TYPE B:REFER TO ILLUSTRATION, (PNC31470A)

sub31470-42031

main31470-42031iACV36..MTM200407-200408

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main90109-08248iACV36..MTM200307-200408

*8-1.25PX25-20.1,TYPE B:REFER TO ILLUSTRATION

main91611-60822iMCV36..MTM200208-200408

*8-1.25PX22-17.1

main91611-60822iACV36..MTM200208-200307

*8-1.25PX22-17.1,TYPE A:REFER TO ILLUSTRATION

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iMCV36..MTM200208-200407

main31473-22030iMCV36..MTM200403-200606

main31473-32010iACV36..MTM200208-200308

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iACV36,MCV36..MTM200208-200606

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iACV36..MTM200208-200606

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iACV36..MTM200208-200606

7 parts on this diagram · 2 diagrams in section
