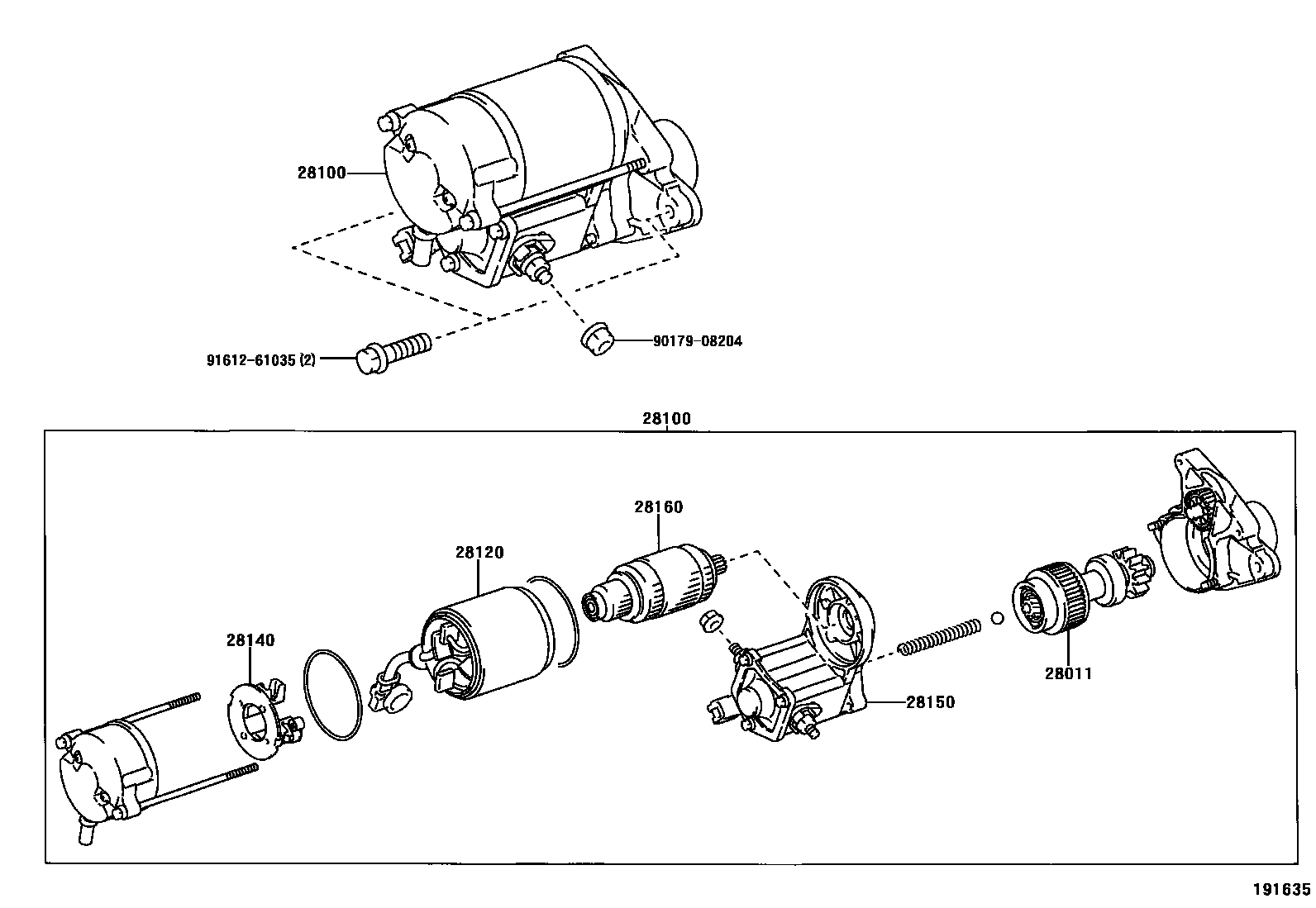

STARTER

0001 1 0002 1

28011CLUTCH SUB-ASSY, STARTER

main28011-74070i1MZFE..MCV36..ATM;1MZFE..MCV36..MTM..GCC200408

main28011-8Y002i2AZFE..ACV36200208-200408

28100STARTER ASSY

main28100-74260i1MZFE..MCV36..MTM..ARL200408-200601

12V 1.4KW

main28100-YD010i2AZFE..ACV36200208-200408

12V 1.4KW

28120YOKE ASSY, STARTER

main28120-66040i1MZFE..MCV36..MTM..ARL200408-200601

main28120-8Y004i2AZFE..ACV36200408

28140HOLDER ASSY, STARTER BRUSH

main28140-74070i1MZFE..MCV36..ATM;1MZFE..MCV36..MTM..GCC200408

main28140-8Y002i2AZFE..ACV36200408

28150SWITCH ASSY, MAGNET STARTER

main28150-74270i1MZFE..MCV36200208-200408

28160ARMATURE ASSY, STARTER

main28160-74070i1MZFE..MCV36..ATM;1MZFE..MCV36..MTM..GCC200408

main28160-YD010i2AZFE..ACV36200408

9017908204

main90179-08204

9161261035

main91612-61035

8 parts on this diagram · 2 diagrams in section
