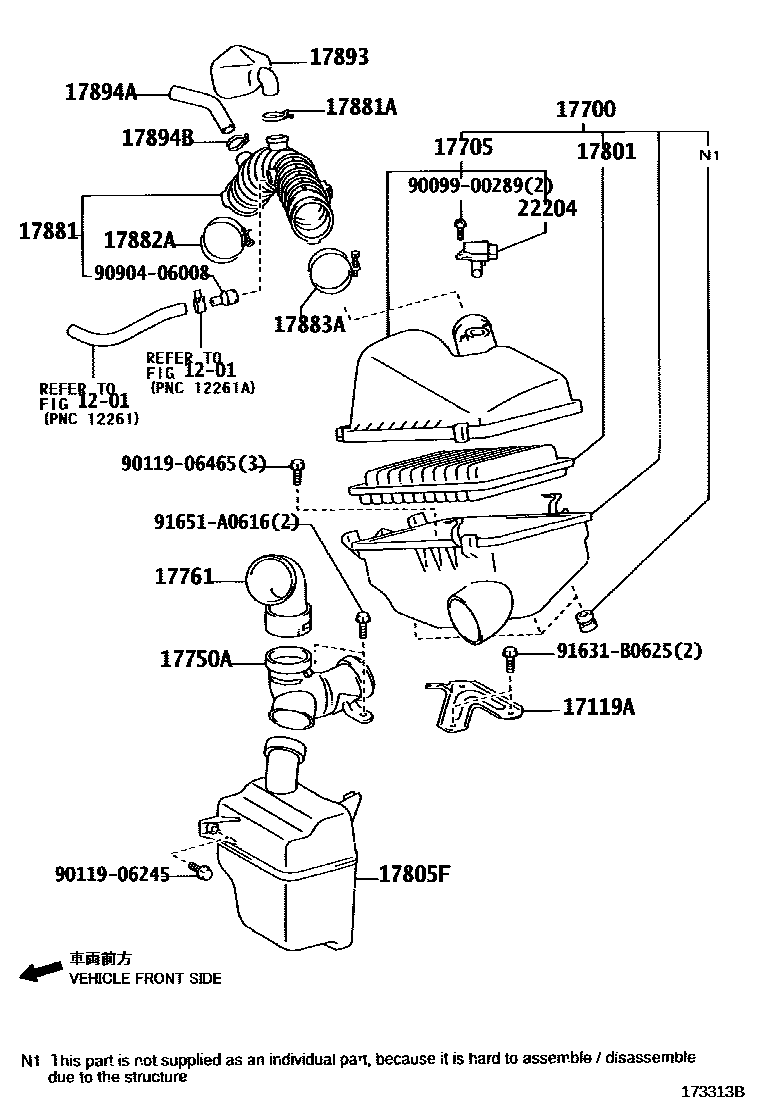

AIR CLEANER
1201
17119ABRACKET, AIR CLEANER
17700CLEANER ASSY, AIR
17705CAP SUB-ASSY, AIR CLEANER
17750AINLET ASSY, AIR CLEANER
17761CAP, AIR CLEANER INLET
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
(L)
(J)
17805FRESONATOR SUB-ASSY, INTAKE AIR
17881HOSE, AIR CLEANER, NO.1
PAPUA NEW GUINEA SPEC OR FIJI SPEC
SOUTH AFRICA SPEC
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
SOUTH AFRICA SPEC
PAPUA NEW GUINEA SPEC OR FIJI SPEC
17883ACLAMP(FOR AIR CLEANER HOSE, NO.3)
17893RESONATOR, INTAKE AIR
17894ARESONATOR, INTAKE AIR, NO.2
17894BCLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2)
22204METER SUB-ASSY, INTAKE AIR FLOW
9009900289
main90099-00289
9011906245
main90119-06245
9011906465
main90119-06465
9090406008
main90904-06008
91631B0625
main91631-B0625
91651A0616
main91651-A0616
22 parts on this diagram · 2 diagrams in section
