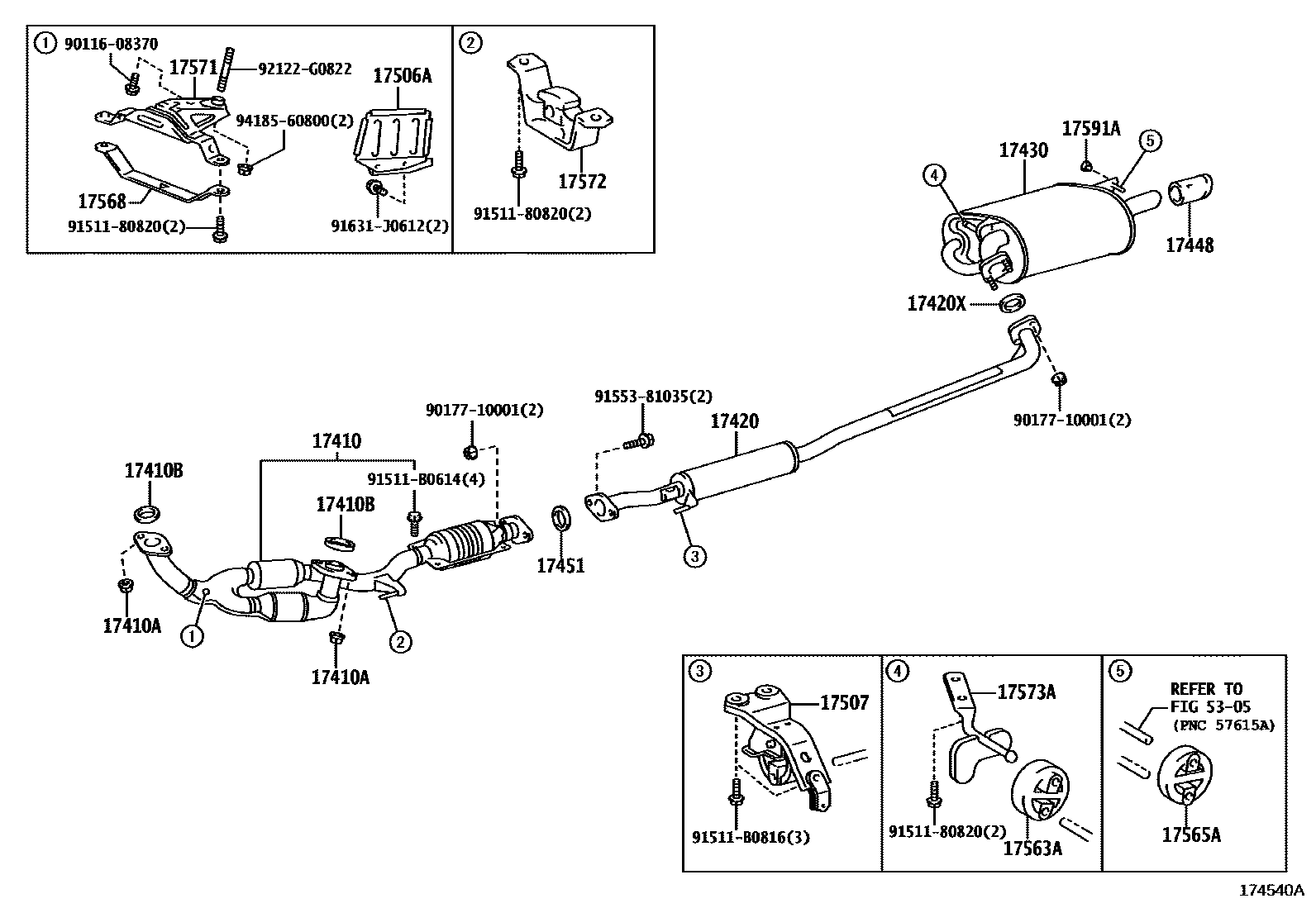

EXHAUST PIPE

0001 1 0002 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-0A380i1MZFE..MCV36..MTM..SPV;1MZFE..MCV36..(ALT,GD)..ARL200408-200601

main17410-0H110i2AZFE..ACV36..ALT,ATEVA; 2AZFE..ACV36..ATEVA200601

PAPUA NEW GUINEA OR FIJI SPEC; SOUTH AFLICA SPEC

main17410-0H260i2AZFE..ACV36..ARL200601

main17410-20500i1MZFE..MCV36..ATM..ARL200601

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070×2i1MZFE..MCV36; 2AZFE..ACV36200208-200408

17410BGASKET, EXHAUST PIPE

main90917-06065×2i1MZFE..MCV36200208-200408

main90917-06090i2AZFE..ACV36200208-200408

17420PIPE ASSY, EXHAUST, CENTER

main17420-0A230i1MZFE..MCV36..GD..GCC;1MZFE..MCV36..ALT,ALTS,ATEVA,SPV,TOU200208-200307

main17420-0A231i1MZFE..MCV36..ATM..ARL; 1MZFE..MCV36..MTM..ARL200408-200601

main17420-0A310i1MZFE..MCV36..ATM..ARL200601

main17420-0H090i2AZFE..ACV36200208-200307

main17420-0H091i2AZFE..ACV36200307-200408

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06073i1MZFE..MCV36..MTM..ARL200408-200601

17430PIPE ASSY, EXHAUST, TAIL

main17430-0A143i1MZFE..MCV36..GCC200208-200307

main17430-0A144i1MZFE..MCV36..GCC200307-200408

main17430-0A230i1MZFE..MCV36..ATM..(ALT,ATEVA)200408

main17430-0A240i1MZFE..MCV36..GD..ARL200408

main17430-0A250i1MZFE..MCV36..SPV200208-200307

main17430-0A251i1MZFE..MCV36..SPV200307-200408

main17430-0H070i2AZFE..ACV36..ALT,ATEVA200208-200307

main17430-0H071i2AZFE..ACV36..ALT,ATEVA200307-200408

main17430-0H080i2AZFE..ACV36..SPV200208-200307

main17430-0H081i2AZFE..ACV36..SPV200307-200408

main17430-0H090i2AZFE..ACV36..GCC200208-200307

main17430-0H091i2AZFE..ACV36..GCC200307-200408

17448BAFFLE, TAILPIPE

main17408-74080i2AZFE..ACV36..SPV;1MZFE..MCV36..ATM..(GD,SPV)..ARL200408

17451GASKET, EXHAUST PIPE

main90917-06054i2AZFE,1MZFE..ACV36,MCV36200208-200408

17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT

main17506-0A060i1MZFE..MCV36200208-200408

17507BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT

main17507-20040i2AZFE,1MZFE..ACV36,MCV36200208-200408

17563ASUPPORT, EXHAUST PIPE, NO.3

main17565-03100i1MZFE..MCV36..MTM..ARL200408-200601

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-03120i2AZFE,1MZFE..ACV36,MCV36200208-200408

17568STAY, EXHAUST PIPE SUPPORT

main17568-0A120i1MZFE..MCV36200208-200408

17571BRACKET, EXHAUST PIPE SUPPORT, NO.1

main17571-0A070i1MZFE..MCV36..ATM;1MZFE..MCV36..MTM..GCC200408

main17571-28080i2AZFE..ACV36200208-200408

17572BRACKET, EXHAUST PIPE NO.1 SUPPORT

main17572-20040i2AZFE,1MZFE..ACV36,MCV36200208-200408

17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3

main17573-74211i2AZFE,1MZFE..ACV36,MCV36200208-200408

17591ASTOPPER, EXHAUST PIPE SUPPORT

main17591-20010i2AZFE,1MZFE..ACV36,MCV36200208-200408

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

9011608370

main90116-08370

9017710001

main90177-10001

9151180820

main91511-80820

91511B0614

main91511-B0614

91511B0816

main91511-B0816

9155381035

main91553-81035

91631J0612

main91631-J0612

92122G0822

main92122-G0822

9418560800

main94185-60800

27 parts on this diagram · 2 diagrams in section
