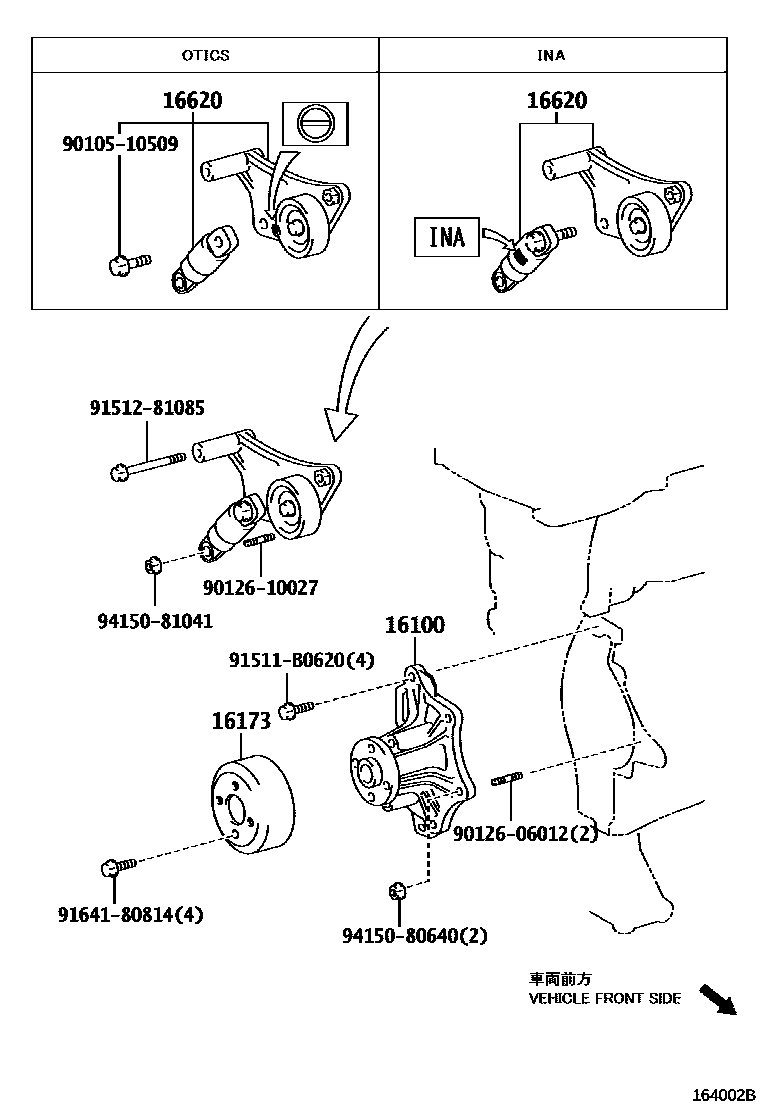

WATER PUMP

0001 1 0002 1 0003 1

16100PUMP ASSY, ENGINE WATER

main16100-09070i1MZFE..MCV36..ATM..ARL200208-200408

(L)

main16100-0H030i2AZFE..ACV36200408-200606

main16100-29085i1MZFE..MCV36200408-200606

16173PULLEY, WATER PUMP

main16173-0H030i2AZFE..ACV36200208-200408

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0W110i2AZFE..ACV36200605-200606

INA

main16620-28011i2AZFE..ACV36200408-200605

OTICS

main16620-28070i2AZFE..ACV36200208-200408

INA

9010510509

main90105-10509

9012606012

main90126-06012

9012610027

main90126-10027

91511B0620

main91511-B0620

9151281085

main91512-81085

9164180814

main91641-80814

9415080640

main94150-80640

9415081041

main94150-81041

11 parts on this diagram · 3 diagrams in section
