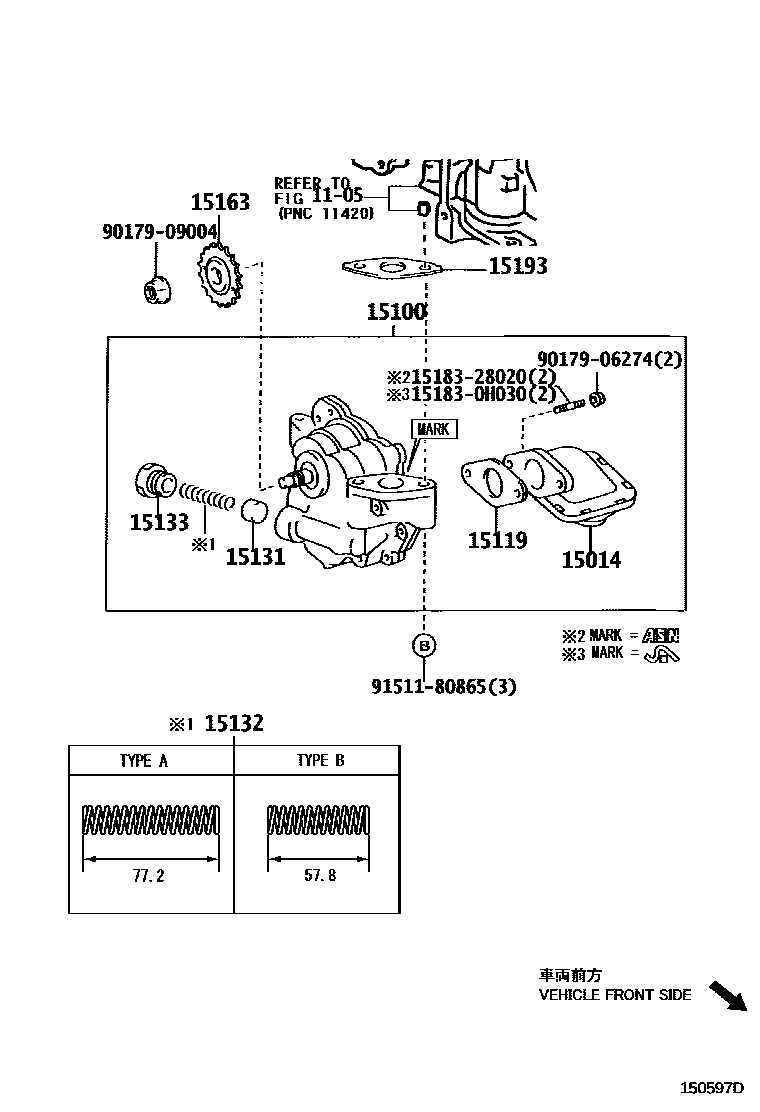

ENGINE OIL PUMP

0001 1 0002 1

1105CYLINDER BLOCK

→ Go to FIG 11-05

15014STRAINER SET, OIL PUMP

main15014-0H030i2AZFE..ACV36200408

(L)

main15014-28020i2AZFE..ACV36200208-200408

15100PUMP ASSY, OIL

main15100-0A010i1MZFE..MCV36..ATM..ARL200208-200408

(L)

main15100-0H030i2AZFE..ACV36200408

(L)

main15100-20020i1MZFE..MCV36200208-200408

(J)

main15100-28020i2AZFE..ACV36200408

(J)

15119GASKET, OIL PUMP COVER

main15119-28020i2AZFE..ACV36200208-200408

15131VALVE, OIL PUMP RELIEF

main15131-42021i1MZFE..MCV36200208-200408

main15131-46040i2AZFE..ACV36200208-200408

15132SPRING, OIL PUMP RELIEF VALVE

main15132-0A010i1MZFE..MCV36..ATM..ARL200208-200408

(L)

main15132-0H030i2AZFE..ACV36200408

(L),T/P A:REF.ILLUST

main15132-20020i1MZFE..MCV36200208-200408

(J)

main15132-28020i2AZFE..ACV36200408-200502

(J),T/P A:REF.ILLUST

main15132-46020i2AZFE..ACV36200502

TYPE B:REFER ILLUST.

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i1MZFE..MCV36200208-200408

main15133-28020i2AZFE..ACV36200208-200408

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-0H040i2AZFE..ACV36200208-200408

(L)

main15163-28010i2AZFE..ACV36200408

(J)

15193GASKET, OIL PUMP

main15193-28010i2AZFE..ACV36200408

151830H030BOLT, UNION(FOR OIL PUMP)

main15183-0H030

1518328020BOLT, UNION(FOR OIL PUMP)

main15183-28020

9017906274

main90179-06274

9017909004

main90179-09004

9151180865

main91511-80865

14 parts on this diagram · 2 diagrams in section
