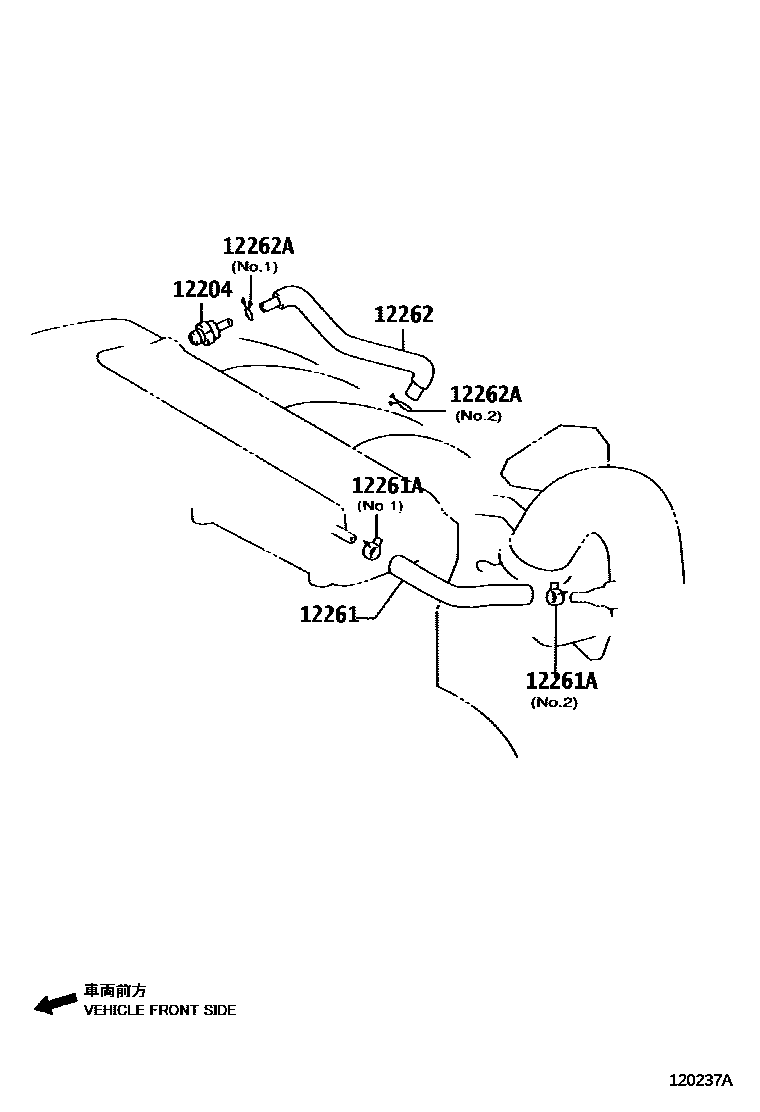

VENTILATION HOSE
12204VALVE SUB-ASSY, VENTILATION
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
12261ACLIP OR CLAMP(FOR VENTILATION HOSE)
NO.1
NO.2
12262HOSE, VENTILATION, NO.2
(L)
(J)
12262ACLIP(FOR VENTILATION HOSE NO.2)
NO.1
NO.2
NO.2
NO.1
