SHORT BLOCK ASSEMBLY

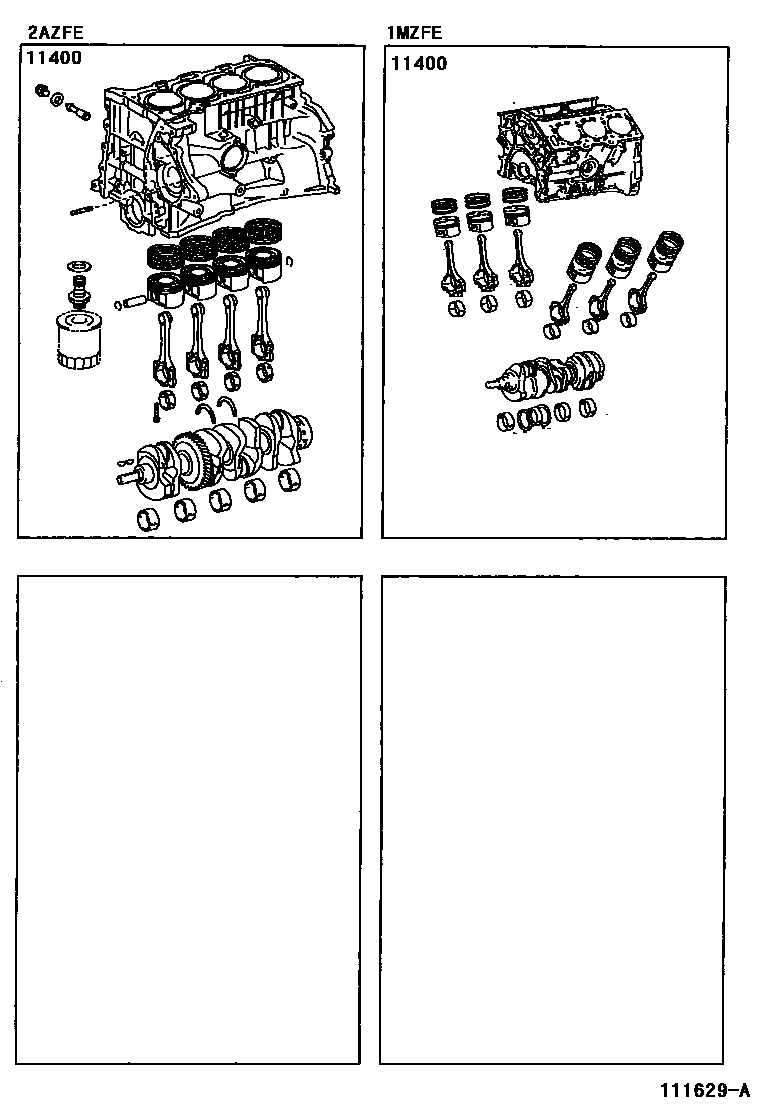

Parts diagram

11400BLOCK ASSY, SHORT

main11400-0A092i200208-200306

(L)

main11400-0H040i200408-200606

main11400-20012i200408-200606

main11400-20200i200601-200606

PAPUA NEW GUINEA OR FIJI SPEC; SOUTH AFRICA SPEC

1 parts on this diagram · 1 diagram in section
