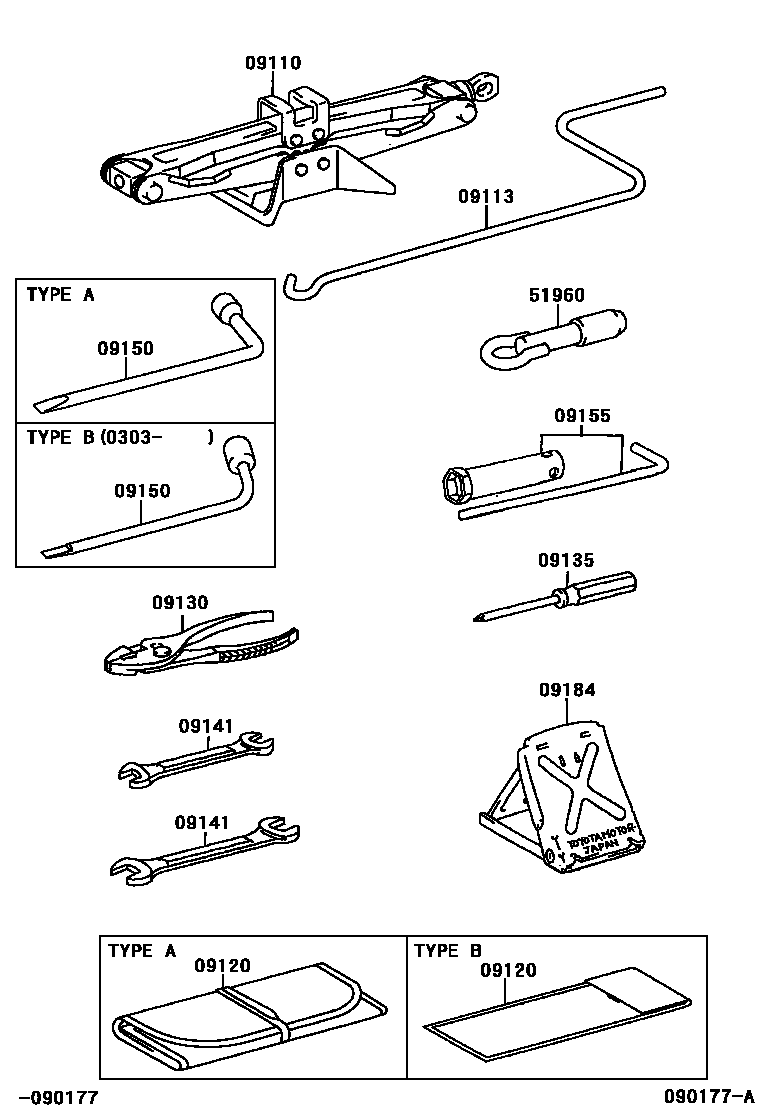

STANDARD TOOL

09110JACK ASSY

main09111-YC040iACV36,MCV36200208-200606

09113HANDLE, JACK

main09113-YA020iACV36;MCV36..ATM;MCV36..MTM..GCC200208-200601

09120BAG, TOOL

main09120-16030iACV36,MCV36..GCC200408

TYPE A:REFER ILLUST.

main09120-16030iACV36,MCV36..GCC200208-200408

TYPE A:REFER TO ILLUSTRATION

main09120-YA020iACV36..ARL;MCV36..ATM..ARL200408

TYPE B:REFER ILLUST.

main09120-YA020iACV36,MCV36..ARL200208-200408

TYPE B:REFER TO ILLUSTRATION

main09120-YA020iMCV36..MTM..ARL200408-200601

09130PLIERS

main99913-11500iACV36,MCV36..GCC200208-200408

09135DRIVER, SCREW

main99915-10700iACV36,MCV36..GCC200208-200408

09141SPANNER

main99914-10810iACV36,MCV36..GCC200208-200408

8 X 10

main99914-11214iACV36,MCV36..GCC200208-200408

12 X 14

09150WRENCH, HUB NUT BOX

main09150-40010iACV36,MCV36200408-200606

main09150-40010iACV36,MCV36200303-200408

TYPE B:REFER TO ILLUSTRATION

main09150-YA010iACV36,MCV36..ARL200303-200408

TYPE A:REFER TO ILLUSTRATION

09155WRENCH, SPARK PLUG

main09155-74020iACV36,MCV36..GCC200208-200408

09184STOPPER, WHEEL

main09184-00010iACV36,MCV36..GCC200208-200606

51960HOOK ASSY, FRONT

main51960-YC010iACV36,MCV36200208-200601

sub51960-33010

10 parts on this diagram · 1 diagram in section
