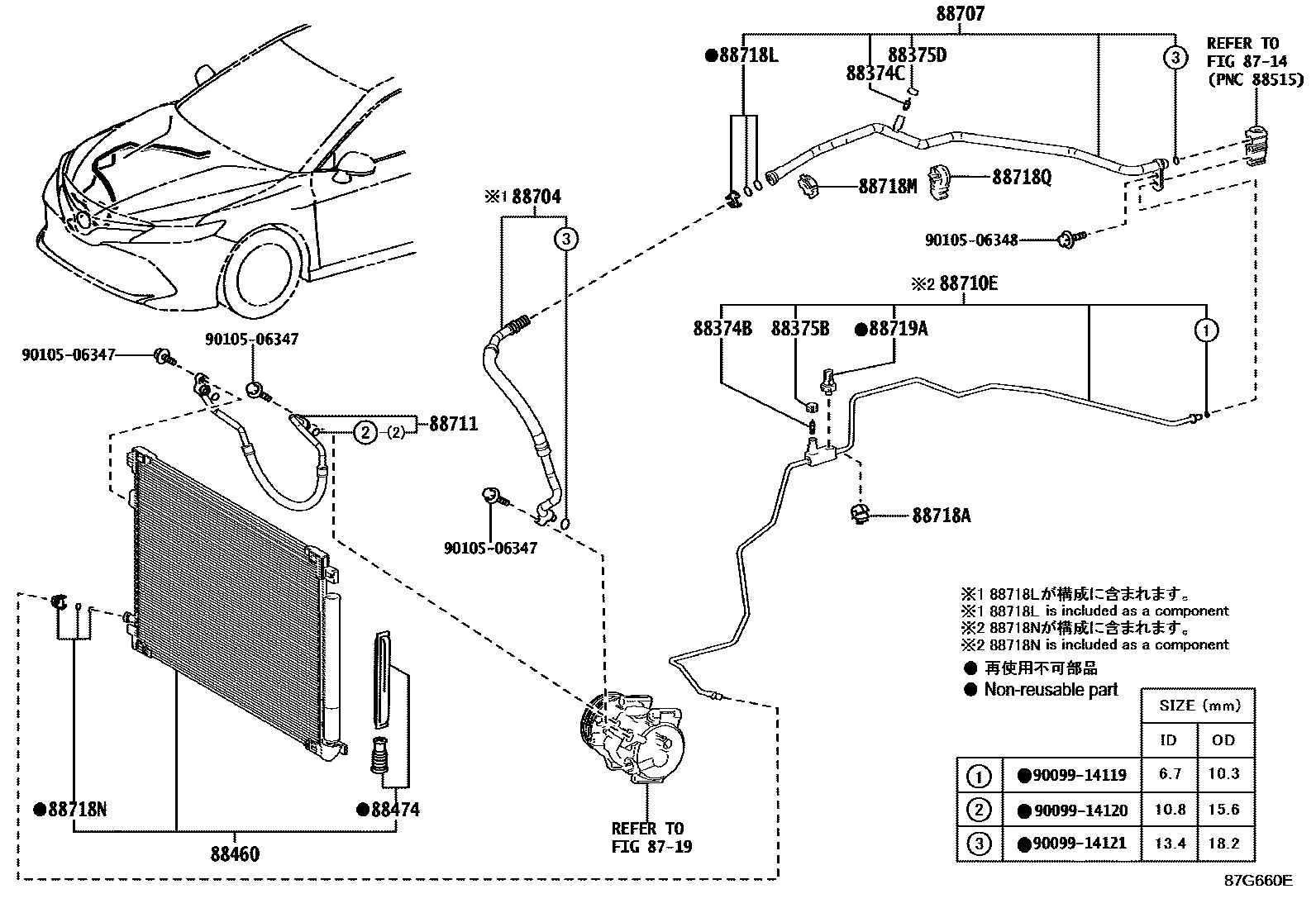

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0003 1 0004 1 0005 1 0006 1 0008 1 0009 1 0011 1 0013 1

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iASV70,AXVA70,AXVH7#,GSV70201709-202101

88374CVALVE, SERVICE, NO.2

main88374-30010iASV70,AXVA70,AXVH7#,GSV70201709-202101

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iASV70,AXVA70,AXVH7#,GSV70201709-202101

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iASV70,AXVA70,AXVH7#,GSV70201709-202101

88460CONDENSER ASSY, COOLER

main884A0-33010iASV70,AXVA70,GSV70201709-202101

main884A0-33030iAXVH7#202102

88474DRYER, COOLER

main88474-12020iASV70,AXVA70,AXVH7#,GSV70201709-202101

88704HOSE SUB-ASSY, SUCTION

main88704-33600iGSV70201712-202101

main88704-33610iASV70201709-202101

main88704-33620iAXVA70201712-202101

main88704-33630iAXVH7#201712-202101

main88704-33680iMXVA71202102

88707PIPE SUB-ASSY, SUCTION

main88707-33130iASV70,AXVA70,GSV70..LHD201712-202101

main88707-33140iAXVA70..ARL202102

main88707-33180iAXVH7#..ARL201712-202101

main88707-33190iAXVH71..D201804-202101

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-33450iAXVA70,GSV70,MXVA71..LHD202102

main88710-33460iASV70,GSV70..ARL201709-202101

main88710-33500iAXVH7#..ARL201712-202101

main88710-33580iAXVH71..D201804-202101

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-33310iGSV70202102

main88711-33320iASV70201709-202101

main88711-33330iAXVA70201712-202101

main88711-33340iAXVH7#201712-202101

main88711-33380iMXVA71202102

88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

main88718-33560iAXVH7#202311

main88718-58050iASV70,AXVA70,AXVH7#,GSV70201709-202101

88718LCLAMP, PIPING

main88718-52280iASV70,AXVA70,AXVH7#,GSV70201709-202101

88718MCLAMP, PIPING

main88718-33520iASV70,AXVA70,GSV70201709-201801

main88718-42110iASV70,AXVA70,GSV70; AXVH7#201802-202101

88718NCLAMP, PIPING

main88718-1E150iASV70,AXVA70,AXVH7#,GSV70201709-202101

88718QCLAMP, PIPING

main88718-33490iASV70,AXVA70,GSV70201709-202101

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-11010iASV70,AXVA70,AXVH7#,GSV70201709-202101

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9010506347

main90105-06347

9010506348

main90105-06348

23 parts on this diagram · 9 diagrams in section
