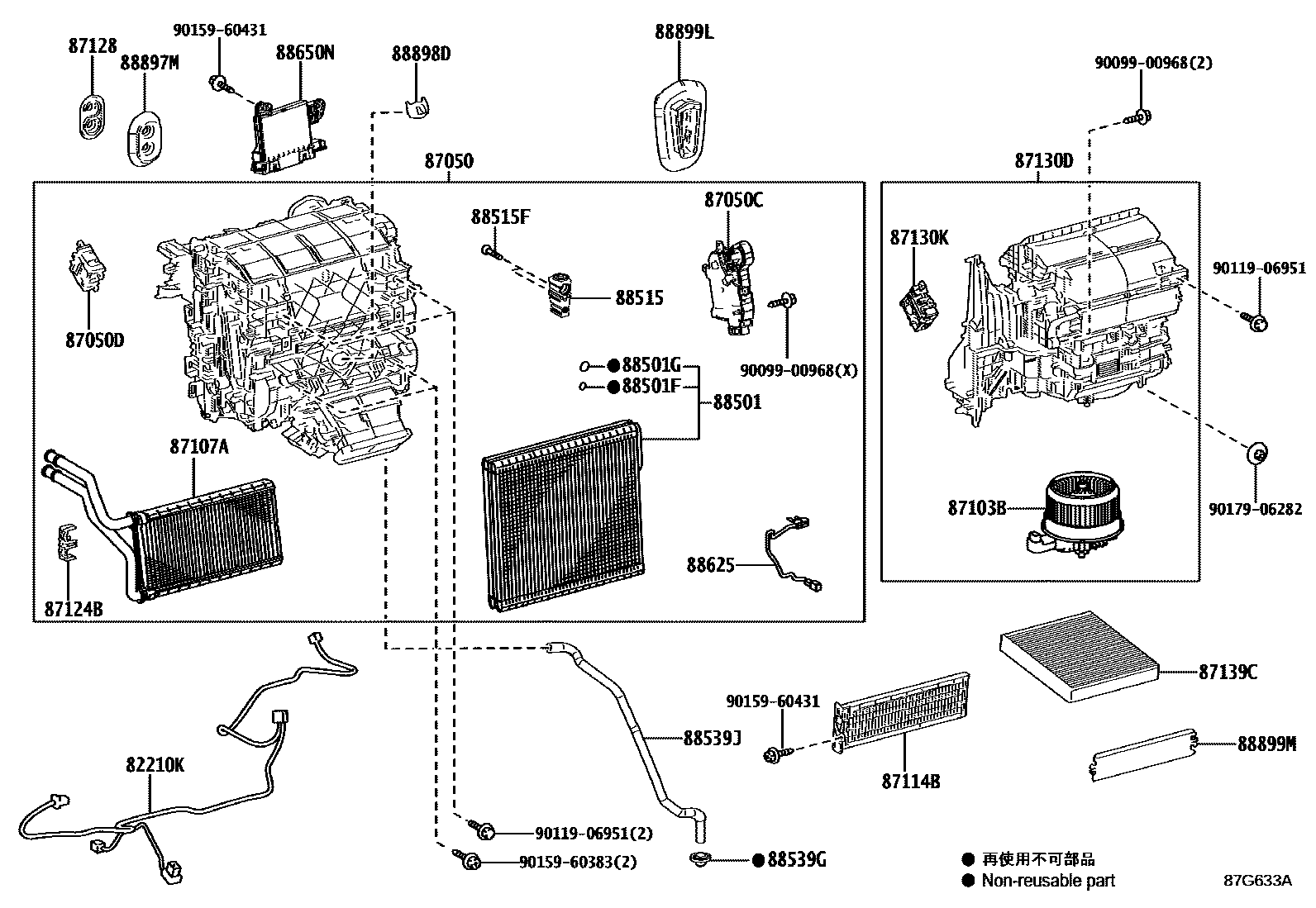

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1

82210KHARNESS ASSY, AIR CONDITIONER

main82212-33120iAXVA70,AXVH71,GSV70,MXVA71..LHD202102

main82212-33150iASV70201709-201712

main82212-33170iAXVH71..ARL201712-201808

main82212-42060iASV70,AXVH70,GSV70..ARL201801-202101

main82212-42050iAXVH71..TAKR201808-202008

LE PACKAGE(KOREA SPEC)

87050RADIATOR ASSY, AIR CONDITIONER

main87050-33C00iAXVH70202102

main87050-33C50iASV70,AXVA70..LE201712-201810

main87050-33C51iASV70,AXVA70..LE201810-202101

main87050-33C60iAXVH71,GSV70..GCC;ASV70,AXVA70..GLE,SE201712-201808

main87050-33C61iASV70..TAIW;ASV70,AXVA70,GSV70..GLE,LIMD,SE201808-202101

main87050-33C80iASV70..D201712-201810

main87050-33C81iAXVA70..ARL202102

main87050-33C90iASV70,GSV70..N,V201709-201810

main87050-33C91iASV70,GSV70..N,V201810-202101

main87050-33D00iAXVH71..ARL201712-201808

main87050-33F90iAXVH71..D201808-202101

main87050-33C20iAXVH71..TAKR201808-202008

LE PACKAGE(KOREA SPEC)

87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1

main87106-42230iASV70..D..ARL;ASV70,AXVA70..LE201810-202101

main87106-42240iAXVA70..GLE,SE;AXVH71,GSV70,MXVA71202102

main87106-47180iASV70..D;ASV70,AXVA70..LE201712-201810

main87106-48170iAXVH71,GSV70..GCC;ASV70,AXVA70..GLE,SE201709-201808

87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2

main87106-33340iAXVA70,AXVH70..ARL202102

main87106-48200iASV70,AXVA70,AXVH71,GSV70..LHD201712-202101

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-33160iASV70,AXVA70,AXVH71,GSV70..LHD201712-202101

main87103-33170iAXVA70,AXVH71,GSV70,MXVA71..LHD202102

main87103-42130iAXVH70202102

main87103-52170iAXVA70..ARL202102

main87103-58060iASV70,GSV70..ARL201709-202101

main87103-58070iAXVH7#..ARL201712-202101

main87103-58080iAXVH71..TAKR201808-202008

LE PACKAGE(KOREA SPEC)

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-33130iAXVA70,AXVH71,GSV70,MXVA71..LHD202102

main87107-33140iAXVA70,AXVH70..ARL202102

87114BCOVER, HEATER

main87114-33050iAXVH71..TAKR;ASV70,AXVA70,AXVH70,GSV70201709-202101

87124BCLAMP, HEATER

main87124-33070iAXVA70,AXVH7#,GSV70,MXVA71202102

87128GROMMET, HEATER

main87128-28010iASV70,AXVA70,AXVH7#,GSV70201709-202101

87130DBLOWER ASSY

main87130-28610iAXVA70..ARL202102

main87130-33280iASV70,AXVA70,AXVH71,GSV70..LHD201712-202101

main87130-33290iASV70,GSV70..ARL201709-202101

main87130-33300iAXVA70,AXVH71,GSV70,MXVA71..LHD202102

main87130-42480iAXVH70202102

main87130-47300iAXVH7#..ARL201712-202101

main87130-47290iAXVH71..TAKR201808-202008

LE PACKAGE(KOREA SPEC)

87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1

main87106-28250iAXVH70202102

main87106-33320iAXVA70,AXVH71,GSV70,MXVA71..LHD202102

main87106-33330iASV70,GSV70..ARL201709-202101

main87106-58050iAXVH71..TAKR201808-202008

LE PACKAGE(KOREA SPEC)

87139CFILTER, CLEAN AIR

main87139-58010iASV70,AXVA70,AXVH7#,GSV70201709-202101

DEODORANT FILTER

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-33340iAXVH71..GCC201709-201808

main88501-33350iAXVH7#201808-202101

main88501-33370iAXVH71..ARL201712-201808

88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

main90099-14120iAXVA70,AXVH7#,GSV70,MXVA71202102

ID=10.8,OD=15.6

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90099-14121iAXVA70,AXVH7#,GSV70,MXVA71202102

ID=13.4,OD=18.2

88515VALVE, COOLER EXPANSION

main88515-30800iAXVH71..ARL201712-201808

main88515-48110iAXVH71..D;ASV70,AXVA70,AXVH70,GSV70201709-202101

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542×2iASV70,AXVA70,AXVH7#,GSV70201709-202101

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main88888-47010iASV70,AXVA70,AXVH7#,GSV70201709-202101

88539JHOSE, DRAIN COOLER

main88539-33130iASV70,AXVA70,AXVH71,GSV70..LHD201712-202101

main88539-33140iASV70,AXVH71,GSV70..ARL201709-201805

main88539-33141iAXVA70,AXVH70..ARL202102

88625THERMISTOR, COOLER, NO.1

main88620-28050iAXVA70,AXVH7#,GSV70,MXVA71202102

main88620-33040iAXVH71..ARL201712-201808

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-33C60iASV70,AXVA70201709-201808

main88650-33C61iASV70,AXVA70,AXVH71201808-201910

main88650-33C62iASV70,AXVA70,AXVH7#201910-202101

main88650-33D10iAXVH71201712-201808

main88650-33D20iGSV70201712-201808

main88650-33D21iGSV70201808-201910

main88650-33D22iGSV70201910-202101

main88650-33F10iAXVA70,AXVH7#,MXVA71202102-202208

main88650-33F11iAXVA70,AXVH7#,MXVA71202208

main88650-33F30iAXVH70..D; GSV70202102-202208

ATARA SL

main88650-33F31iAXVH70..D; GSV70202208

ATARA SL

main88650-33D11iASV70..N;AXVH71..ARL; AXVH71..GCC201808-201910

ATARA SL; EXCLUSIVE PACKAGE

main88650-33D12iASV70..N;AXVH7#..ARL; AXVH71..GCC201910-202101

ATARA SL; EXCLUSIVE PACKAGE

main88650-33E11iAXVH71..TAKR201808-201910

HV Q PACKAGE(TAIWAN SPEC)

main88650-33E90iAXVH71..TAKR201910-202101

HV Q PACKAGE(TAIWAN SPEC)

main88650-33F20iAXVH71..GCC202102-202208

EXCLUSIVE PACKAGE

main88650-33F21iAXVH71..GCC202208

EXCLUSIVE PACKAGE

main88650-33G20iAXVH71..TAKR202102-202208

TW HV Q

main88650-33J70iAXVH71..TAKR202208

TW HV Q

88897MGROMMET (FOR HEATER PIPE)

main87128-33020iASV70,AXVA70,AXVH7#,GSV70201709-202101

88898DGROMMET

main88899-33070iASV70..D..ARL;ASV70,AXVA70..LE201712-202101

88899LPARTS, COOLING UNIT

main88899-33080iAXVH71..D;ASV70,AXVA70,AXVH70,GSV70201709-202101

main88899-33090iAXVH71..ARL201712-201808

88899MPLATE, COVER(FOR AIR FILTER)

main88899-47120iAXVA70,AXVH7#,GSV70,MXVA71202102

TYPE B

9009900968

main90099-00968

9011906951

main90119-06951

9015960383

main90159-60383

9015960431

main90159-60431

9017906282

main90179-06282

30 parts on this diagram · 11 diagrams in section
