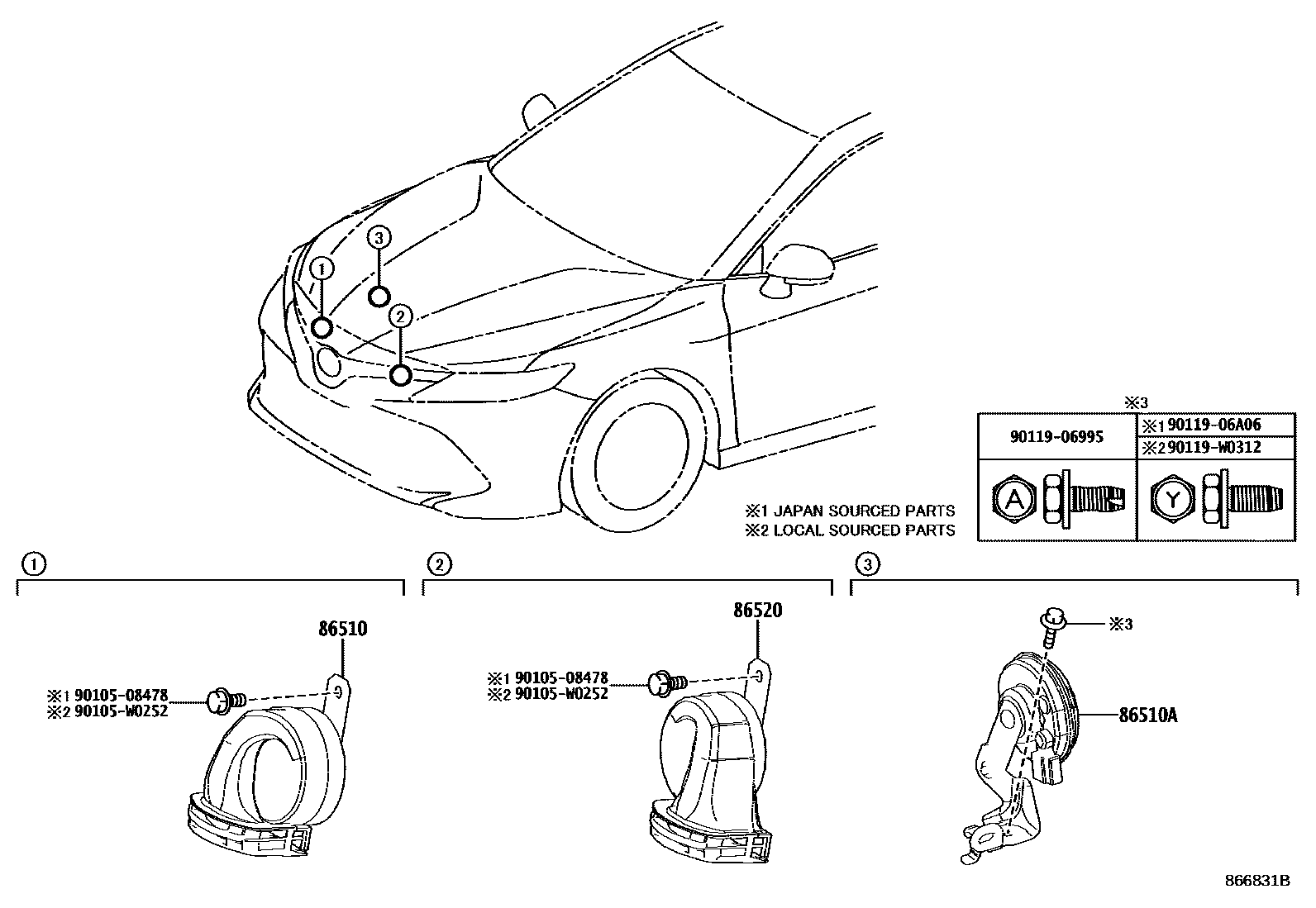

HORN

0001 1 0002 1 0003 1 0004 1

86510HORN ASSY, HIGH PITCHED

main86510-33220iAXVA70,AXVH71,GSV70..GCC202102

main86510-33290iASV70,AXVH7#,GSV70..ARL201709-202101

main86510-47050iASV70,AXVA70,AXVH71,GSV70..GCC201712-202004

main86510-22270iAXVH71..TAKR201808-202008

LE PACKAGE(KOREA SPEC)

86510AHORN ASSY, SECURITY

main86560-33060iASV70,AXVH7#,GSV70..ARL,TAIW,TAKR201709-202101

86520HORN ASSY, LOW PITCHED

main86520-33180iASV70,AXVA70,AXVH71,GSV70..GCC202004-202101

main86520-33190iAXVA70,AXVH70..ARL202102

main86520-47030iAXVH71,MXVA71..TAIW,TAKR202102

main86520-22260iAXVH71..TAKR201808-202008

LE PACKAGE(KOREA SPEC)

9010508478

main90105-08478

90105W0252

main90105-W0252

9011906995

main90119-06995

9011906A06

main90119-06A06

90119W0312

main90119-W0312

8 parts on this diagram · 4 diagrams in section
