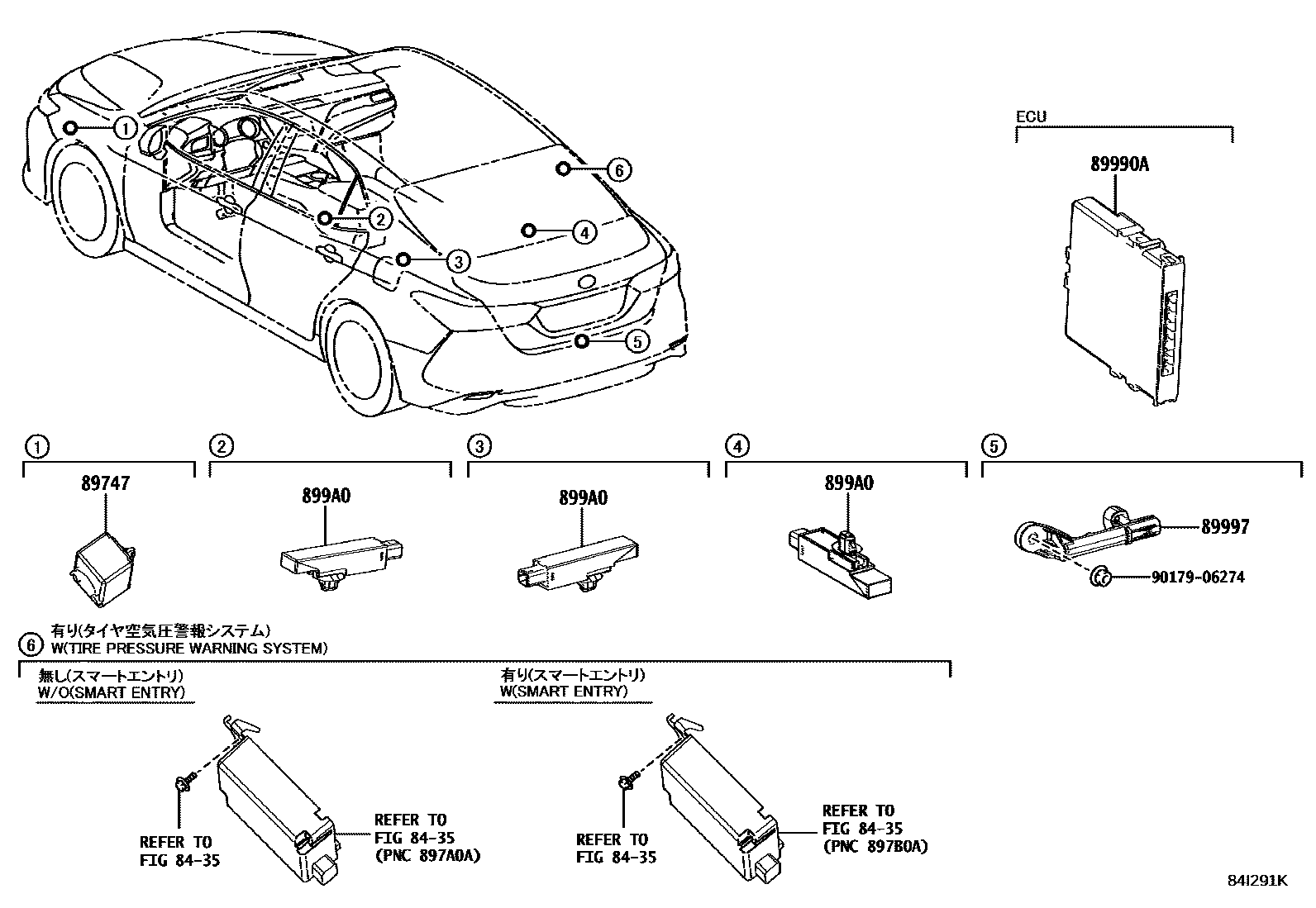

WIRELESS DOOR LOCK

0001 1 0002 1

8435TIRE PRESSURE WARNING SYSTEM

→ Go to FIG 84-35

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iASV70,AXVA70,AXVH7#,GSV70201709-202101

89990ACOMPUTER ASSY, SMART KEY

main89990-33400iGSV70;ASV70..N,V;ASV70,AXVA70..GLE,SE201709-201803

main89990-33401iGSV70;ASV70..N,V;ASV70,AXVA70..GLE,SE201804-201910

main89990-33690iAXVH71201712-201803

main89990-33691iAXVH71201804-201902

main89990-33692iAXVH71201902-201910

main89990-33860iASV70..TAIW; GSV70;ASV70..N,V;ASV70,AXVA70..GLE,SE201910-202101

2AR G PACKAGE(TAIWAN SPEC)

main89990-33870iAXVH7#201910-202101

main89990-33A30iAXVA70,GSV70..GLE,LIMD,SE202102

main89990-33A40iAXVH7#202102-202203

main89990-33A41iAXVH7#202204-202404

main89990-33A42iAXVH7#202405

89997ANTENNA, ELECTRICAL KEY

main89997-30100iASV70..N,V;AXVH7#,GSV70;ASV70,AXVA70..GLE,SE201709-202101

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-47010×3iASV70..N,V;AXVH7#,GSV70;ASV70,AXVA70..GLE,SE201709-202101

9017906274

main90179-06274

6 parts on this diagram · 2 diagrams in section
