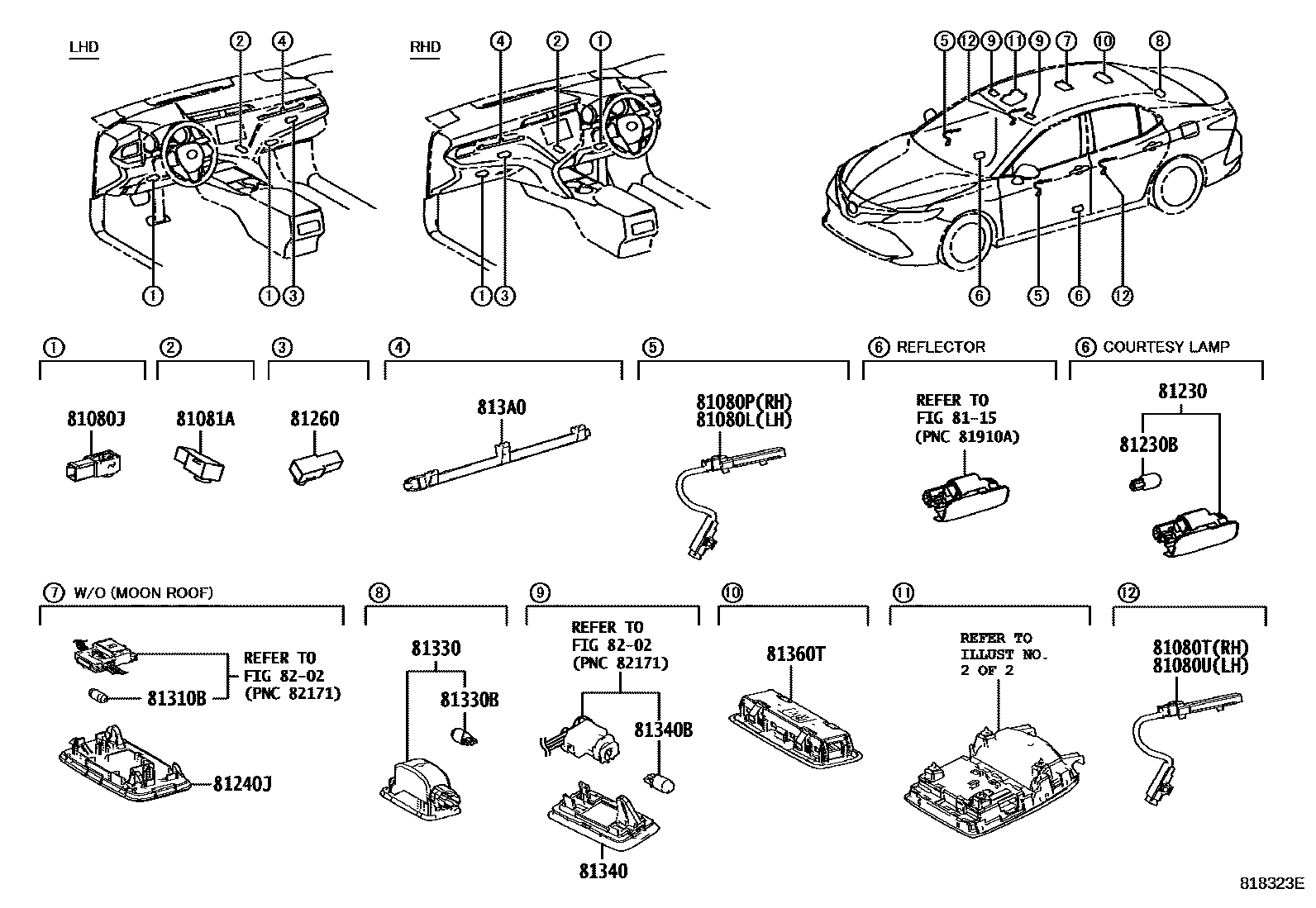

INTERIOR LAMP
81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1
ATARA SL; LIMITED; TW 2.0 G
81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81080PLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080TLAMP ASSY, INTERIOR ILLUMINATION, NO.2 RH
81080ULAMP ASSY, INTERIOR ILLUMINATION, NO.2 LH
81081ALAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.2
8115REFLEX REFLECTOR
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
12V 5W
81240JLAMP ASSY, ROOM
GRAY,TRIM2#
MOON ROOF-WITHOUT,NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM4#
GRAY,TRIM1#,2#; GRAY,TRIM2#; GRAY,TRIM2#,3#; MOON ROOF-WITHOUT&REAR PERSONAL LAMP-WITHOUT,GRAY,TRIM1#,2#
MOON ROOF-WITHOUT&REAR PERSONAL LAMP-WITHOUT,NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM4#
81260LAMP ASSY, GLOVE BOX
ATARA S; ATARA SL
81310BBULB, REAR ROOM LAMP
12V 8W
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 5W
81340LAMP ASSY, VANITY
81340BBULB (FOR VANITY LAMP)
12V 8W
81360TLAMP ASSY, SPOT
GRAY,TRIM2#
NEUTRAL BEIGE,TRIM4#
main81360-33070-B0iAXVA70,GSV70..GLE,LIMD; AXVA70..SE; AXVH70..D; AXVH70..V; AXVH71..GCC; GSV70..SE202102
GRAY,TRIM1#; GRAY,TRIM1#,2#,3#; GRAY,TRIM1#,2#,41; MOON ROOF-WITH(PANORAMA ROOF)&REAR PERSONAL LAMP-WITH(LED),GRAY,TRIM1#,2#,41; MOON ROOF-WITH(PANORAMA ROOF)&REAR PERSONAL LAMP-WITH(LED),GRAY,TRIM2#; MOON ROOF-WITH(PANORAMA ROOF)&REAR PERSONAL LAMP-WITH(LED),GRAY,TRIM2#,3#; MOON ROOF-WITH(TILT & SLIDE)&REAR PERSONAL LAMP-WITH(LED),GRAY,TRIM1#,2#,41
MOON ROOF-WITH(TILT & SLIDE),NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM4#
813A0LAMP ASSY, INSTRUMENT PANEL
8202WIRING & CLAMP
19 parts on this diagram · 3 diagrams in section
