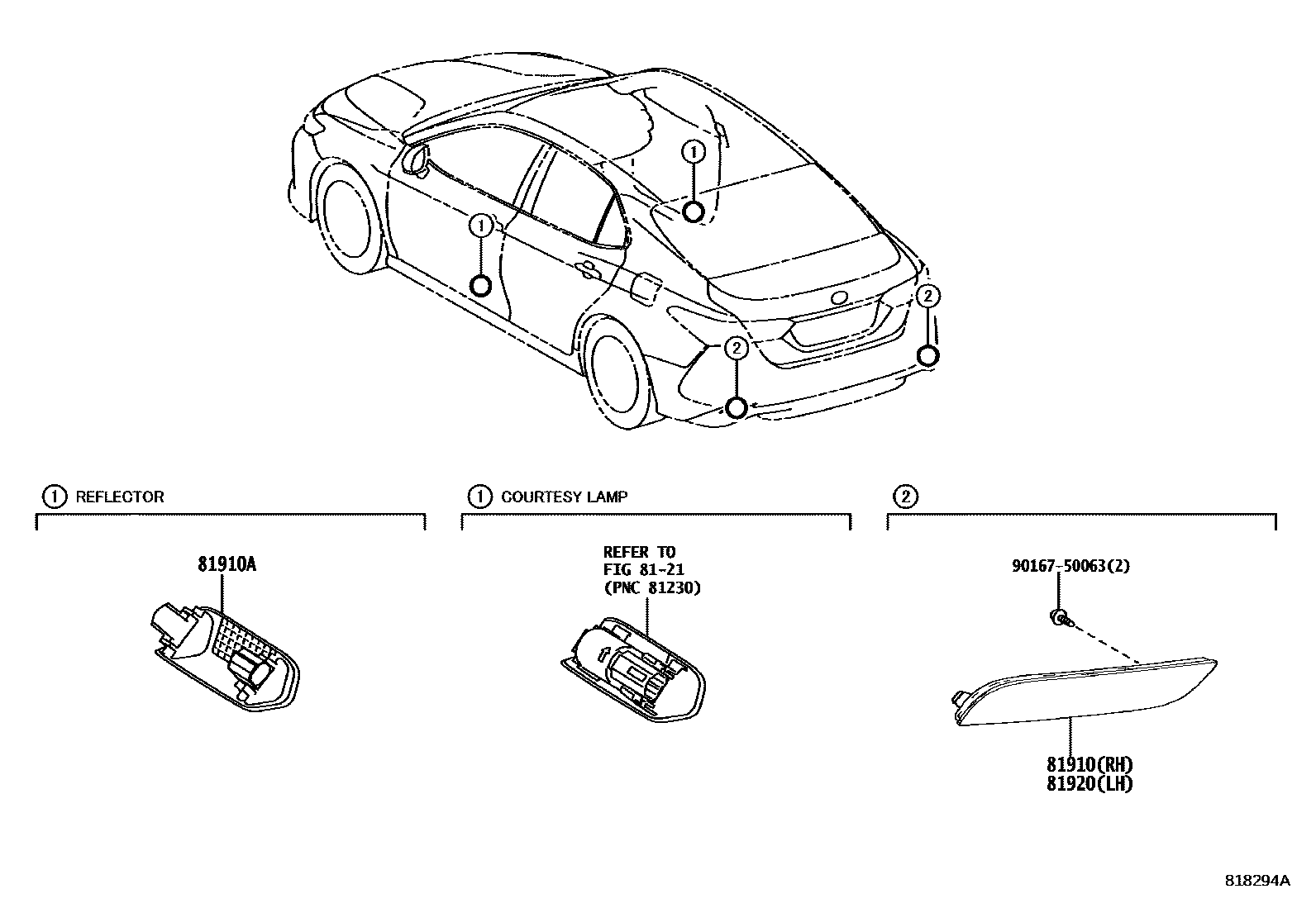

REFLEX REFLECTOR

8121INTERIOR LAMP

→ Go to FIG 81-21

81910REFLECTOR ASSY, REFLEX, RH

main81910-33030iASV70,AXVA70,AXVH7#,GSV70201709-202101

81910AREFLECTOR ASSY, REFLEX, FRONT

main81911-28020×2iASV70,AXVA70..GLE; ASV70..D..ARL;AXVH7#..ARL,GCC;ASV70,AXVA70..LE201712-202101

MOON ROOF-WITHOUT

81920REFLECTOR ASSY, REFLEX, LH

main81920-33020iASV70,AXVA70,AXVH7#,GSV70201709-202101

9016750063

main90167-50063

5 parts on this diagram · 1 diagram in section
