REAR MOULDING

7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 75-01

76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE

main76801-33660-A0iASV70,AXVA70..LE;ASV70,AXVH71..D..(GCC,TAIW)201712-201909

SUPER WHITE 2,040

main76801-33660-A1iAXVH71..GCC;ASV70,AXVA70..LE201712-201909

PLATINUM WHITE PEARL MC.,089

main76801-33660-B0iASV70,AXVA70..LE;ASV70,AXVH71..D..(GCC,TAIW)201712-201909

SILVER ME.,1F7

main76801-33660-C0iASV70,AXVA70..LE;ASV70,AXVH71..D..(GCC,TAIW)201712-201909

ATTITUDE BLACK MC.,218

main76801-33660-D0iAXVH71..GCC;ASV70,AXVA70..LE201712-201808

EMOTIONAL RED,3T7

main76801-33660-D1iASV70,AXVA70..LE;ASV70,AXVH71..D..(GCC,TAIW)201808-201909

EMOTIONAL RED 2,3U5

main76801-33660-E0iAXVH71..GCC;ASV70,AXVA70..LE201712-201909

YANMER BEIGE,4Q0

main76801-33660-E1iASV70,AXVA70..LE;ASV70,AXVH71..D..(GCC,TAIW)201712-201909

STEEL BLONDE ME.,4X1

main76801-33660-E2iASV70,AXVA70..LE;ASV70,AXVH71..D..(GCC,TAIW)201712-201909

GRAPHITE ME.,4X7

main76801-33660-J0iAXVH71..GCC;ASV70,AXVA70..LE201712-201909

DK.BLUE M.M.,8W7

main76801-33670-A0iAXVA70..GLE,LE;AXVA70,AXVH7#,MXVA71..D,V202102

SUPER WHITE 2,040

main76801-33670-A1iGSV70;ASV70,AXVA70..GLE,SE;ASV70,AXVH7#..ARL,TAKR201709-202101

PLATINUM WHITE PEARL MC.,089

main76801-33670-B0iGSV70;ASV70,AXVA70..GLE,SE;ASV70,AXVH7#..ARL,TAKR201709-202101

SILVER ME.,1F7

main76801-33670-B2iAXVA70,AXVH7#,GSV70,MXVA71202102

PRECIOUS METAL,1L5

main76801-33670-C0iAXVA70,AXVH7#,GSV70,MXVA71202102

ATTITUDE BLACK MC.,218

main76801-33670-D0iGSV70..LIMD;ASV70,AXVA70..GLE,SE;ASV70,AXVH71,GSV70..ARL201709-201808

EMOTIONAL RED,3T7

main76801-33670-D1iGSV70..LIMD;ASV70,AXVA70..GLE,SE;ASV70,AXVH7#,GSV70..ARL,TAKR; GSV70..SE201808-202101

EMOTIONAL RED 2,2SC ,3U5; EMOTIONAL RED 2,3U5

main76801-33670-D2iGSV70..LIMD;AXVA70,AXVH7#,MXVA71; GSV70..SE202208

EMOTIONAL RED 3,2XM ,3U9; EMOTIONAL RED 3,3U9

main76801-33670-E0iASV70,AXVA70..GLE201712-202101

YANMER BEIGE,4Q0

main76801-33670-E1iGSV70;ASV70,AXVA70..GLE,SE;ASV70,AXVH7#..ARL,TAKR201709-202101

STEEL BLONDE ME.,4X1

main76801-33670-E2iGSV70;ASV70,AXVA70..GLE,SE;ASV70,AXVH7#..ARL,TAKR201709-202101

GRAPHITE ME.,4X7

main76801-33670-J0iAXVH70..D;AXVA70,AXVH71,GSV70..ARL,GCC; AXVH70..V202102

DK.BLUE M.M.,2RC ,8W7; DK.BLUE M.M.,8W7

76813AGARNISH, LUGGAGE COMPARTMENT DOOR, OUTSIDE NO.3

main76813-33010supersedes 76813-33030iGSV70;ASV70..N,V;AXVH7#..ARL,TAKR;ASV70,AXVA70..GLE,SE201709-202101

main76813-33020iAXVA70..ARL202102

main76813-33040iMXVA71;AXVA70..LE202102

76818PAD, BACK DOOR OUTSIDE GARNISH

main76818-33030iASV70,AXVA70..LE;ASV70,AXVH71..D..(GCC,TAIW)201909-202101

76821APROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH

main76821-33050iASV70,AXVA70,AXVH7#,GSV70201709-202101

9015960621

main90159-60621

9018906197

main90189-06197

9046709206

main90467-09206

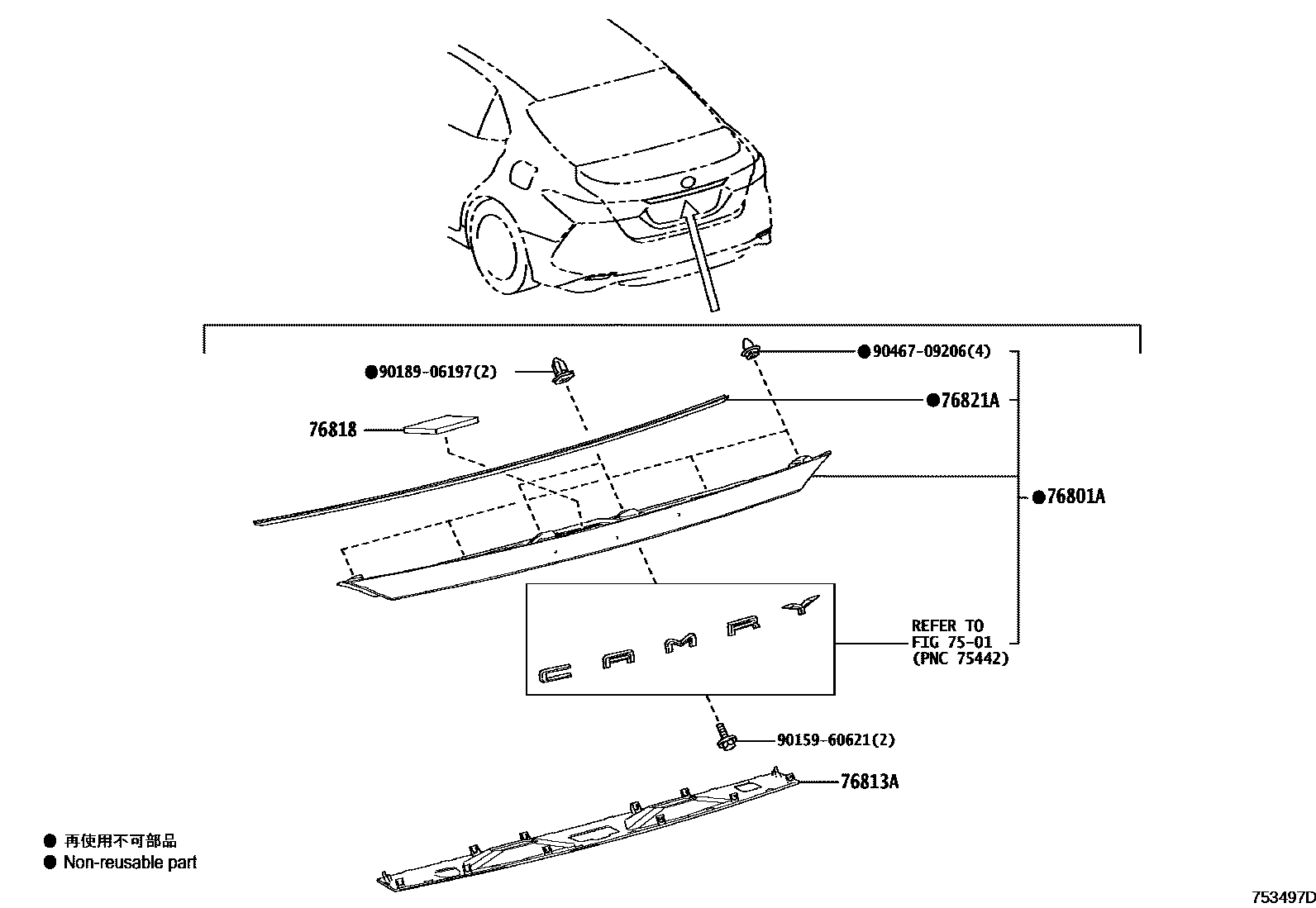

8 parts on this diagram · 1 diagram in section
