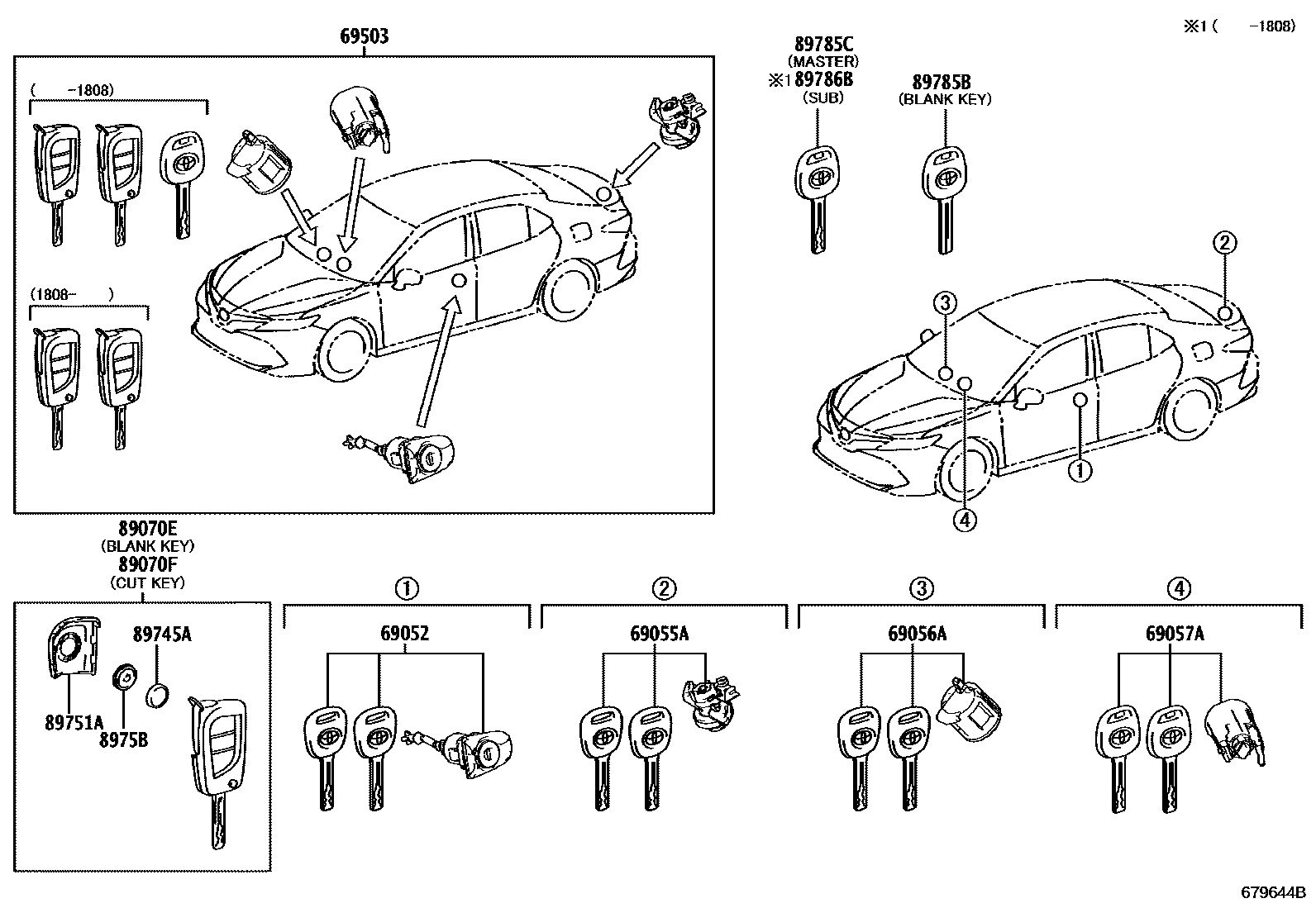

LOCK CYLINDER SET

0001 1W/O(SMART ENTRY) LHD 0002 1W/O(SMART ENTRY) RHD 0003 1W(SMART ENTRY) LHD 0004 1W(SMART ENTRY) RHD

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-33400iMXVA71;AXVA70..LE202102

main69052-33410iAXVH71,GSV70;AXVA70..GLE,SE202102

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-33500iAXVA70..LE;AXVA70,MXVA71..D202102

main69055-33510iASV70..N,V;AXVH7#,GSV70;ASV70,AXVA70..GLE,SE201709-202101

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-30240iAXVA70..LE;AXVA70,MXVA71..D202102

main69056-30270iASV70..N,V;AXVH7#,GSV70;ASV70,AXVA70..GLE,SE201709-202101

69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK

main69057-33410iASV70..D;ASV70,AXVA70..LE201712-202101

69503CYLINDER SET, LOCK

main69005-33E20supersedes 89704-33B70iAXVH71,GSV70;AXVA70..GLE,SE202102

main69005-33E40iASV70..N,V;AXVH7#,GSV70..ARL201709-202101

main89704-33B00iASV70,AXVA70..LE201712-201808

main89704-33B30iASV70..D201712-201808

main89704-33B31supersedes 89704-33B33iASV70..D..ARL201808-202101

main89704-33B80iAXVA70..LE202102

main89704-33B70iASV70..TAIW201810-202101

2AR G PACKAGE(TAIWAN SPEC)

89070ETRANSMITTER ASSY, DOOR CONTROL

main89070-33F00iASV70..D201712-201808

main89070-33F01iASV70..D..ARL201808-202101

main89070-33F20iASV70..LE201712-201808

main89070-33F21iAXVA70..LE202102

main89070-33J00iASV70..TAIW201810-202101

2AR G PACKAGE(TAIWAN SPEC)

89070FTRANSMITTER ASSY, DOOR CONTROL (CUT KEY)

main89070-33F60iASV70..D201712-201808

main89070-33F61iASV70..D..ARL201808-202101

main89070-33F80iASV70,AXVA70..LE201712-201808

main89070-33F81iAXVA70..LE202102

main89070-33J10iMXVA71202102-202406

TW 2.0 G

89745ABATTERY, TRANSMITTER

main89745-50020iASV70..D;ASV70,AXVA70..LE201712-202101

CR2032

89751ACOVER, TRANSMITTER HOUSING

main89751-33200×2iASV70..D;ASV70,AXVA70..LE201712-202101

8975BCOVER, TRANSMITTER BATTERY HOUSING

main8975B-33050×2iASV70..D;ASV70,AXVA70..LE201712-202101

89785BTRANSMITTER, TRANSPONDER KEY MASTER

main89785-12140iASV70..D;ASV70,AXVA70..LE201712-202101

BLANK KEY

89785CTRANSMITTER, TRANSPONDER KEY MASTER

main89785-12150iASV70..D;ASV70,AXVA70..LE201712-202101

CUT KEY

89786BTRANSMITTER, TRANSPONDER KEY SUB

main89786-33060iASV70,AXVA70..LE201712-201808

CUT KEY,CUT KEY

13 parts on this diagram · 4 diagrams in section
