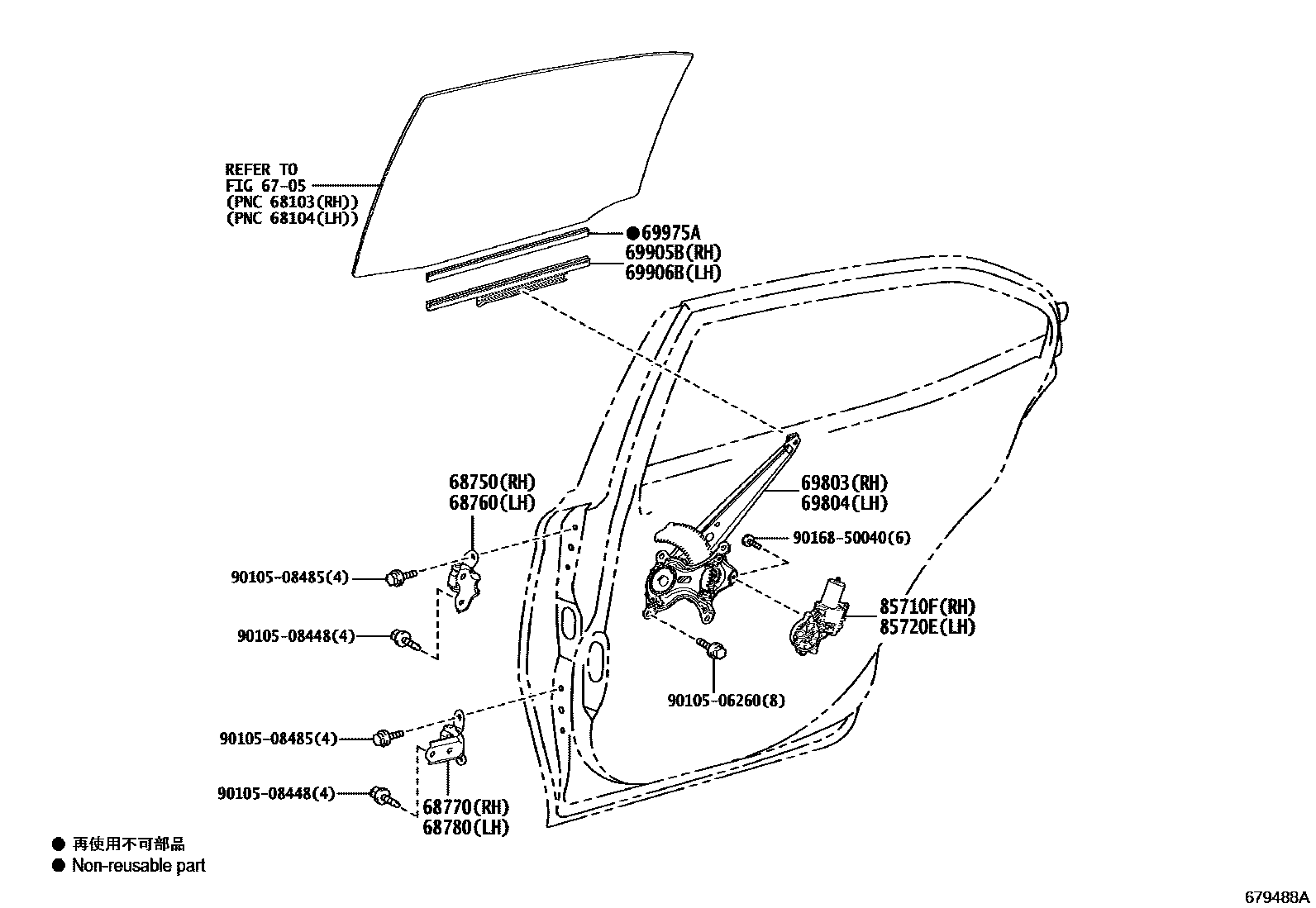

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20122iASV70,AXVA70,AXVH7#,GSV70201709-202101

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20122iASV70,AXVA70,AXVH7#,GSV70201709-202101

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-33050iASV70,AXVA70,AXVH7#,GSV70201709-202101

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-33050iASV70,AXVA70,AXVH7#,GSV70201709-202101

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-33070iASV70,AXVA70,AXVH7#,GSV70201709-202101

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-33070iASV70,AXVA70,AXVH7#,GSV70201709-202101

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-33020iASV70,AXVA70,AXVH7#,GSV70201709-202101

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-33020iASV70,AXVA70,AXVH7#,GSV70201709-202101

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-33010×2iASV70,AXVA70,AXVH7#,GSV70201709-202101

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-33300iASV70,AXVA70,AXVH7#,GSV70201709-202101

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-33290iASV70,AXVA70,AXVH7#,GSV70201709-202101

9010506260

main90105-06260

9010508448

main90105-08448

9010508485

main90105-08485

9016850040

main90168-50040

16 parts on this diagram · 1 diagram in section
