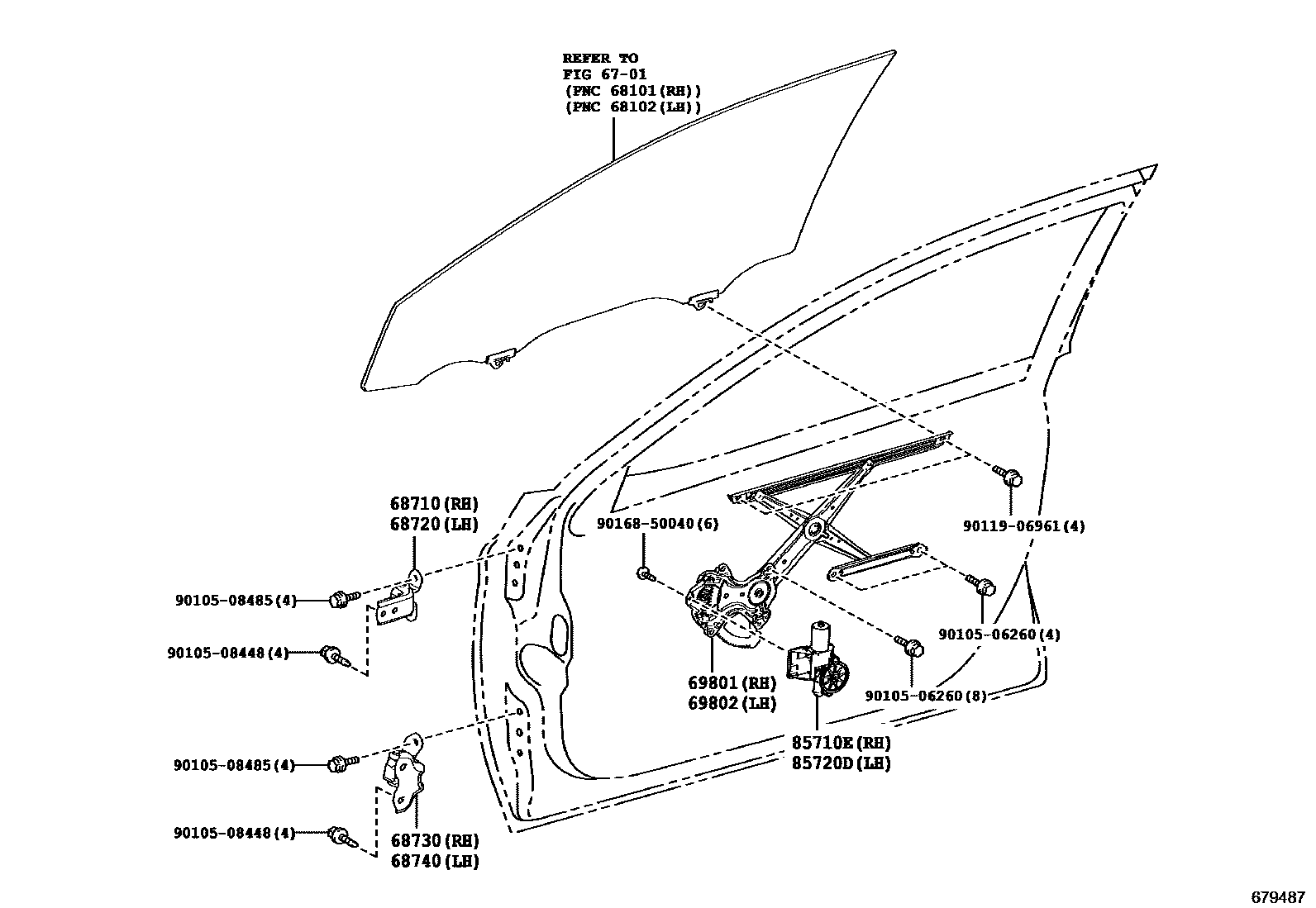

FRONT DOOR WINDOW REGULATOR & HINGE

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151iASV70,AXVA70,AXVH7#,GSV70201709-202101

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151iASV70,AXVA70,AXVH7#,GSV70201709-202101

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120iASV70,AXVA70,AXVH7#,GSV70201709-202101

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120iASV70,AXVA70,AXVH7#,GSV70201709-202101

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-52140iASV70,AXVA70,AXVH7#,GSV70201709-202101

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-52130iASV70,AXVA70,AXVH7#,GSV70201709-202101

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-33240iASV70,AXVA70,AXVH7#,GSV70201709-202101

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-33290iASV70,AXVA70,AXVH7#,GSV70201709-202101

9010506260

main90105-06260

9010508448

main90105-08448

9010508485

main90105-08485

9011906961

main90119-06961

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
