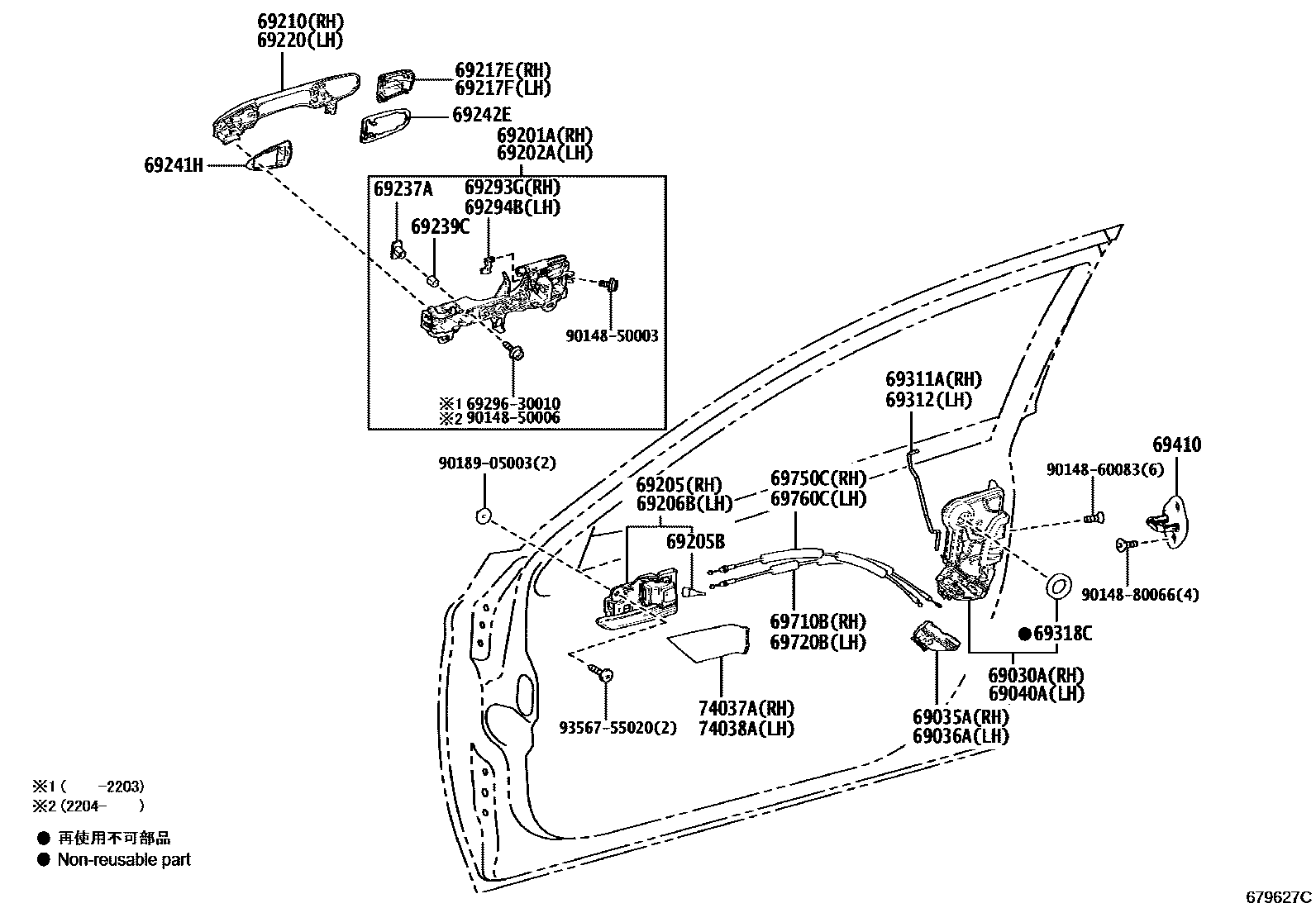

FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
KOREA SPEC&LE PACKAGE(KOREA SPEC)
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
KOREA SPEC&LE PACKAGE(KOREA SPEC)
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
PLATED
PLATED; PLATED,2AR G PACKAGE(TAIWAN SPEC); PLATED,LIMITED
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089 ,2PS
SILVER ME.,1F7
ATTITUDE BLACK MC.,218
EMOTIONAL RED,3T7
EMOTIONAL RED 2,3U5
EMOTIONAL RED 3,3U9
STEEL BLONDE,4X1
GRAPHITE ME.,4X7
DK.BLUE M.M.,2RC ,8W7; DK.BLUE M.M.,8W7
PRECIOUS METAL,1L5
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089 ,2PS
SILVER ME.,1F7
ATTITUDE BLACK MC.,218
EMOTIONAL RED,2PG ,3T7; EMOTIONAL RED,3T7
EMOTIONAL RED 2,2SC ,3U5; EMOTIONAL RED 2,3U5
EMOTIONAL RED 3,2XM ,3U9; EMOTIONAL RED 3,3U9
STEEL BLONDE,4X1
GRAPHITE ME.,4X7
YANMER BEIGE,4Q0
DK.BLUE M.M.,8W7
PRECIOUS METAL,1L5
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
PRECIOUS METAL,1L5
ATTITUDE BLACK MC.,218
EMOTIONAL RED,3T7
EMOTIONAL RED 2,3U5
EMOTIONAL RED 3,3U9
STEEL BLONDE ME.,4X1
GRAPHITE ME.,4X7
DK.BLUE M.M.,8W7
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
ATTITUDE BLACK MC.,218
EMOTIONAL RED,3T7
EMOTIONAL RED 2,3U5
EMOTIONAL RED 3,3U9
STEEL BLONDE,4X1
GRAPHITE ME.,4X7
YANMER BEIGE,4Q0
DK.BLUE M.M.,8W7
PRECIOUS METAL,1L5
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
PLATED
PLATED; PLATED,2AR G PACKAGE(TAIWAN SPEC); PLATED,LIMITED
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089 ,2PS
SILVER ME.,1F7
ATTITUDE BLACK MC.,218
EMOTIONAL RED,2PG ,3T7; EMOTIONAL RED,3T7
EMOTIONAL RED 2,2SC ,3U5; EMOTIONAL RED 2,3U5
EMOTIONAL RED 3,2XM ,3U9; EMOTIONAL RED 3,3U9
STEEL BLONDE,4X1
GRAPHITE ME.,4X7
YANMER BEIGE,4Q0
DK.BLUE M.M.,8W7
PRECIOUS METAL,1L5
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089; PLATINUM WHITE PEARL MC.,089 ,2PS
SILVER ME.,1F7
ATTITUDE BLACK MC.,218
EMOTIONAL RED,3T7
EMOTIONAL RED 2,2SC ,3U5; EMOTIONAL RED 2,3U5; NEW ZEALAND SPEC&WIRELESS DOOR LOCK-W(SMARTS ENTRY),EMOTIONAL RED 2,3U5
EMOTIONAL RED 3,3U9
STEEL BLONDE,4X1
GRAPHITE ME.,4X7
DK.BLUE M.M.,2RC ,8W7; DK.BLUE M.M.,8W7
PRECIOUS METAL,1L5
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
PRECIOUS METAL,1L5
ATTITUDE BLACK MC.,218
EMOTIONAL RED,3T7
EMOTIONAL RED 2,3U5
EMOTIONAL RED 3,3U9
STEEL BLONDE ME.,4X1
GRAPHITE ME.,4X7
YANMER BEIGE,4Q0
DK.BLUE M.M.,8W7
SUPER WHITE 2,040
PLATINUM WHITE PEARL MC.,089
SILVER ME.,1F7
ATTITUDE BLACK MC.,218
EMOTIONAL RED,3T7
EMOTIONAL RED 2,3U5
EMOTIONAL RED 3,3U9
STEEL BLONDE,4X1
GRAPHITE ME.,4X7
DK.BLUE M.M.,8W7
PRECIOUS METAL,1L5
69237ANUT, FRONT DOOR HANDLE
69239CBUSH, FRONT DOOR HANDLE
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
74037ACOVER SUB-ASSY, FRONT DOOR ARMREST, RH
74038ACOVER SUB-ASSY, FRONT DOOR ARMREST, LH
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014850006
main90148-50006
9014860083
main90148-60083
9014880066
main90148-80066
9018905003
main90189-05003
9356755020
main93567-55020
36 parts on this diagram · 1 diagram in section
