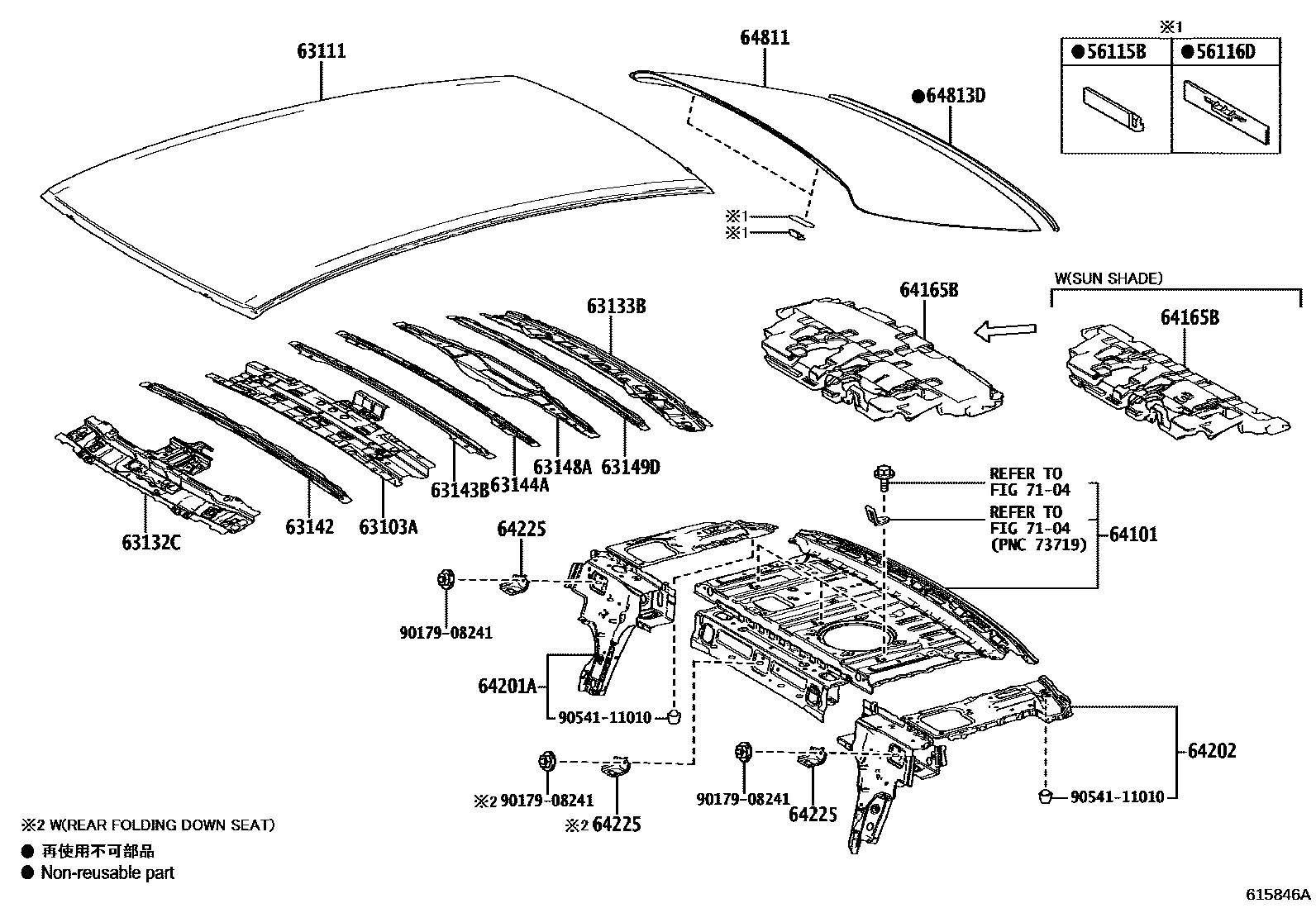

ROOF PANEL & BACK WINDOW GLASS
56115BSTOPPER, BACK WINDOW GLASS, NO.1
56116DSTOPPER, BACK WINDOW GLASS, NO.2
63103AREINFORCEMENT SUB-ASSY, ROOF PANEL
MOON ROOF-WITHOUT&REAR PERSONAL LAMP-WITHOUT
LE PACKAGE(KOREA SPEC)
63111PANEL, ROOF
ATARA SL&MOON ROOF-WITH(TILT & SLIDE)
63132CPANEL, WINDSHIELD HEADER, INNER
MOON ROOF-WITH(PANORAMA ROOF)
MOON ROOF-WITHOUT&REAR PERSONAL LAMP-WITHOUT
ATARA SL&MOON ROOF-WITH(TILT & SLIDE)
63133BFRAME, BACK WINDOW
63142REINFORCEMENT, ROOF PANEL, NO.2
MOON ROOF-WITHOUT&REAR PERSONAL LAMP-WITHOUT
63143BREINFORCEMENT, ROOF PANEL, NO.3
63144AREINFORCEMENT, ROOF PANEL, NO.4
63148AREINFORCEMENT, ROOF PANEL, NO.7
63149DREINFORCEMENT, ROOF PANEL, NO.8
64101PANEL SUB-ASSY, UPPER BACK
64165BCOVER, UPPER BACK PANEL HOLE, NO.1
AUDIO-9INCH & *DA & 9SPEAKAR & JBL
CONVENIENT PACKAGE
AUDIO-9INCH & *DA & 9SPEAKAR & JBL; CONVENIENT PACKAGE; GLE&CONVENIENT PACKAGE; LIMITED; TW HV Q
64201AEXTENSION SUB-ASSY, PACKAGE TRAY, RH
64202EXTENSION SUB-ASSY, PACKAGE TRAY, LH
64225HANGER, REAR SEAT CUSHION SUPPORT
64811GLASS, BACK WINDOW
KOREA SPEC&LE PACKAGE(KOREA SPEC)
64813DDAM, BACK WINDOW GLASS ADHESIVE
7104SEAT BELT & CHILD RESTRAINT SEAT
9017908241
main90179-08241
9054111010
main90541-11010
21 parts on this diagram · 5 diagrams in section
