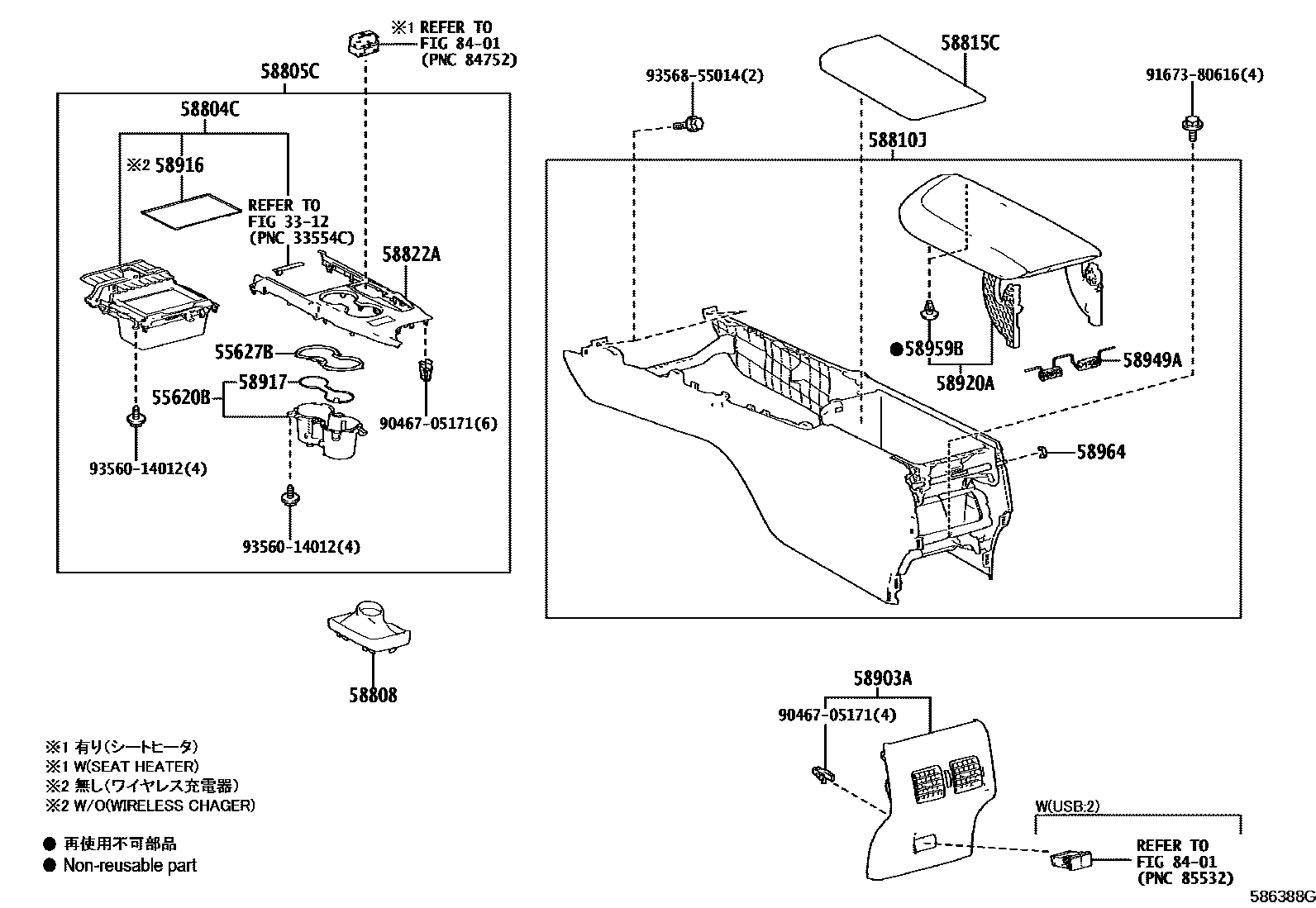

CONSOLE BOX & BRACKET

0001 1 0002 1 0003 1 0004 1

3312

55620BHOLDER, INSTRUMENT PANEL CUP

main55620-33390iAXVA70,AXVH71,GSV70,MXVA71..LHD201712-202101

main55620-33400iAXVA70,AXVH70..ARL201709-202101

55627BRAIL, CONSOLE BOX CUP HOLDER

main55627-33010iAXVA70,AXVH71..GCC201712-202101

main55627-33020iGSV70;AXVH71,MXVA71..TAIW,TAKR202102

LIMITED

main55627-33020iGSV70..GCC;ASV70,AXVH71..TAIW,TAKR201712-202101

main55627-33020iAXVH71..GCC202102

LIMITED&EXCLUSIVE PACKAGE

main55627-33030iAXVA70,AXVH70..D201709-202101

main55627-33040iAXVH70..V202102

ATARA SL

main55627-33040iASV70..V;GSV70..ARL201712-202101

58804CINSERT SUB-ASSY, CONSOLE BOX, FRONT

main58804-33840iGSV70..SE;AXVA70,AXVH71,MXVA71..LHD202102

main58804-33A30iGSV70..SE;ASV70,AXVA70,AXVH71..LHD201712-202101

main58804-33A40iGSV70..LIMD201712-201903

main58804-33A41iAXVH71..GCC202102-202208

LIMITED&EXCLUSIVE PACKAGE

main58804-33A41iGSV70..LIMD201903-202101

EXCLUSIVE PACKAGE&LIMITED

main58804-33A41iGSV70..LIMD201903-202208

LIMITED

main58804-33A50iAXVH7#..ARL;ASV70..(D,N)..ARL201709-202101

main58804-33A60iASV70..V;GSV70..ARL201712-202101

main58804-33A70iGSV70..LIMD202208

LIMITED&EXCLUSIVE PACKAGE

main58804-33A70iAXVH71..GCC202208

LIMITED

main58804-33B50iAXVA70,AXVH70..ARL202102

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-33430-C0iAXVH71..GCC;ASV70,AXVA70..GLE,LE201712-201902

BLACK,TRIM1#,2#

sub58805-33431

main58805-33430-C0iASV70,AXVA70..SE201712-201902

BLACK,TRIM1#,2#,4#

sub58805-33431

main58805-33431-C0iAXVH71..GCC;ASV70,AXVA70..GLE,LE201903-202101

BLACK,TRIM1#

main58805-33431-C0iASV70,AXVA70..SE201903-202101

BLACK,TRIM1#,2#,4#

main58805-33480-C1iASV70,GSV70..V201712-202101

BLACK,TRIM2#,3#

main58805-33570-C1iGSV70..SE201712-202101

BLACK,TRIM1#,2#,3#

main58805-33620-C0iAXVH7#..ARL;ASV70..(D,N)..ARL201709-202101

BLACK,TRIM2#

main58805-33650-C1iGSV70..N201712-202101

BLACK,TRIM2#,4#

main58805-33700-C1iGSV70..LIMD201712-202101

BLACK,TRIM1#,2#,4#

main58805-33710-E1iASV70,AXVH71..TAIW,TAKR201808-202101

TIGER EYE,TRIM2#,4#

main58805-33880iAXVH70..V202102

main58805-33A70iGSV70..LIMD202208

LIMITED

main58805-33B00iAXVA70,AXVH71..GCC202102

main58805-33B30iGSV70..SE202102

main58805-33B40iGSV70..LIMD202102-202208

LIMITED

main58805-33B60iAXVH71,MXVA71..TAIW,TAKR202102

main58805-33B90iAXVA70,AXVH70..D202102

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-33110-C0iGSV70..SE201712-201807

BLACK,TRIM1#,2#,3#

sub58808-33111

main58808-33110-C0iGSV70..SE201712-201807

BLACK,TRIM1#,2#

sub58808-33111

main58808-33110-C0iGSV70..SE201712-201807

BLACK,TRIM1#,2#,4#

sub58808-33111

main58808-33111-C0iAXVA70..SE201808-202101

BLACK,TRIM1#

main58808-33111-C0iGSV70..SE201808-202101

BLACK,TRIM1#,2#,3#

main58808-33111-C0iGSV70..SE201808-202101

BLACK,TRIM1#,2#,4#

main58808-33111-C0iGSV70..SE201808-202101

BLACK,TRIM2#,4#

main58808-33130-C0iASV70..D201712-201801

BLACK,TRIM2#,3#

sub58808-33131

main58808-33130-C0iAXVH71;GSV70..N201709-201801

BLACK,TRIM2#,4#

sub58808-33131

main58808-33130-C0iASV70,GSV70..V201712-201801

BLACK,TRIM2#

sub58808-33131

main58808-33131-C0iAXVA70,AXVH70..D201801-202101

BLACK,TRIM2#

main58808-33131-C0iAXVA70,AXVH70..D201801-202101

BLACK,TRIM2#,3#

main58808-33131-C0iGSV70..N201801-202101

BLACK,TRIM2#,4#

58810JBOX ASSY, CONSOLE

main58810-33330-A4iAXVH71..GCC;ASV70,AXVA70..GLE,LE201712-202101

FROMAGE,TRIM4#

main58810-33330-B3iASV70,AXVA70,AXVH71..GCC201712-202101

GRAY,TRIM1#

main58810-33330-C5iAXVH71..GCC;AXVA70..GLE,LE201712-202101

SOFT BLACK,TRIM2#

main58810-33340-C5iAXVA70,AXVH70..D201709-202101

SOFT BLACK,TRIM2#

main58810-33400-21iAXVH71..GCC202102

CONVENIENT PACKAGE,BLACK/SOFT BLACK/DK.GRAY,TRIM2#

main58810-33400-21iAXVH71..GCC202102

BLACK/SOFT BLACK/DK.GRAY,TRIM20

main58810-33400-21iAXVH71..GCC202102

GLE&CONVENIENT PACKAGE,BLACK/SOFT BLACK/DK.GRAY,TRIM2#

main58810-33400-21iAXVH71..GCC202102

LIMITED,BLACK/SOFT BLACK/DK.GRAY,TRIM2#

main58810-33400-21iAXVA70..GLE202102

BLACK/SOFT BLACK/DK.GRAY,TRIM2#

main58810-33400-22iAXVA70..GLE202209

OCHER/DARK GRAY,TRIM41

main58810-33400-22iAXVA70..GLE202209

CONVENIENT PACKAGE,OCHER/DARK GRAY,TRIM41

main58810-33400-22iAXVA70..GLE202209

LIMITED,OCHER/DARK GRAY,TRIM41

main58810-33400-22iAXVA70..GLE202209

GLE&CONVENIENT PACKAGE,OCHER/DARK GRAY,TRIM41

main58810-33400-A3iGSV70..LIMD;AXVH71..TAKR201712-202101

FROMAGE,TRIM4#

main58810-33400-A4iAXVH71..GCC202102-202209

FROMAGE/DK.GRAY,TRIM4#

main58810-33400-A4iAXVH71..GCC202102-202209

LIMITED,FROMAGE/DK.GRAY,TRIM4#

main58810-33400-A4iAXVH71..GCC202102-202209

CONVENIENT PACKAGE,FROMAGE/DK.GRAY,TRIM4#

main58810-33400-A4iAXVA70..GLE202102-202209

GLE&CONVENIENT PACKAGE,FROMAGE/DK.GRAY,TRIM4#

main58810-33400-A4iAXVH71..GCC202209

FROMAGE/DK.GRAY,TRIM40

main58810-33400-A4iAXVH71..GCC202209

CONVENIENT PACKAGE,FROMAGE/DK.GRAY,TRIM40

main58810-33400-A4iAXVH71..GCC202209

LIMITED,FROMAGE/DK.GRAY,TRIM40

main58810-33400-A4iAXVH71..GCC202209

GLE&CONVENIENT PACKAGE,FROMAGE/DK.GRAY,TRIM40

main58810-33400-B0iGSV70..GCC201712-202101

GRAY,TRIM1#

main58810-33400-B2iGSV70202102

CONVENIENT PACKAGE,GRAY/DK.GRAY,TRIM1#

main58810-33400-B2iGSV70202102

GRAY/DK.GRAY,TRIM1#

main58810-33400-B2iGSV70202102

GLE&CONVENIENT PACKAGE,GRAY/DK.GRAY,TRIM1#

main58810-33400-B2iGSV70202102

LIMITED,GRAY/DK.GRAY,TRIM1#

main58810-33400-C7iGSV70..SE201712-202101

SENSUAL RED,TRIM3#

main58810-33400-C8iMXVA71202102

SOFT BLACK/GRAY,TRIM20

main58810-33400-C8iGSV70..SE201712-202101

SOFT BLACK/GRAY,TRIM2#

main58810-33400-C9iGSV70..LIMD;AXVH71..TAKR201712-202101

SOFT BLACK/C.BROWN,TRIM2#

main58810-33420-A3iGSV70..N201712-202101

FROMAGE,TRIM4#

main58810-33420-C7iAXVH70..V201712-202101

SENSUAL RED,TRIM3#

main58810-33420-C8iASV70,GSV70..V201712-202101

SOFT BLACK/GRAY,TRIM2#

main58810-33420-C9iGSV70..N201712-202101

SOFT BLACK/C.BROWN,TRIM2#

58815CCARPET, CONSOLE BOX

main58815-33170iASV70,AXVA70,AXVH71,GSV70..LHD201712-202101

main58815-33180iASV70,AXVH7#,GSV70..ARL201709-202101

58822APANEL, CONSOLE, UPPER REAR

main58822-33350-C1iASV70,AXVA70..SE201903-202101

BLACK,TRIM1#

main58822-33350-C1iGSV70..SE201712-202101

BLACK,TRIM1#,2#,3#

main58822-33350-C1iGSV70..SE201712-202101

BLACK,TRIM1#,2#,4#

main58822-33350-C1iASV70,AXVA70..SE201712-201903

BLACK,TRIM1#,2#

main58822-33370-C1iASV70,GSV70..V201712-202101

BLACK,TRIM2#,3#

main58822-33370-C1iAXVH7#..ARL;ASV70..(D,N)..ARL201709-202101

BLACK,TRIM2#

main58822-33380-C1iGSV70..N201712-202101

BLACK,TRIM2#,4#

main58822-33390-E1iASV70,AXVH71..TAIW,TAKR201808-202101

TIGER EYE,TRIM2#,4#

main58822-33450iAXVA70,AXVH71,GSV70..GCC202102

main58822-33470iAXVH71,MXVA71..TAIW,TAKR202102

main58822-33490iAXVA70,AXVH70..ARL202102

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-33310-A0iAXVH71..GCC;ASV70,AXVA70..GLE,LE201712-202101

FROMAGE,TRIM4#

main58903-33310-A0iAXVA70..LE202102

FROMAGE,TRIM40

main58903-33310-B0iASV70,AXVA70,AXVH71..GCC201712-202101

NEUTRAL WARM GRAY,TRIM1#

main58903-33310-C0iAXVH71..GCC;AXVA70..GLE202102

BLACK,TRIM2#,41

main58903-33310-C0iAXVH71..GCC;AXVA70..GLE201709-202101

BLACK,TRIM2#

main58903-33330-A0iAXVH71,MXVA71..TAIW,TAKR201712-202101

FROMAGE,TRIM4#

main58903-33330-A0iGSV70..LIMD202102

FROMAGE,TRIM40

main58903-33330-A0iGSV70..LIMD202102

LIMITED,FROMAGE,TRIM40

main58903-33330-B0iGSV70202102

LIMITED,NEUTRAL WARM GRAY,TRIM1#

main58903-33330-B0iGSV70..GCC201712-202101

NEUTRAL WARM GRAY,TRIM1#

main58903-33330-C0iAXVH70..V;GSV70..SE202102

BLACK,TRIM2#,41

main58903-33330-C0iGSV70..SE;ASV70,GSV70..V201712-202101

BLACK,TRIM2#,3#

main58903-33330-C0iGSV70..SE;ASV70,GSV70..V201712-202101

BLACK,TRIM2#

main58903-33330-C0iGSV70..LIMD202102

ATARA SL,BLACK,TRIM2#

main58903-33330-C0iGSV70..LIMD202102

LIMITED,BLACK,TRIM2#,41

58916MAT, BOX BOTTOM

main58916-33120iASV70,AXVA70,AXVH71..GCC201709-202101

58917MAT, BOX BOTTOM, NO.2

main58917-33130iASV70,AXVA70,AXVH7#,GSV70201709-202101

58920AARMREST ASSY, REAR CONSOLE

main58920-33080-A3iAXVH71..GCC;ASV70,AXVA70..GLE,LE201712-202101

FROMAGE,TRIM4#

main58920-33080-B2iASV70,AXVA70,AXVH71..GCC201712-202101

GRAY,TRIM1#

main58920-33080-C4iASV70,AXVA70..GLE,LE;ASV70,AXVH71..D..(GCC,TAIW)201712-202101

SOFT BLACK,TRIM2#

main58920-33090-A2iGSV70..LIMD;AXVH71..TAKR201712-202101

FROMAGE,TRIM4#

main58920-33090-A3iAXVH71..GCC202102-202209

LIMITED,FROMAGE/DK.GRAY,TRIM4#

main58920-33090-A3iAXVH71..GCC202102-202209

CONVENIENT PACKAGE,FROMAGE/DK.GRAY,TRIM4#

main58920-33090-A3iAXVH71..GCC202102-202209

FROMAGE/DK.GRAY,TRIM4#

main58920-33090-A3iAXVH71..GCC202102-202209

GLE&CONVENIENT PACKAGE,FROMAGE/DK.GRAY,TRIM4#

main58920-33090-A3iAXVA70..GLE202209

LIMITED,FROMAGE/DK.GRAY,TRIM40

main58920-33090-A3iAXVA70..GLE202209

GLE&CONVENIENT PACKAGE,FROMAGE/DK.GRAY,TRIM40

main58920-33090-A3iAXVA70..GLE202209

FROMAGE/DK.GRAY,TRIM40

main58920-33090-A3iAXVH71..GCC202209

CONVENIENT PACKAGE,FROMAGE/DK.GRAY,TRIM40

main58920-33090-B1iGSV70..GCC201712-202101

GRAY,TRIM1#

main58920-33090-B2iGSV70202102

GLE&CONVENIENT PACKAGE,GRAY/DK.GRAY,TRIM1#

main58920-33090-B2iGSV70202102

GRAY/DK.GRAY,TRIM1#

main58920-33090-B2iGSV70202102

LIMITED,GRAY/DK.GRAY,TRIM1#

main58920-33090-B2iAXVA70..GLE202102

CONVENIENT PACKAGE,GRAY/DK.GRAY,TRIM1#

main58920-33090-C5iGSV70..SE201712-202101

SOFT BLACK/GRAY,TRIM2#

main58920-33090-C5iGSV70..SE202102

SOFT BLACK/GRAY,TRIM20

main58920-33090-C6iGSV70..LIMD;AXVH71..TAKR201712-202101

SOFT BLACK/C.BROWN,TRIM2#

main58920-33090-C8iAXVH71..GCC202102

SOFT BLACK/DK.GRAY,TRIM2#

main58920-33090-C8iGSV70..LIMD;AXVH71..TAKR202102

SOFT BLACK/DK.GRAY,TRIM20

main58920-33090-C8iGSV70..LIMD;AXVH71..TAKR202102

GLE&CONVENIENT PACKAGE,SOFT BLACK/DK.GRAY,TRIM2#

main58920-33090-C8iGSV70..LIMD;AXVH71..TAKR202102

LIMITED,SOFT BLACK/DK.GRAY,TRIM2#

main58920-33090-C8iGSV70..LIMD;AXVH71..TAKR202102

CONVENIENT PACKAGE,SOFT BLACK/DK.GRAY,TRIM2#

main58920-33090-D2iGSV70..SE201712-202101

SENSUAL RED,TRIM3#

main58920-33090-E0iAXVA70..GLE202209

GLE&CONVENIENT PACKAGE,OCHER,TRIM41

main58920-33090-E0iAXVA70..GLE202209

CONVENIENT PACKAGE,OCHER,TRIM41

main58920-33090-E0iAXVH71..GCC202209

OCHER,TRIM41

main58920-33090-E0iAXVH71..GCC202209

LIMITED,OCHER,TRIM41

main58920-33100-C5iAXVA70,AXVH70..D201709-202101

SOFT BLACK,TRIM2#

main58920-33110-A2iGSV70..N201712-202101

FROMAGE,TRIM4#

main58920-33110-C5iAXVH70..V201712-202101

SOFT BLACK/GRAY,TRIM2#

main58920-33110-C6iGSV70..N201712-202101

SOFT BLACK/C.BROWN,TRIM2#

main58920-33110-D2iAXVH70..V201712-202101

SENSUAL RED,TRIM3#

58949ASPRING, CONSOLE BOX MOUNTING BRACKET

main58949-33080iASV70,AXVA70,AXVH7#,GSV70201709-202101

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060iASV70,AXVA70,AXVH7#,GSV70201709-202101

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-33040iASV70,AXVA70,AXVH7#,GSV70201709-202101

8401

9046705171

main90467-05171

9167380616

main91673-80616

9356014012

main93560-14012

9356855014

main93568-55014

21 parts on this diagram · 4 diagrams in section
