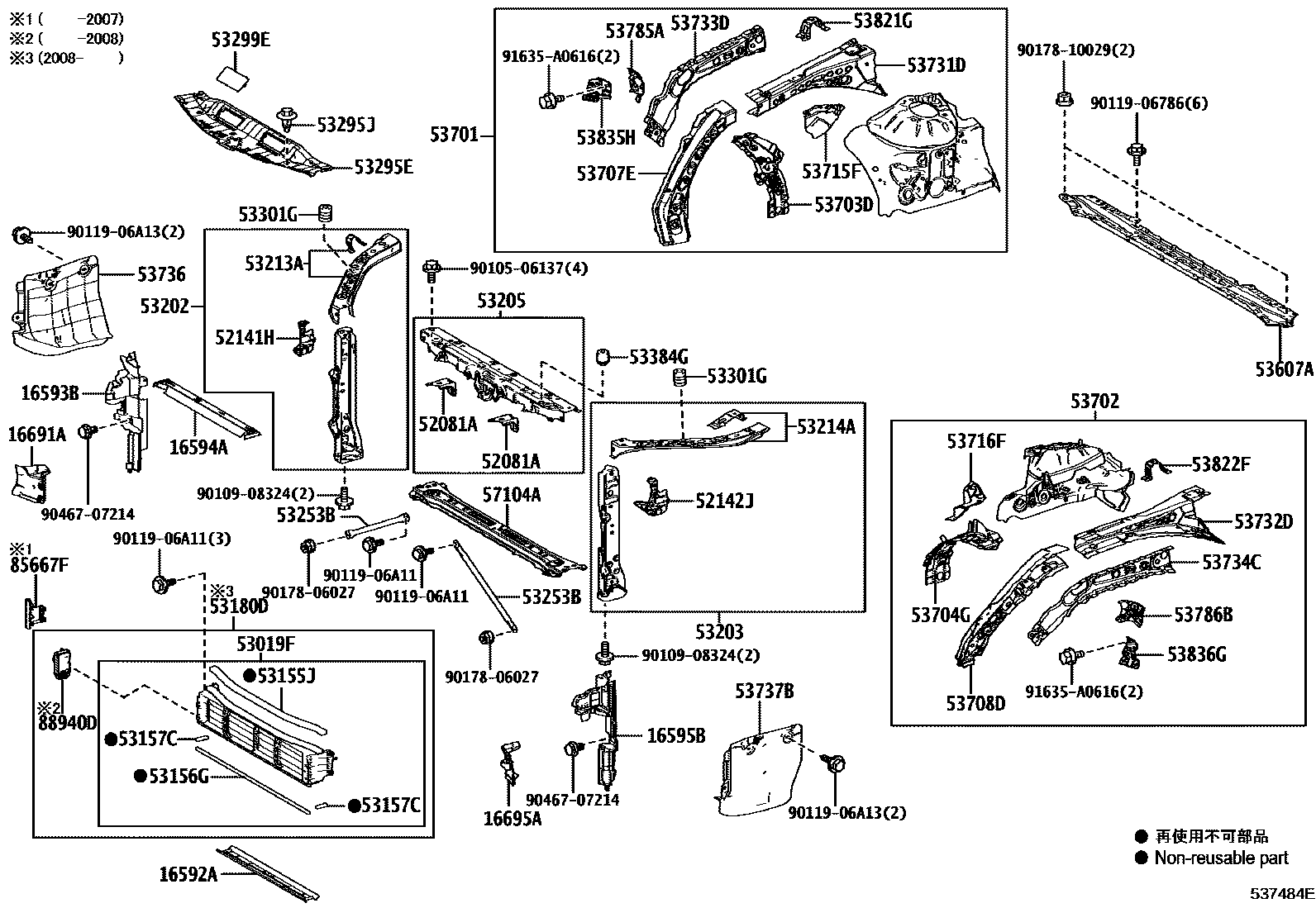

FRONT FENDER APRON & DASH PANEL
16592AGUIDE, RADIATOR AIR, NO.3
16593BGUIDE, RADIATOR AIR, NO.1 RH
main16593-25030iA25AFXS,2ARFE..ASV70,AXVH71..D..(ARL,GCC,TAIW);A25AFKS,2ARFE,2GRFKS..ASV70,AXVA70,GSV70..GLE,LE,LIMD201712-202101
main16593-25040i2ARFE,2GRFKS..ASV70,GSV70..N,V;A25AFKS,2ARFE,2GRFKS..ASV70,AXVA70,GSV70..SE201709-202101
main16593-25080iA25AFKS,2GRFKS..AXVA70,GSV70..GLE,LE,LIMD;A25#,M20AFKS..AXVA70,AXVH71,MXVA71..D..(ARL,GCC,TAIW)202102
ATARA S; ATARA SL
ATARA S; ATARA SL
HEAVY PACKAGE
HEAVY PACKAGE
16594AGUIDE, RADIATOR AIR, NO.2
16595BGUIDE, RADIATOR AIR, NO.1 LH
main16595-25030iA25AFXS,2ARFE..ASV70,AXVH71..D..(ARL,GCC,TAIW);A25AFKS,2ARFE,2GRFKS..ASV70,AXVA70,GSV70..GLE,LE,LIMD201712-202101
main16595-25040i2ARFE,2GRFKS..ASV70,GSV70..N,V;A25AFKS,2ARFE,2GRFKS..ASV70,AXVA70,GSV70..SE201709-202101
main16595-25180iA25AFKS,2GRFKS..AXVA70,GSV70..GLE,LE,LIMD;A25#,M20AFKS..AXVA70,AXVH71,MXVA71..D..(ARL,GCC,TAIW)202102
ATARA S; ATARA SL
ATARA S; ATARA SL
HEAVY PACKAGE
HEAVY PACKAGE
16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH
main16691-25020i2ARFE,2GRFKS..ASV70,GSV70..N,V;A25AFKS,2ARFE,2GRFKS..ASV70,AXVA70,GSV70..SE201709-202101
main16691-25110iA25#,M20AFKS..AXVA70,AXVH7#,MXVA71..D;A25AFKS,2GRFKS..AXVA70,GSV70..GLE,LE,LIMD202102
ATARA S; ATARA SL
ATARA S; ATARA SL
HEAVY PACKAGE
HEAVY PACKAGE
16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH
main16695-25010iA25AFXS..AXVH7#;2ARFE..ASV70..D;A25AFKS,2ARFE,2GRFKS..ASV70,AXVA70,GSV70..GLE,LE,LIMD201712-202101
main16695-25020i2ARFE,2GRFKS..ASV70,GSV70..N,V;A25AFKS,2ARFE,2GRFKS..ASV70,AXVA70,GSV70..SE201709-202101
main16695-25050iA25#,M20AFKS..AXVA70,AXVH7#,MXVA71..D;A25AFKS,2GRFKS..AXVA70,GSV70..GLE,LE,LIMD202102
ATARA S; ATARA SL
HEAVY PACKAGE
HEAVY PACKAGE
52081ASTAY SUB-ASSY, FRONT BUMPER, RH
52141HARM, FRONT BUMPER, UPPER RH
52142JARM, FRONT BUMPER, UPPER LH
53019FSHUTTER SUB-ASSY, RADIATOR
KOREA SPEC&LE PACKAGE(KOREA SPEC)
KOREA SPEC&LE PACKAGE(KOREA SPEC)
53155JSEAL, RADIATOR GRILLE, NO.1
53156GSEAL, RADIATOR GRILLE, NO.2
53157CSEAL, RADIATOR GRILLE, NO.3
53180DSHUTTER ASSY, RADIATOR
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53213ASUPPORT, RADIATOR, UPPER RH
53214ASUPPORT, RADIATOR, UPPER LH
53253BBRACKET, RADIATOR MOUNTING, UPPER
53295ESEAL, COOL AIR INTAKE DUCT
53295JCLIP, COOL AIR INTAKE DUCT SEAL
53299EPLATE, COOL AIR INTAKE DUCT
53301GCUSHION, HOOD BUMPER
53384GCUSHION, HOOD, CENTER
53607ABRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53703DAPRON SUB-ASSY, FRONT FENDER, NO.2 RH
53704GAPRON SUB-ASSY, FRONT FENDER, NO.2 LH
53707EAPRON SUB-ASSY, FENDER SIDE, RH
53708DAPRON SUB-ASSY, FENDER SIDE, LH
53715FAPRON, FENDER SIDE, RH
53716FAPRON, FENDER SIDE, LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53736SEAL, FRONT FENDER APRON, RH
53737BSEAL, FRONT FENDER APRON, LH
53785AGUSSET, FRONT FENDER APRON, UPPER RH
53786BGUSSET, FRONT FENDER APRON, UPPER LH
53821GBRACKET, FRONT FENDER, REAR RH
53822FBRACKET, FRONT FENDER, REAR LH
53835HBRACE, FRONT FENDER TO EXTENSION, RH
53836GBRACE, FRONT FENDER TO EXTENSION, LH
57104AMEMBER SUB-ASSY, FRONT CROSS
85667FCOVER, MOTOR
KOREA SPEC&LE PACKAGE(KOREA SPEC)
88940DACTUATOR ASSY, SWING GRILLE
KOREA SPEC&LE PACKAGE(KOREA SPEC)
9010506137
main90105-06137
9010908324
main90109-08324
9011906786
main90119-06786
9011906A11
main90119-06A11
9011906A13
main90119-06A13
9017806027
main90178-06027
9017810029
main90178-10029
9046707214
main90467-07214
91635A0616
main91635-A0616
58 parts on this diagram · 5 diagrams in section
