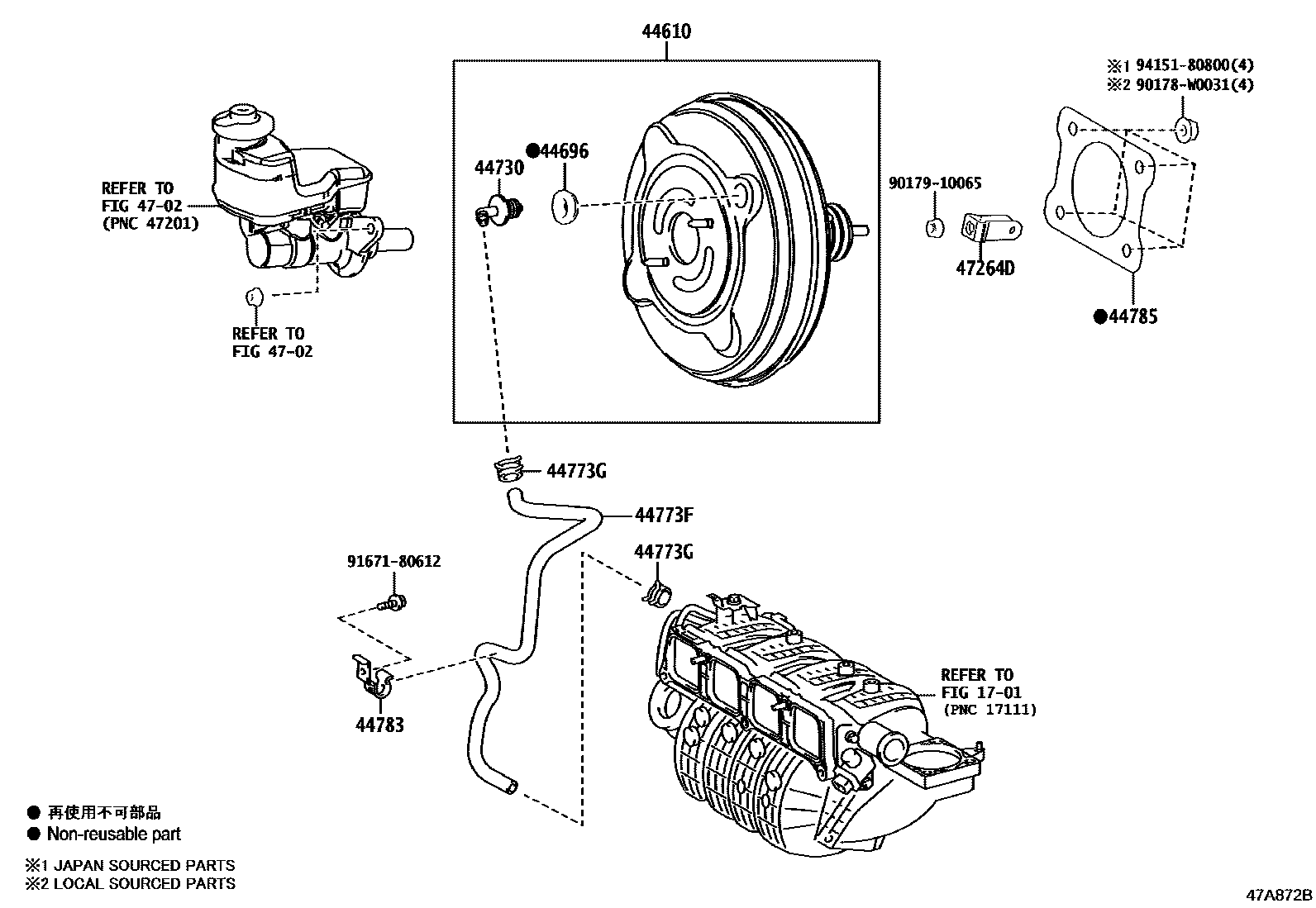

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-33B20iAXVA70201712-202101

main44610-33B30iASV70..LHD201712-202101

main44610-33B40iGSV70..GCC201712-202101

main44610-33B50iGSV70..ARL201712-202101

main44610-33B60iASV70..ARL201709-202101

main44610-33C30iAXVA70,MXVA71..LHD202102

main44610-33C50iGSV70202102

main44610-33C60iAXVA70..ARL202102

44696GROMMET, CHECK VALVE

main90480-24439iASV70201709-202101

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12040iASV70,GSV70..ARL201709-202101

main44730-22150iAXVA70,GSV70..GCC201712-202101

main44730-30060iAXVA70,GSV70,MXVA71..LHD202102

main44730-60070iASV70..LHD201712-202101

44773FHOSE, UNION TO CHECK VALVE

main44773-33180iAXVA70201712-202101

main44773-33190iGSV70202102

main44773-33210iGSV70..ARL201712-202101

main44773-33220iASV70..ARL201709-202101

main44773-33260iAXVA70,MXVA71..LHD202107

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014×2iASV70..ARL;AXVA70,GSV70201709-202101

44783CLAMP, VACUUM HOSE

main44783-42030iASV70201709-202101

44785GASKET, BRAKE BOOSTER

main44785-05020iAXVA70,GSV70,MXVA71202102

#,(L)

main44785-12040iASV70,AXVA70,GSV70201709-202101

#,(J)

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-33030iASV70,AXVA70,GSV70201709-202101

90178W0031

main90178-W0031

9017910065

main90179-10065

9167180612

main91671-80612

9415180800

main94151-80800

14 parts on this diagram · 6 diagrams in section
