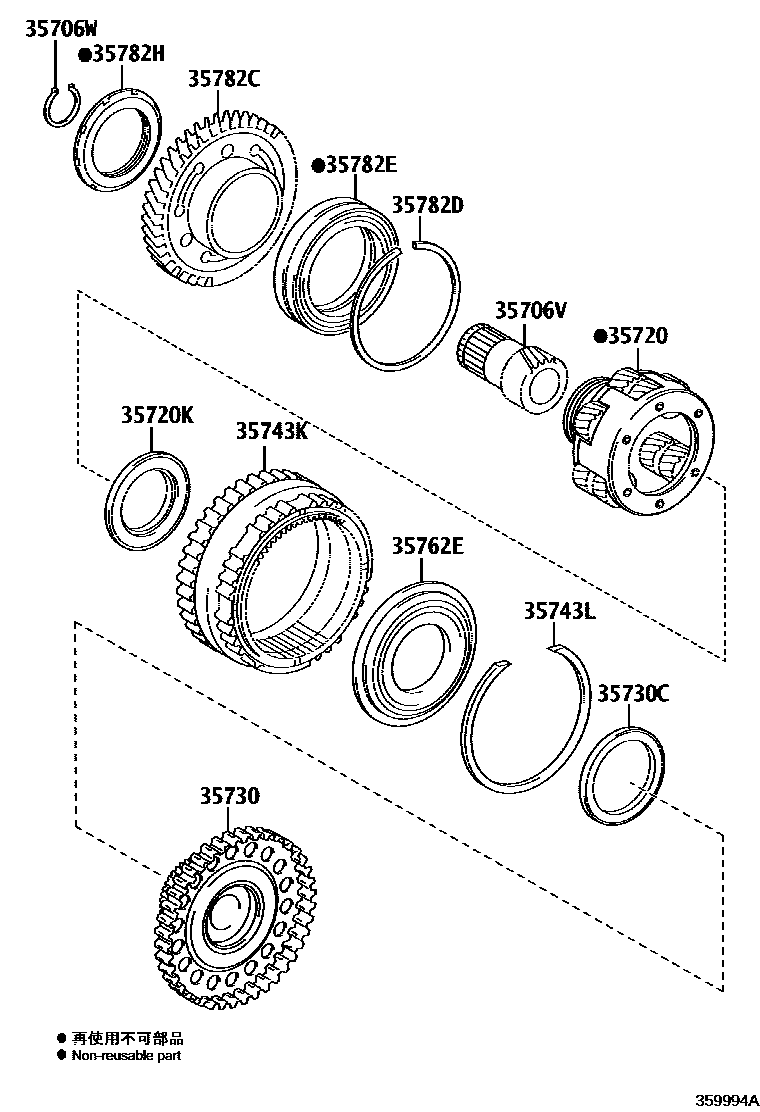

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35706VGEAR SUB ASSY, PLANETARY SUN
AISIN:REFER 35-01
AISIN AW:REFER 35-01
(J)
35706WRING, SNAP (FOR PLANETARY SUN GEAR)
35720GEAR ASSY, FRONT PLANETARY
TOYOTA:REFER 35-01
AISIN:REFER 35-01
sub35720-48080
AISIN AW:REFER 35-01
AISIN AW:REFER 35-01
sub35720-33070
35720KBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR)
(J)
35730GEAR ASSY, REAR PLANETARY SUN
35730CBEARING, THRUST NEEDLE(FOR REAR PLANETARY SUN GEAR, NO.2)
(J)
35743GEAR, FRONT PLANETARY RING
35743LRING, SNAP (FOR PLANETARY RING GEAR)
(J)
35762EFLANGE, PLANETARY RING GEAR
35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)
(J)
35782EBEARING(FOR COUNTER DRIVE GEAR)
(J)
35782HNUT(FOR COUNTER DRIVE GEAR)
(J)
14 parts on this diagram · 5 diagrams in section
