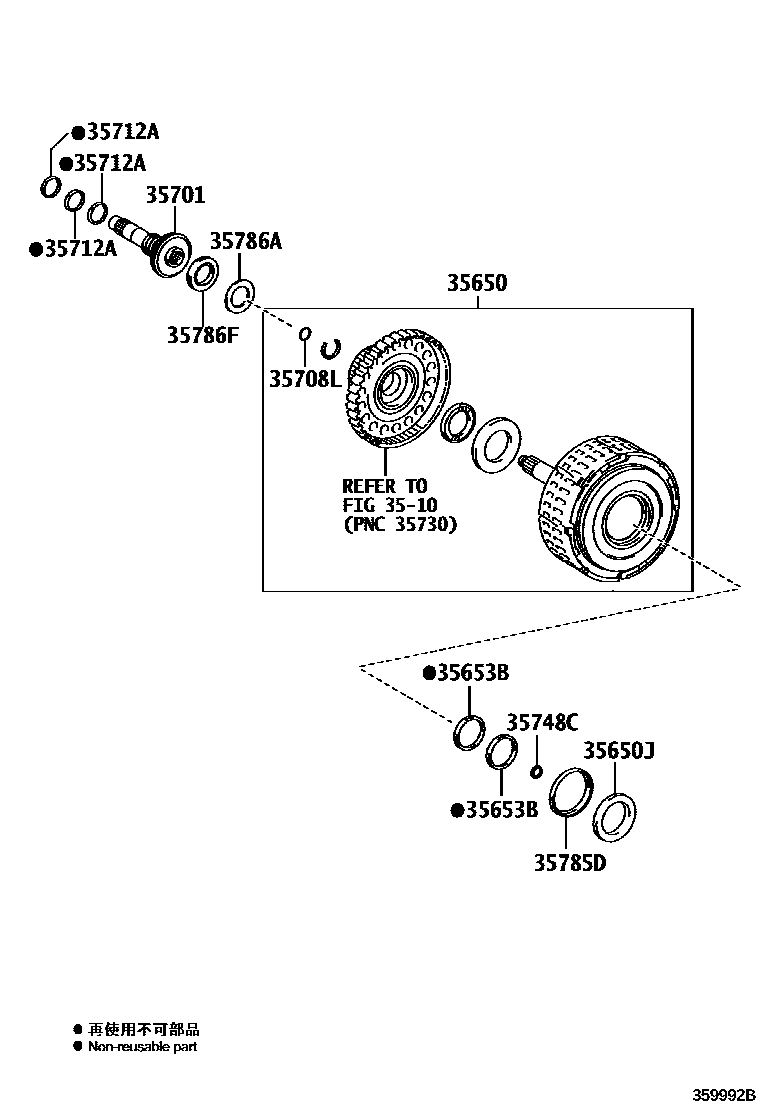

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
3510PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35650CLUTCH ASSY, REAR MULTIPLE DISC
35650JBEARING, THRUST NEEDLE ROLLER (FOR DIRECT DISC CLUTCH)
35653BRING, DIRECT CLUTCH DRUM OIL SEAL
35701SHAFT SUB-ASSY, INPUT
35708LRING, O (FOR INTERMEDIATE SHAFT)
NO.1
NO.2
NO.1
NO.2
35712ARING, INPUT SHAFT OIL SEAL
35748CRING, INTERMEDIATE SHAFT OIL SEAL
35785DRACE, THRUST BEARING, NO.4
35786ARACE, THRUST BEARING, NO.1
35786FBEARING, THRUST NEEDLE ROLLER
11 parts on this diagram · 3 diagrams in section
