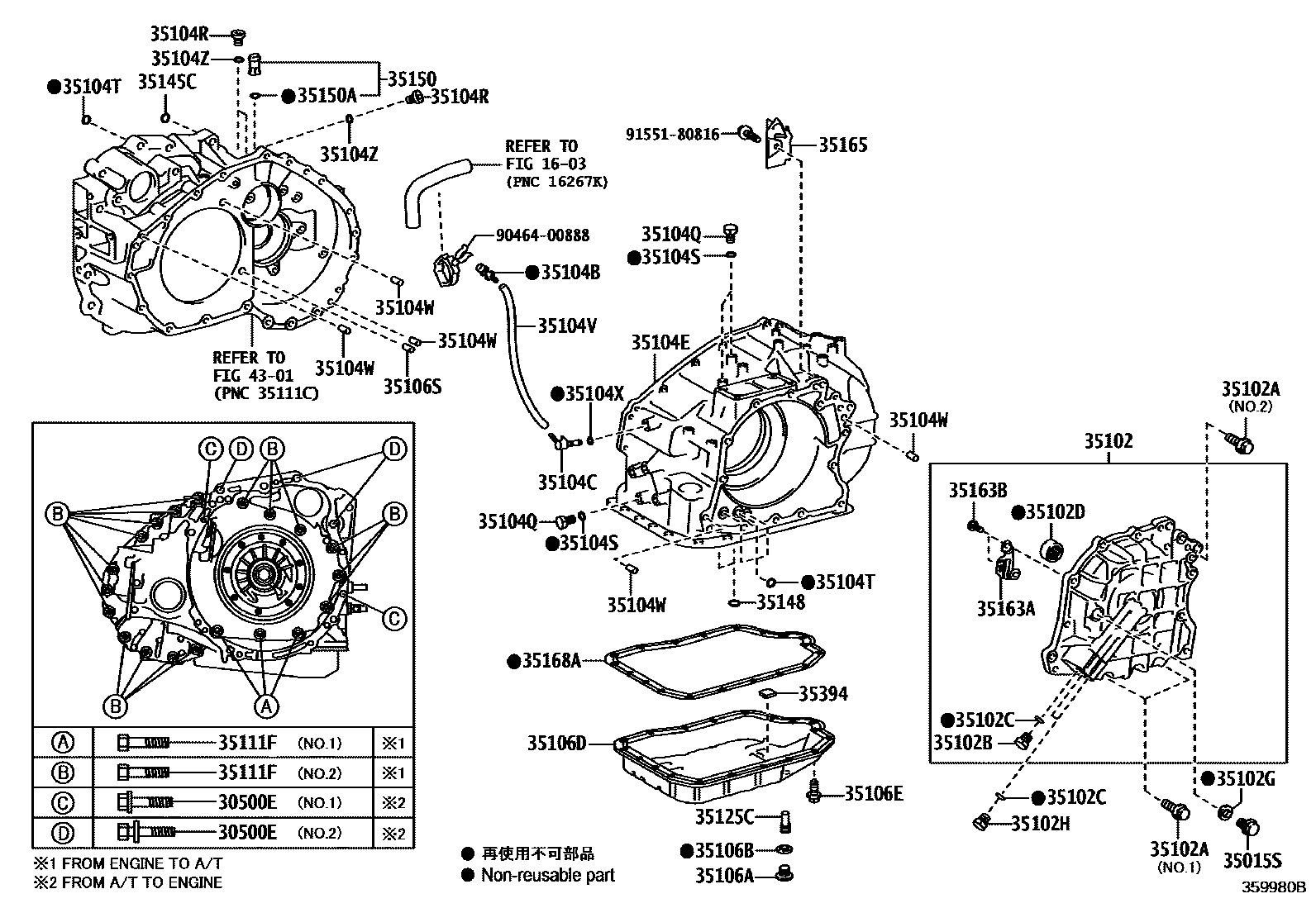

TRANSMISSION CASE & OIL PAN (ATM)

0001 1U760E 0002 1UB80E 0003 1UA80E

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main90105-10425iGSV70201712-202101

*10-1.25PX41-28,(J),NO.2

main90105-10591iAXVA70202102

*10-1.25PX45-36,NO.2

main90105-W0227iGSV70202102-202203

*10-1.25PX41-28,(L),NO.2

main90105-W0228×2iASV70201709-202101

*12-1.25PX50-30,(L),NO.1

main90119-12168×7iGSV70201712-202101

*12-1.25PX55-30,(J),NO.1

main90119-W0080×3iASV70201709-202101

*12-1.25PX55-30,(L),NO.2

main91512-61050×2iASV70201709-202101

*10-1.25PX50-30,(J),NO.1

main91552-81250×2iAXVA70202102

*12-1.25PX50-30,NO.1

main91553-80830iAXVA70201712-202101

*8-1.25PX35-22,NO.3

35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)

main90341-18064iASV70,AXVA70,GSV70201709-202101

35102COVER SUB-ASSY, TRANSAXLE REAR

main35102-33110iASV70..ARL,GCC201709-201811

TOYOTA:REFER 35-01

main35102-33120iASV70..TAIW201810-202101

AISIN AW:REFER 35-01

35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)

main90105-08431×2iASV70201709-202101

*8-1.25PX28-22,NO.1

main91551-00828×12iASV70201709-202101

*8-1.25PX28-22,NO.2

35102BPLUG(FOR TRANSAXLE REAR COVER)

main90341-08001iASV70201709-202101

35102CRING, O(FOR TRANSAXLE REAR COVER PULG)

main90301-06196iASV70201709-202101

NO.1

35102DBEARING, NEEDLE ROLLER(FOR TRANSAXLE REAR COVER)

main90364-18010iASV70201709-202101

35102GGASKET (FOR TRANSAXLE REAR COVER )

main90430-18008iASV70,AXVA70,GSV70201709-202101

35102HPLUG, NO.2 (FOR TRANSAXLE REAR COVER)

main90341-08001×2iASV70201709-202101

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03149iASV70201709-202101

main90930-03216iAXVA70,GSV70201712-202101

NO.1

main90930-03230iAXVA70,GSV70202102

NO.2

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03187iASV70201709-202101

35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE

main35104-33130iAXVA70202102-202403

TOYOTA:REFER 35-01

main35104-33140iAXVA70202102

AISIN:REFER 35-01

main35104-48030iGSV70201712-202004

TOYOTA:REFER 35-01

main35104-48040iGSV70201804-202101

AISIN AW:REFER 35-01

main35141-33141iASV70..ARL,GCC201811-202101

AISIN AW:REFER 35-01

main35141-73011iASV70..ARL,GCC201709-201811

TOYOTA:REFER 35-01

35104QPLUG, NO.1 (FOR TRANSAXLE CASE)

main90341-08001×3iASV70201709-202101

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90341-14015×6iAXVA70; GSV70202102

NO.1

35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)

main90301-06196×2iASV70201709-202101

NO.2

35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)

main90301-10018×4iASV70201709-202101

main90430-14008×3iAXVA70; GSV70201712-202101

NO.1

35104VHOSE (FOR BREATHER PLUG)

main35121-33051iASV70..ARL,GCC201811-202101

AISIN AW:REFER 35-01

main35121-33060iGSV70202102

main35121-33070iAXVA70202102

main35121-73011iASV70..ARL,GCC201709-201811

TOYOTA:REFER 35-01

35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)

main90250-10017×5iASV70201709-202101

35104XRING, O (FOR BREATHER PLUG)

main90301-06021iASV70201709-202101

35104ZGASKET (FOR TRANSAXLE CASE)

main90430-14008×3iAXVA70,GSV70202102

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-12034iASV70201709-202101

35106BGASKET, DRAIN PLUG (ATM)

main90430-12008iASV70201709-202101

35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL

main35106-33070iASV70..ARL,GCC201811-202101

AISIN AW:REFER 35-01

main35106-73010iASV70..ARL,GCC201709-201811

TOYOTA:REFER 35-01

35106EBOLT (FOR TRANSAXLE OIL PAN)

main90119-06173×19iASV70201709-202101

35106SPIN, RING (FOR TRANSAXLE CASE)

main90253-11007iASV70201709-202101

35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)

main90105-08432×3iASV70201709-202101

*8-1.25PX45-22,NO.1

main91551-00835×11iAXVA70; GSV70201712-202101

*8-1.25PX35-22,NO.2; *8-1.25PX35-22,NO.2,TMC:REFER 35-01,NO.2,AISIN:SEE 35-01

main91551-00840×9iAXVA70; GSV70202102

*8-1.25PX40-22,NO.1,AISIN:SEE 35-01

main91551-10845×17iASV70201709-202101

*8-1.25PX45-22,NO.2

35125CTUBE, TRANSMISSION OIL FILLER, NO.1

main35125-33110iAXVA70201712-202101

main35125-48090iGSV70202102

main35125-73010iASV70201709-202101

35145CGASKET, TRANSAXLE CASE

main35145-33010×3iASV70,AXVA70,GSV70201709-202101

main35145-33020×3iGSV70202103

35148GASKET, GOVERNOR APPLY, NO.1

main35145-33010×2iASV70..ARL,GCC201709-202102

35150PLUG ASSY, TRANSMISSION CASE

main35150-44010iASV70,AXVA70,GSV70201709-202101

35150ARING, O (FOR AUTOMATIC TRANSMISSION CASE PLUG)

main90301-09173iASV70,AXVA70,GSV70201709-202101

35163APLATE, TRANSAXLE REAR COVER

main35163-33010iASV70201709-202101

35163BSCREW, HEX LOBULAR(FOR TRANSAXLE REAR COVER PLATE)

main90148-60055×2iASV70201709-202101

35165PLATE, TRANSMISSION CASE, NO.1

main35165-73010iASV70201709-202101

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-73010iASV70201709-202101

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×4iASV70201709-202101

main35394-48010×3iAXVA70,GSV70201712-202101

4301FRONT AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 43-01

9046400888

main90464-00888

9155180816

main91551-80816

40 parts on this diagram · 3 diagrams in section
