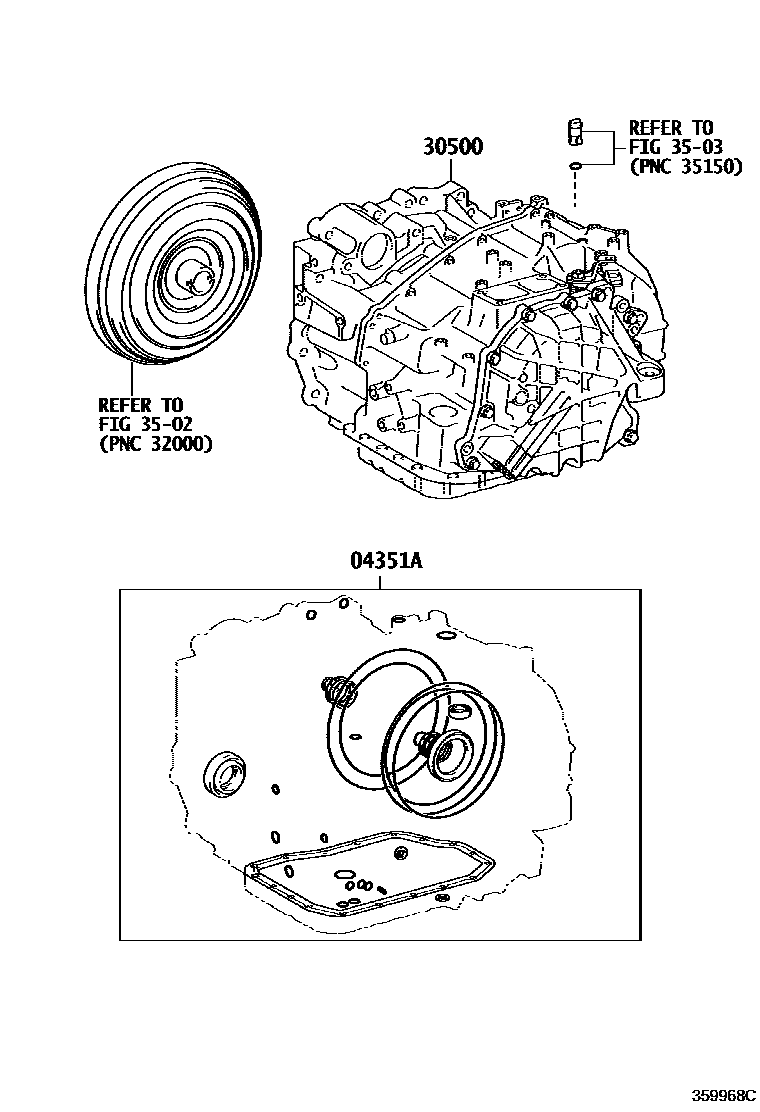

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1U760E 0002 1UB80E 0003 1UA80E 0004 1U760E 0005 1UB80E 0006 1UA80E

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-33532iASV70..ARL,GCC201811-201904

AISIN AW

main04351-33570iGSV70201712-202004

TOYOTA

main04351-33580iAXVA70202102-202103

TOYOTA

main04351-33581iAXVA70202103-202403

TOYOTA

main04351-33590iAXVA70202102-202103

AISIN AW

main04351-33591iAXVA70202103

AISIN AW

main04351-33620iASV70201904-202101

AISIN AW

main04351-45040iGSV70201803-202101

AISIN AW

main04351-45070iGSV70202102-202103

AISIN AW

main04351-45071iGSV70202103

AISIN AW

main04351-48183iASV70..ARL,GCC201709-201811

TOYOTA

30500TRANSAXLE ASSY, AUTOMATIC

main30500-33810iASV70..ARL,GCC201709-201811

U760E,TOYOTA

main30500-33820iASV70..ARL,GCC201811-202101

U760E,AISIN AW

main30500-33851iAXVA70201712-202101

UB80E,TOYOTA

main30500-33860iGSV70201712-201802

UA80E,TOYOTA

main30500-33861iGSV70201802-202004

UA80E,TOYOTA

main30500-33871iAXVA70201712-202101

UB80E,AISIN AW

main30500-33A01iGSV70202102

UA80E,AISIN AW

3502TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

→ Go to FIG 35-02

3503TRANSMISSION CASE & OIL PAN (ATM)

→ Go to FIG 35-03

4 parts on this diagram · 6 diagrams in section
