Toyota CAMRY/HYBRID — EXHAUST GAS RECIRCULATION SYSTEM

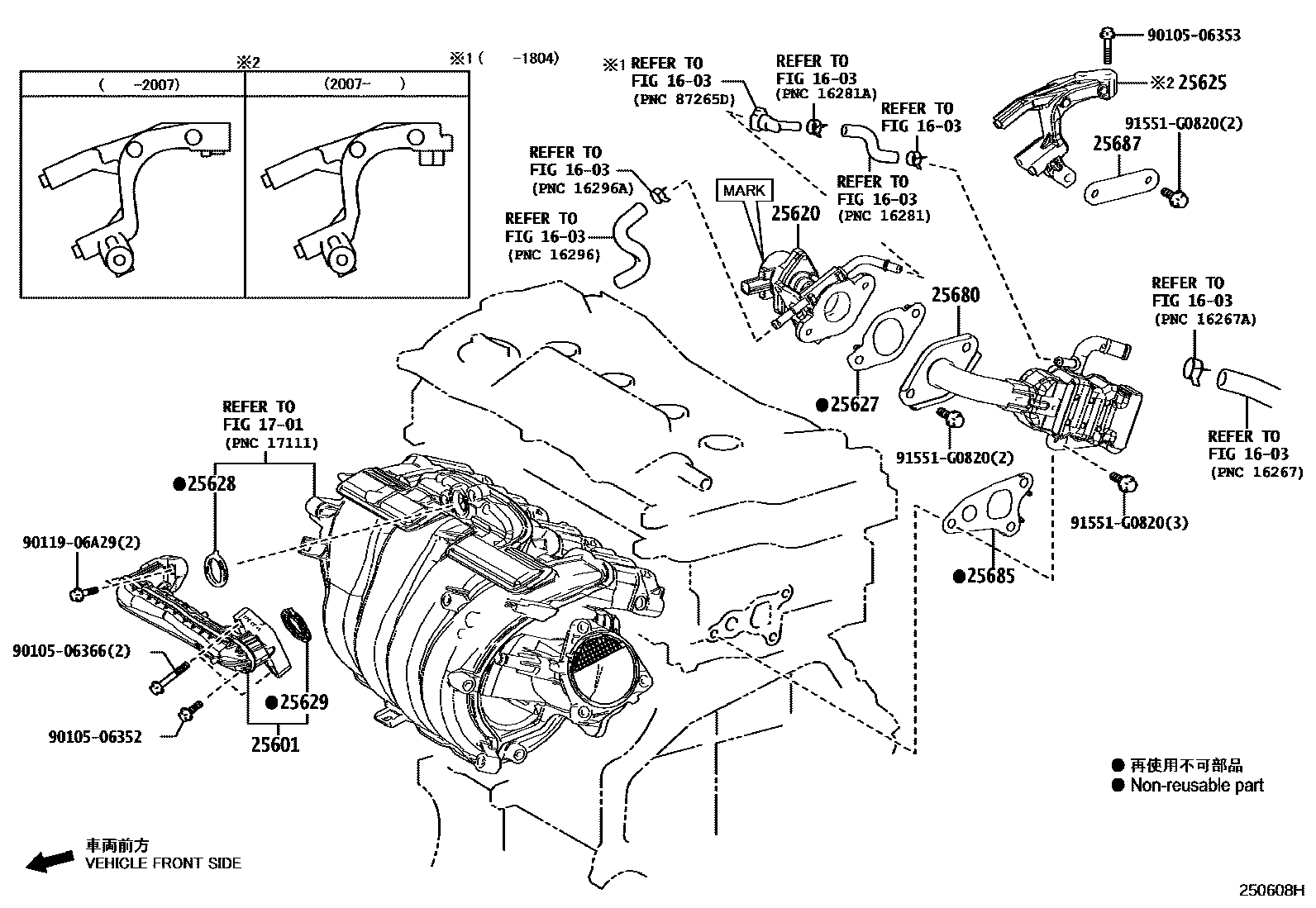

Parts diagram
1603RADIATOR & WATER OUTLET
→ Go to FIG 16-03
1701MANIFOLD
→ Go to FIG 17-01
25601PIPE SUB-ASSY, EGR, NO.1
25601-25011
25601-24030
25601-25030
25620VALVE ASSY, EGR
25620-25020
25620-25040
25620-24050
25620-24060
25625BRACKET, EGR VALVE
25625-25010
25625-25030
25627GASKET, EGR VALVE
25627-25010
25627-24010
25628GASKET, EGR INLET
25628-25010
25629GASKET, EGR VALVE ADAPTER
25629-25010
25680COOLER ASSY, EGR
25680-24010
25680-25010
25680-25030
25680-25060
25680-25070
25685GASKET, EGR COOLER, NO.1
25685-25011
25687BRACKET, EGR COOLER, NO.1
25687-25010
9010506352
90105-06352
9010506353
90105-06353
9010506366
90105-06366
9011906A29
90119-06A29
91551G0820
91551-G0820

16 parts on this diagram · 4 diagrams in section

EXHAUST GAS RECIRCULATION SYSTEM for Toyota CAMRY/HYBRID

This section contains 20 genuine Toyota parts for the EXHAUST GAS RECIRCULATION SYSTEM system of the Toyota CAMRY/HYBRID. Key components include: RADIATOR & WATER OUTLET, MANIFOLD, PIPE SUB-ASSY, EGR, NO.1, VALVE ASSY, EGR, BRACKET, EGR VALVE.
