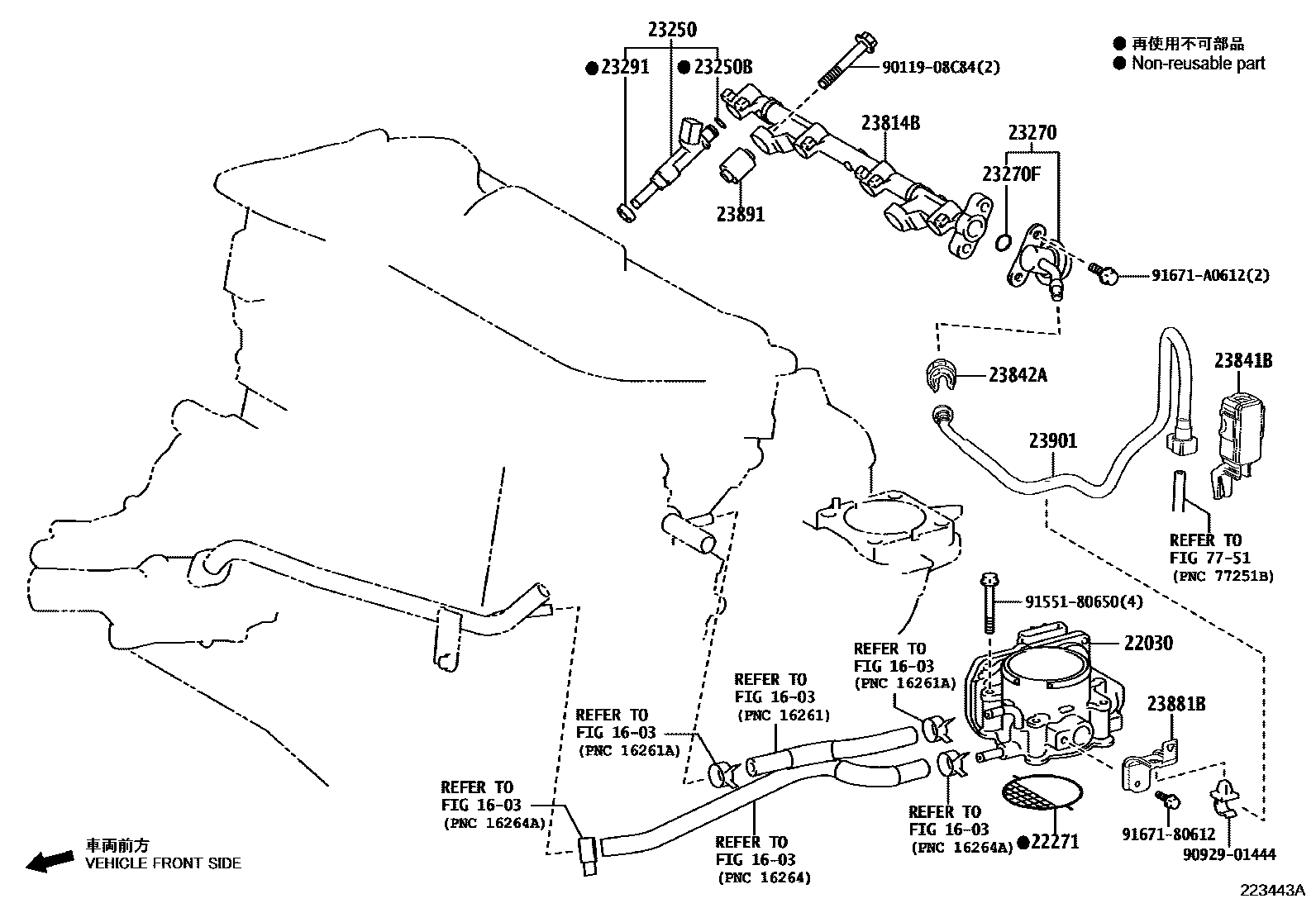

FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-24010iM20AFKS..MXVA71202102

main22030-25010iA25AFKS..AXVA70202102

main22030-25020iA25AFXS..AXVH7#202102

main22030-31090i2GRFKS..GSV70202102

main22030-36010i2ARFE..ASV70201709-202101

22271GASKET, THROTTLE BODY

main22271-24010iM20AFKS..MXVA71202102

main22271-25010iA25AFKS..AXVA70201712-202101

main22271-25020iA25AFXS..AXVH7#201712-202101

main22271-31040i2GRFKS..GSV70202102

main22271-36010i2ARFE..ASV70..GCC201712-202101

23250INJECTOR ASSY, FUEL

main23209-39175×4i2ARFE..ASV70201709-202101

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037×4iA25AFKS..AXVA70202008-202101

main90301-A0036×4iA25AFKS..AXVA70202006-202008

(L)

main90301-C0072×4i2ARFE..ASV70201908-202101

(L)

23270DAMPER ASSY, FUEL PRESSURE PULSATION

main23270-36031i2ARFE..ASV70201709-202101

23270FRING, O(FOR PULSATION DAMPER)

main90301-07037i2ARFE..ASV70201709-202101

23291INSULATOR, INJECTOR VIBRATION

main23291-28020×4iA25#..AXVA70,AXVH7#; M20AFKS..MXVA71202102

main23291-31030×6i2GRFKS..GSV70201712-202101

23814BPIPE, FUEL DELIVERY

main23814-24010iM20AFKS..MXVA71202102-202210

main23814-24011iM20AFKS..MXVA71202211

main23814-25010iA25#..AXVA70,AXVH7#201712-202101

main23814-25011iA25#..AXVA70,AXVH7#202211

main23814-36040i2ARFE..ASV70201709-202101

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-31070iA25#,2ARFE..ASV70,AXVA70,AXVH7#201709-202101

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23842-28010i2ARFE..ASV70201709-202101

23881BBRACKET, FUEL HOSE

main23881-31040i2GRFKS..GSV70201712-202101

main23881-36110i2ARFE..ASV70201709-202101

23891SPACER, FUEL DELIVERY

main23891-24010×2iM20AFKS..MXVA71202102

main23891-36010×2i2ARFE..ASV70201709-202101

23901TUBE SUB-ASSY, FUEL

main23901-25011iM20AFKS..MXVA71202102

main23901-25020iA25AFKS..AXVA70201712-201901

main23901-25021iA25AFKS..AXVA70202102

main23901-25030iA25AFXS..AXVH71201712-201901

main23901-25031iA25AFXS..AXVH7#..ARL,GCC202102

main23901-25051iA25AFXS..AXVH71..TAKR202102

main23901-36200i2ARFE..ASV70201709-201901

main23901-36201i2ARFE..ASV70201902-202101

main23901-25050iA25AFXS..AXVH71..TAKR201808-201901

KOREA SPEC

7751FUEL TANK & TUBE

→ Go to FIG 77-51

9011908C84

main90119-08C84

9092901444

main90929-01444

9155180650

main91551-80650

9167180612

main91671-80612

91671A0612

main91671-A0612

20 parts on this diagram · 8 diagrams in section
