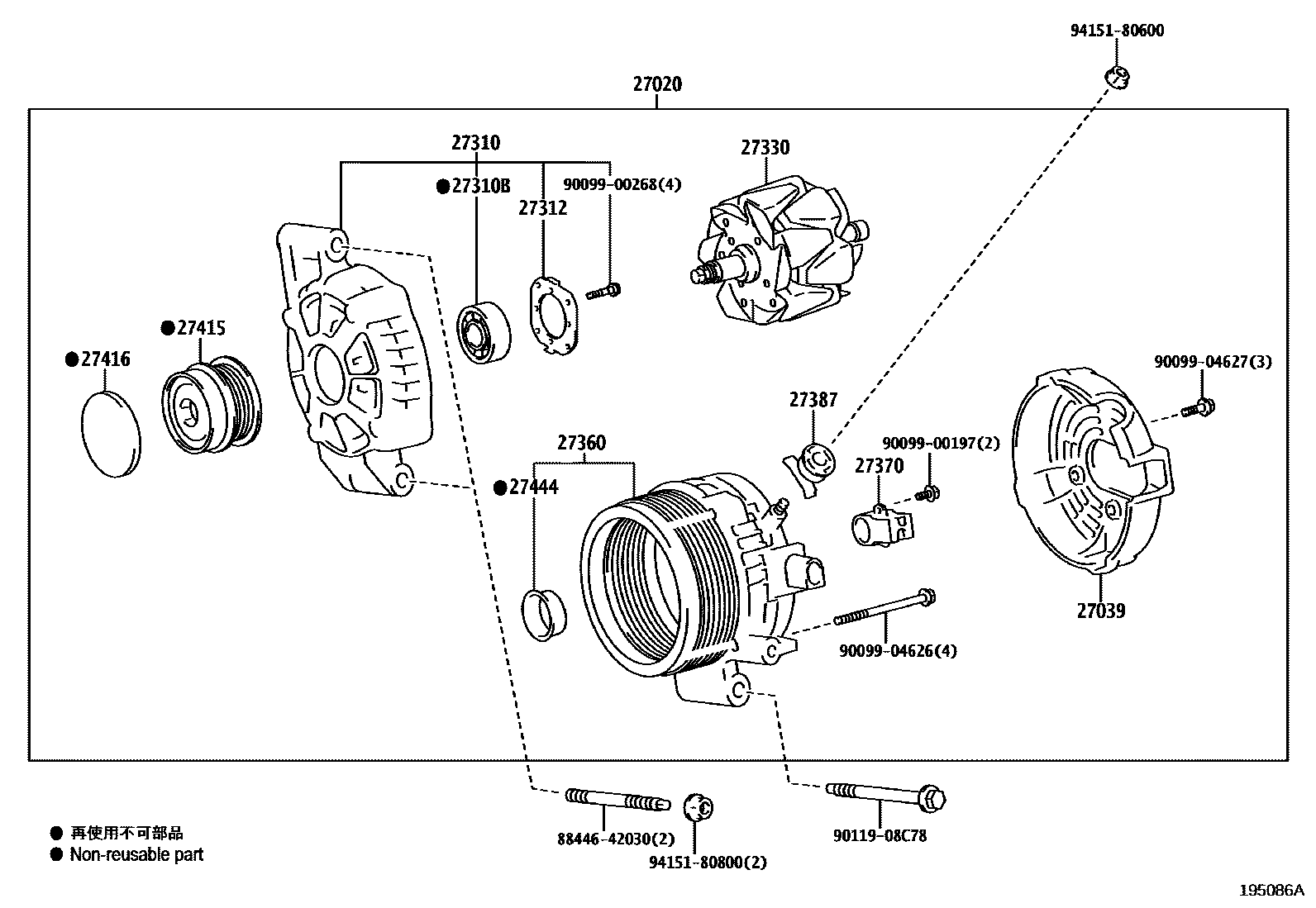

ALTERNATOR

0001 112V 100A 0003 112V 100A, 130A 0004 112V 100A, 130A 0005 112V 100A

27020ALTERNATOR ASSY

main27060-24030iM20AFKS..MXVA71202102-202303

12V 100A

main27060-24080iM20AFKS..MXVA71202303

12V 100A

main27060-25010iA25AFKS..AXVA70201712-202101

12V 100A

main27060-31360i2GRFKS..GSV70201712-202101

12V 100A

main27060-36140i2ARFE..ASV70201709-202101

12V 100A

27039COVER, ALTERNATOR REAR END

main27039-31650i2GRFKS..GSV70201907-202101

main27039-37220iA25AFKS,2ARFE..ASV70,AXVA70201709-202101

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-24150iA25AFKS..AXVA70201801-202101

main27310-25020iA25AFKS..AXVA70201712-201801

main27310-31590i2GRFKS..GSV70202102

main27310-36160i2ARFE..ASV70201709-202101

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10223iA25AFKS,2ARFE,2GRFKS..ASV70,AXVA70,GSV70201709-202101

27312PLATE, RETAINER

main27312-72100iA25AFKS,2ARFE,2GRFKS..ASV70,AXVA70,GSV70201709-202101

27330ROTOR ASSY, ALTERNATOR

main27330-47330iA25AFKS,2ARFE,2GRFKS..ASV70,AXVA70,GSV70201709-202101

27360COIL ASSY, ALTERNATOR

main27360-24150iA25AFKS,M20AFKS..AXVA70,MXVA71202102

main27360-25020iA25AFKS..AXVA70201712-201801

main27360-31590i2GRFKS..GSV70201712-201907

main27360-31650i2GRFKS..GSV70202102

main27360-36220i2ARFE..ASV70201709-202101

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-31220i2GRFKS..GSV70201709-201907

main27370-31650i2GRFKS..GSV70201907-202101

27387INSULATOR, TERMINAL

main27387-20130iA25AFKS,M20AFKS,2GRFKS..AXVA70,GSV70,MXVA71202102

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0P020i2GRFKS..GSV70202102

main27415-0W021i2ARFE..ASV70201709-202101

main27415-24010iM20AFKS..MXVA71202102-202303

main27415-F0010iA25AFKS..AXVA70202102

27416CAP, ALTERNATOR PULLEY

main27416-0W050iA25AFKS,2ARFE,2GRFKS..ASV70,AXVA70,GSV70201709-202101

main27416-47010iM20AFKS..MXVA71202102-202303

27444PACKING, ALTERNATOR BEARING COVER

main27444-21190iA25AFKS,2ARFE,2GRFKS..ASV70,AXVA70,GSV70201709-202101

8844642030BOLT, IDLE PULLEY

main88446-42030

9009900197

main90099-00197

9009900268

main90099-00268

9009904626

main90099-04626

9009904627

main90099-04627

9011908C78

main90119-08C78

9415180600

main94151-80600

9415180800

main94151-80800

20 parts on this diagram · 4 diagrams in section
