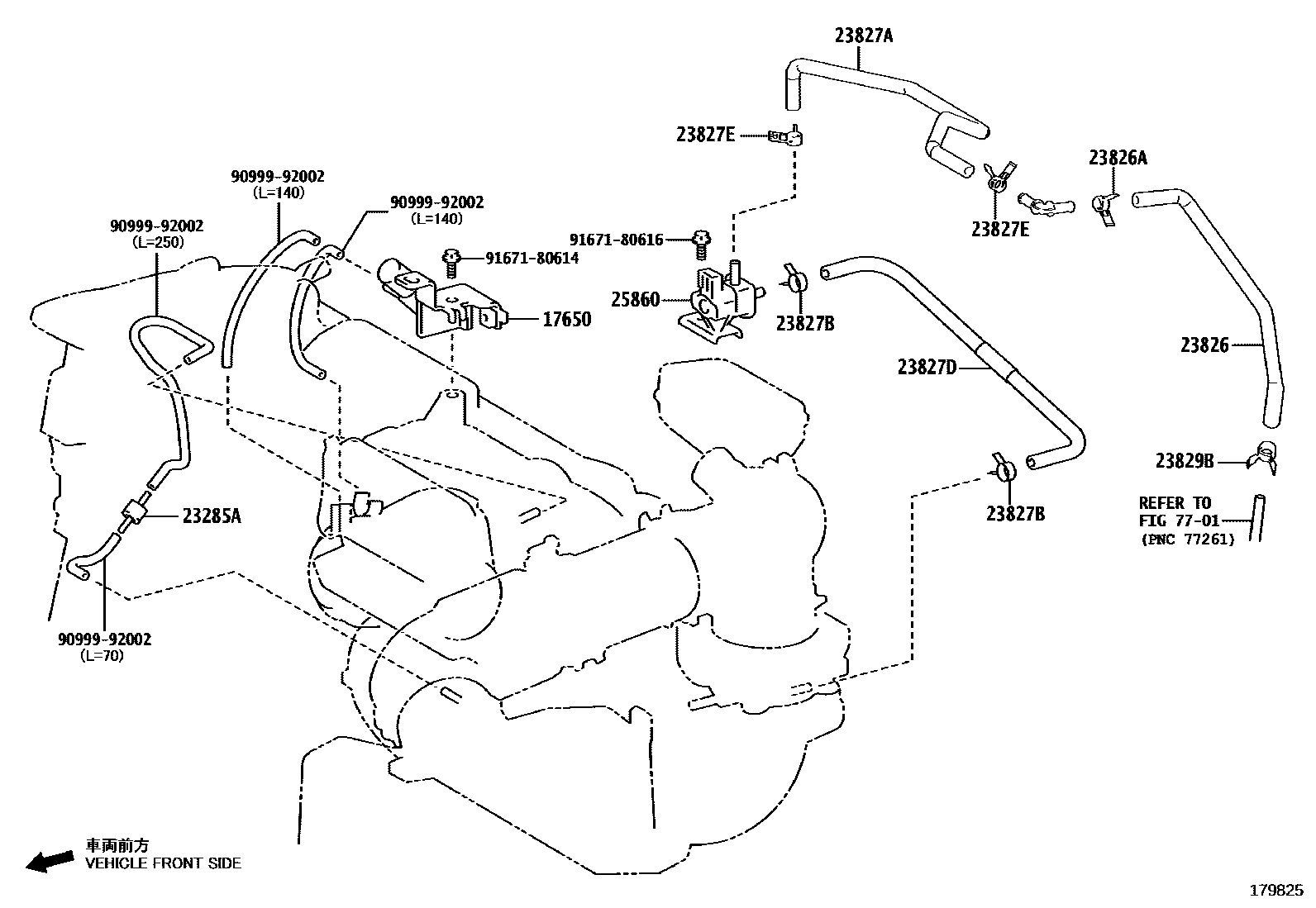

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

17650VALVE ASSY, VACUUM SWITCHING

main25860-36010i2ARFE..ASV70..GCC201712-202101

23285AVALVE, CHECK, NO.1

main90917-10065i2ARFE..ASV70..ARL,TAIW201709-202101

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-24250iM20AFKS..MXVA71202102

main23826-25020iA25AFKS..AXVA70201712-202101

main23826-25030iA25AFXS..AXVH7#..ARL,GCC202102

main23826-25190iA25AFXS..AXVH71..TAKR202102

main23826-31350i2GRFKS..GSV70201712-202101

main23826-36240i2ARFE..ASV70201709-202101

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-11004i2ARFE..ASV70201709-202101

main90466-13005i2GRFKS..GSV70; A25AFKS..AXVA70201712-202101

23827AHOSE, FUEL VAPOR FEED, NO.2

main23826-31410i2GRFKS..GSV70201712-202101

main23827-36190i2ARFE..ASV70201709-202101

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90466-13005×2i2ARFE..ASV70201709-202101

23827DHOSE, FUEL VAPOR FEED, NO.2

main23826-24020iM20AFKS..MXVA71202102

main23827-36130i2ARFE..ASV70201709-202101

23827ECLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90466-11004×2i2ARFE..ASV70201709-202101

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main90466-13005i2ARFE..ASV70201709-202101

main90466-15004iA25AFKS..AXVA70202102

main96136-41901iA25AFXS..AXVH7#; M20AFKS..MXVA71202102

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-24020iM20AFKS..MXVA71202102

main25860-25020iA25AFXS..AXVH7#..ARL,GCC202102

main25860-25040iA25AFKS..AXVA70202102

main25860-25070iA25AFXS..AXVH71..TAKR202102

main25860-31120i2GRFKS..GSV70201712-202101

NO.2

main25860-31160i2GRFKS..GSV70201712-202101

NO.1

main25860-36020i2ARFE..ASV70201709-202101

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9099992002

main90999-92002

9167180614

main91671-80614

9167180616

main91671-80616

14 parts on this diagram · 6 diagrams in section
