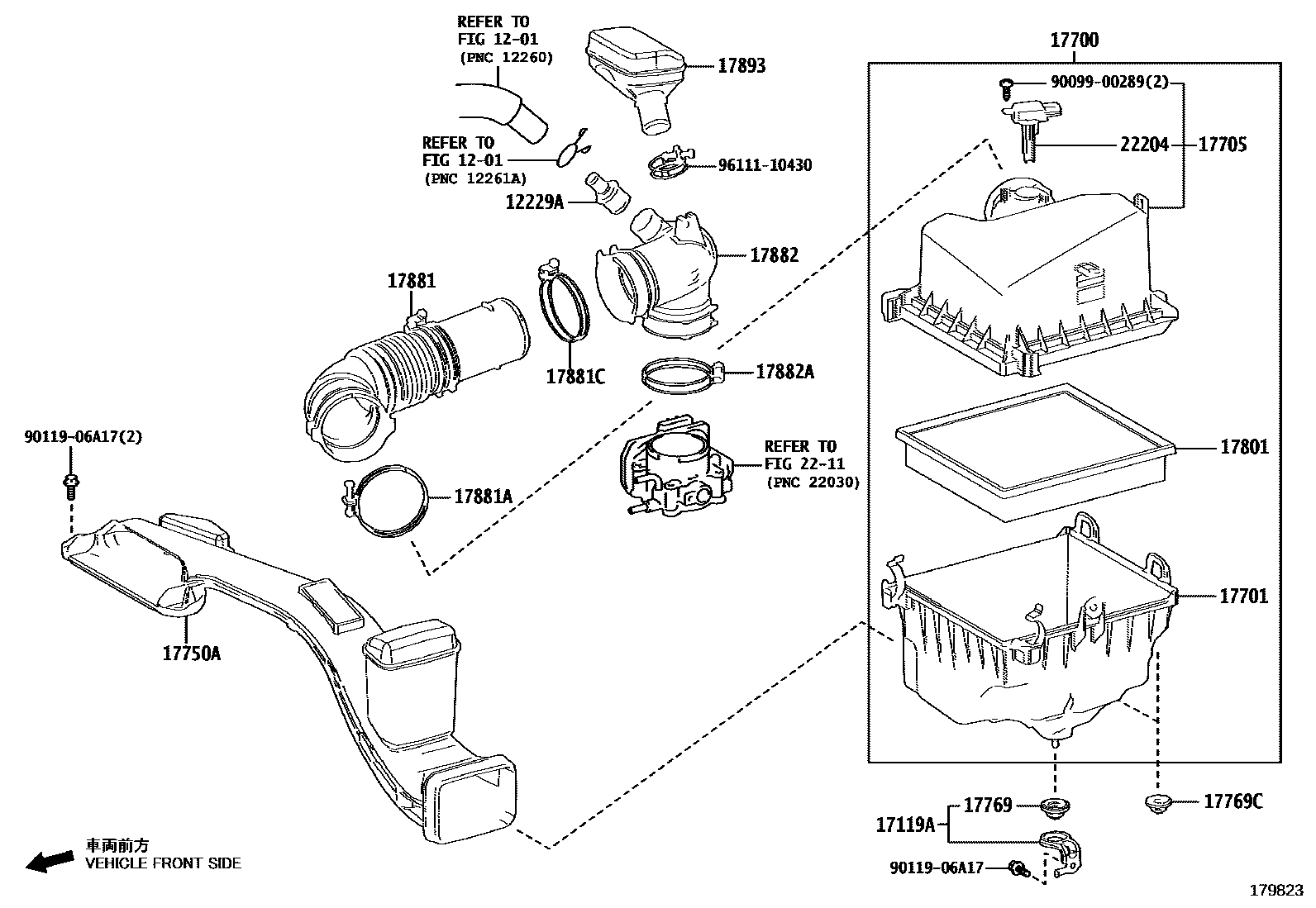

AIR CLEANER
1201
12229APIPE, VENTILATION
17119ABRACKET, AIR CLEANER
17705CAP SUB-ASSY, AIR CLEANER
17750AINLET ASSY, AIR CLEANER
17769SUPPORT, AIR CLEANER
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
17769CSUPPORT, AIR CLEANER, NO.1
17801ELEMENT SUB-ASSY, AIR CLEANER FILTER
17881HOSE, AIR CLEANER, NO.1
17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)
17881CCLAMP(FOR AIR CLEANER HOSE, NO.1)
17882HOSE, AIR CLEANER, NO.2
17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)
17893RESONATOR, INTAKE AIR
2211
22204METER SUB-ASSY, INTAKE AIR FLOW
(L),MARK 22204-0V020
(J)
9009900289
main90099-00289
9011906A17
main90119-06A17
9611110430
main96111-10430
21 parts on this diagram · 5 diagrams in section
