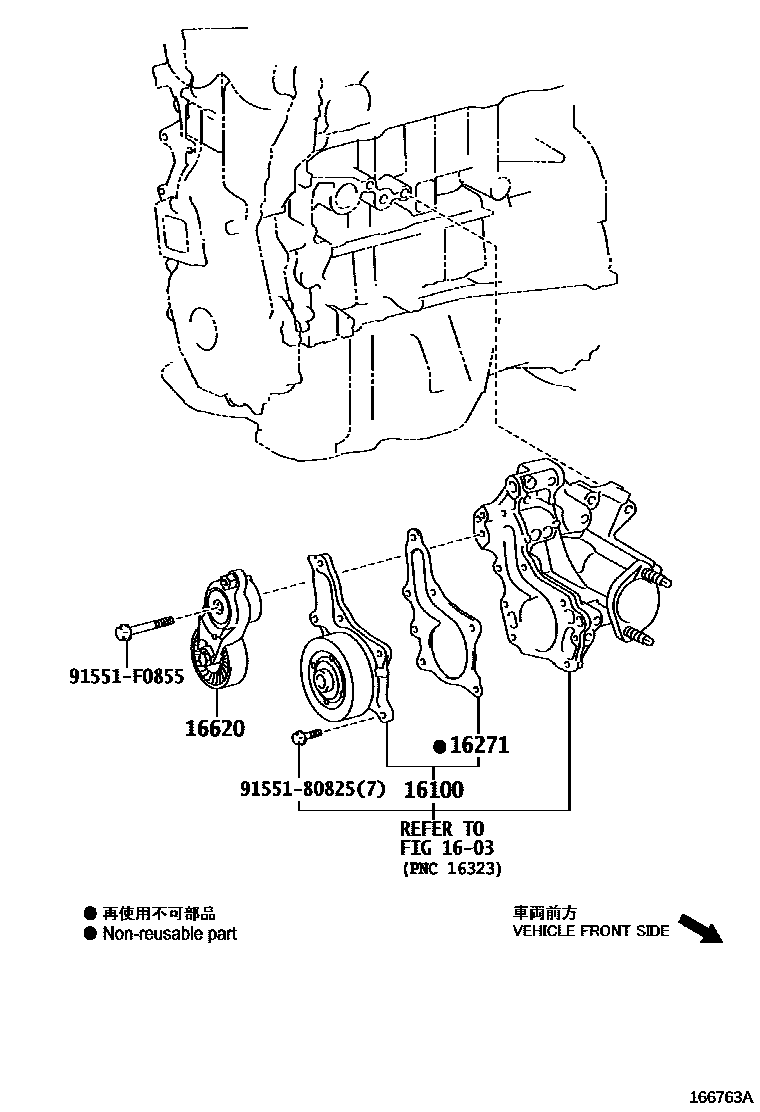

WATER PUMP

0001 1 0002 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-39515i2ARFE..ASV70..ARL,GCC201709-202101

main16100-39615i2GRFKS..GSV70201712-202004

main16100-39616i2GRFKS..GSV70202004-202101

16271GASKET, WATER PUMP

main16271-31050i2GRFKS..GSV70202102

main16271-36010i2ARFE..ASV70..ARL,GCC201709-202101

16620TENSIONER ASSY, V-RIBBED BELT

main16620-31090i2GRFKS..GSV70201712-202101

main16620-36012i2ARFE..ASV70..D,V;2ARFE..ASV70..GCC201709-201801

main16620-36013i2ARFE..ASV70201801-202101

9155180825

main91551-80825

91551F0855

main91551-F0855

6 parts on this diagram · 2 diagrams in section
