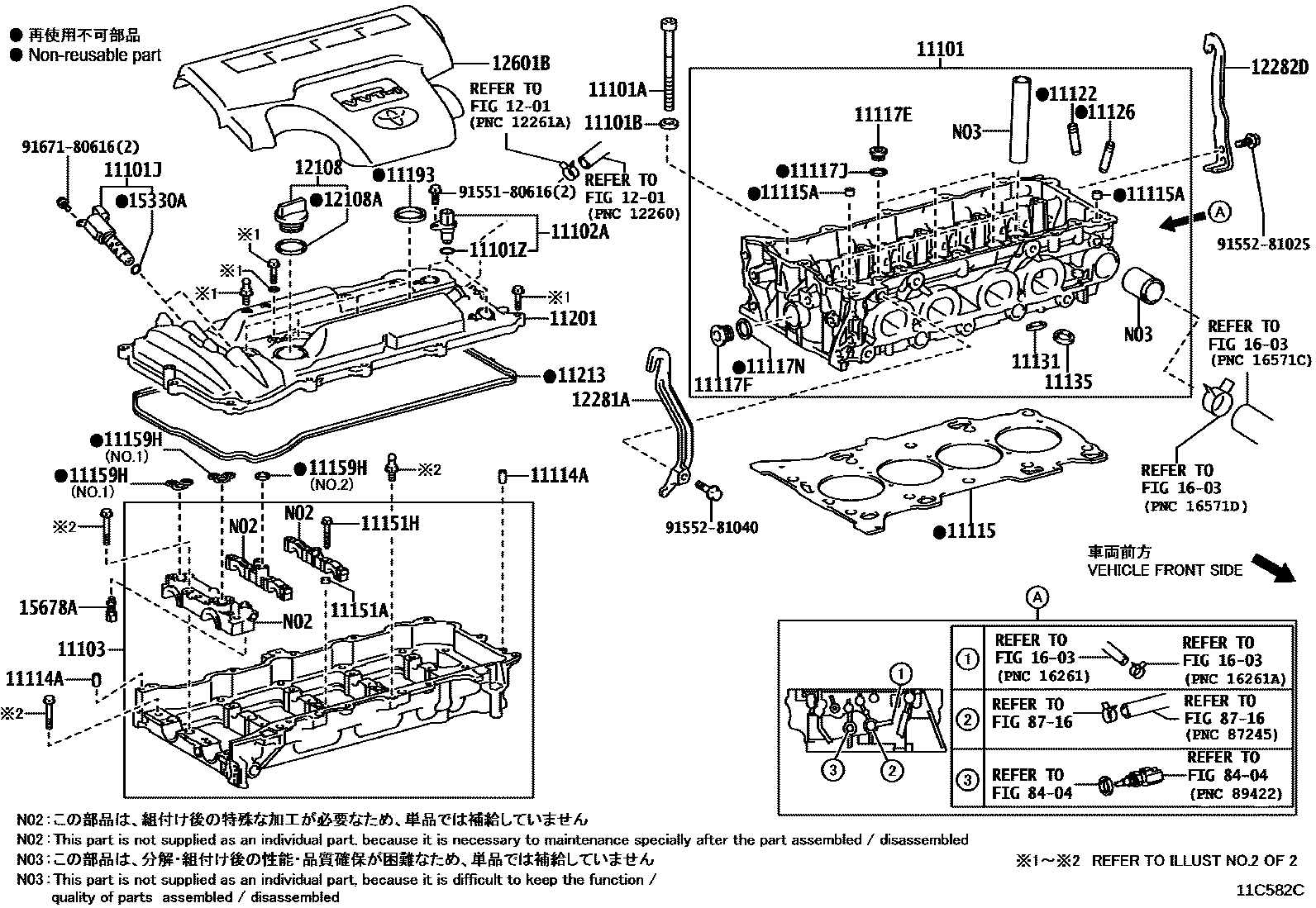

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
NO.1:REFER ILLUST.
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.2:REFER ILLUST.
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
11101ZO RING, CAM POSITION SENSOR
11102ASENSOR, CAMSHAFT POSITION
11114APIN, STRAIGHT
L=13.8,OD=5.0
L=14,OD=6
11115GASKET, CYLINDER HEAD
11115APIN, RING
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
(J)
(L)
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
NO.2
NO.1
11117NGASKET(FOR CYLINDER HEAD SCREW PLUG NO.2)
11122BUSH, INTAKE VALVE GUIDE
STD
STD
O/S 0.05,*524
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
O/S 0.05
11131SEAT, INTAKE VALVE
STD
STD
O/S 0.03
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
STD
STD
STD
O/S 0.03
O/S 0.03
O/S 0.03
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=8,OD=11
L=12.5,OD=8
11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
11193GASKET, SPARK PLUG TUBE
1201
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12281AHANGER, ENGINE, NO.1
12282DHANGER, ENGINE, NO.2
15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
15678AFILTER, OIL CONTROL VALVE
1603
8404
8716
9155180616
main91551-80616
9155281025
main91552-81025
9155281040
main91552-81040
9167180616
main91671-80616
40 parts on this diagram · 10 diagrams in section
