ENGINE OVERHAUL GASKET KIT

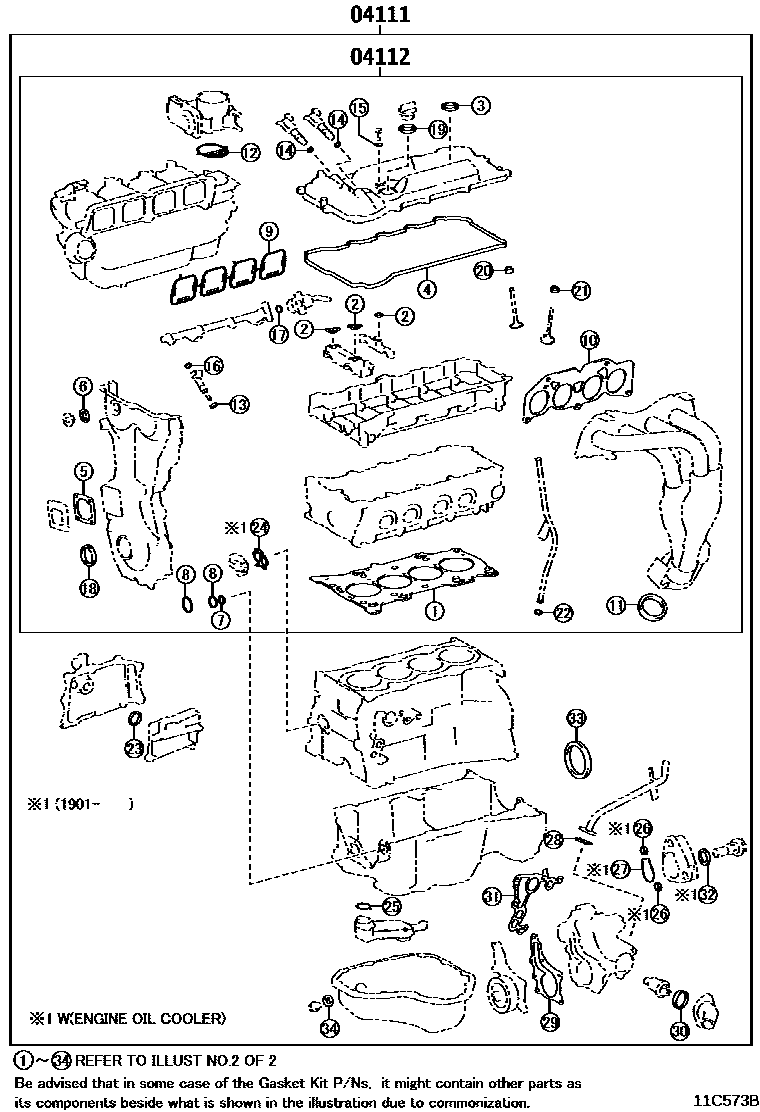

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-24170i202102-202107

main04111-24171i202107

main04111-25210i201808-202008

main04111-25230i201712-202008

main04111-25240i201712-202008

main04111-25250i202008-202101

main04111-25251i202108

main04111-25260i202008-202101

main04111-25261i202108

main04111-25290i202008-202101

main04111-31C51i201712-201806

main04111-31C52i201806-202101

main04111-31C53i202107-202112

main04111-31C54i202112

main04111-36136i201712-202101

main04111-36138i201709-202101

main04111-36147i201810-202101

04112GASKET KIT, ENGINE VALVE GRIND

main04112-24090i202102-202107

main04112-24091i202107

main04112-25150i201808-202008

main04112-25170i201712-202101

main04112-25171i202108

main04112-25180i201712-202101

main04112-25181i202102

main04112-31891i201712-201806

main04112-31892i201806-202101

main04112-31893i202112

main04112-36115i201709-201901

main04112-36116i201901-202101

main04112-36124i201712-201901

main04112-36125i201901-202101

2 parts on this diagram · 10 diagrams in section
