SHORT BLOCK ASSEMBLY

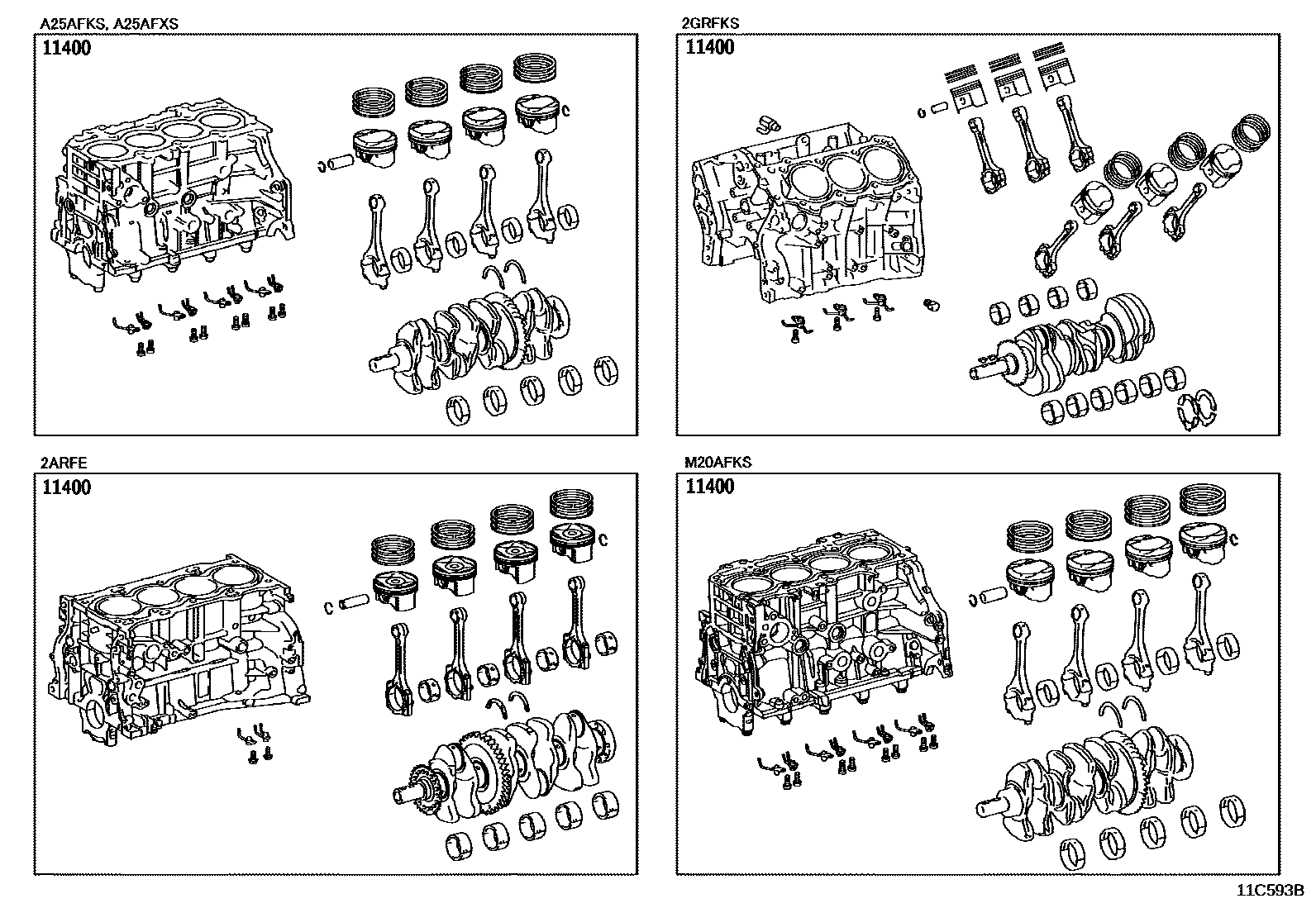

Parts diagram

11400BLOCK ASSY, SHORT

main11400-24080i202102

main11400-25050i201712-201803

main11400-25051i202102-202212

main11400-25070i201712-201803

main11400-25120i201808-202101

main11400-25130i202102-202204

W/O(PNC 12211)

main11400-2E010i202204

W(PNC 12211)

main11400-2E020i202301

main11400-31420i201712-202101

main11400-36061i201709-202101

1 parts on this diagram · 1 diagram in section
